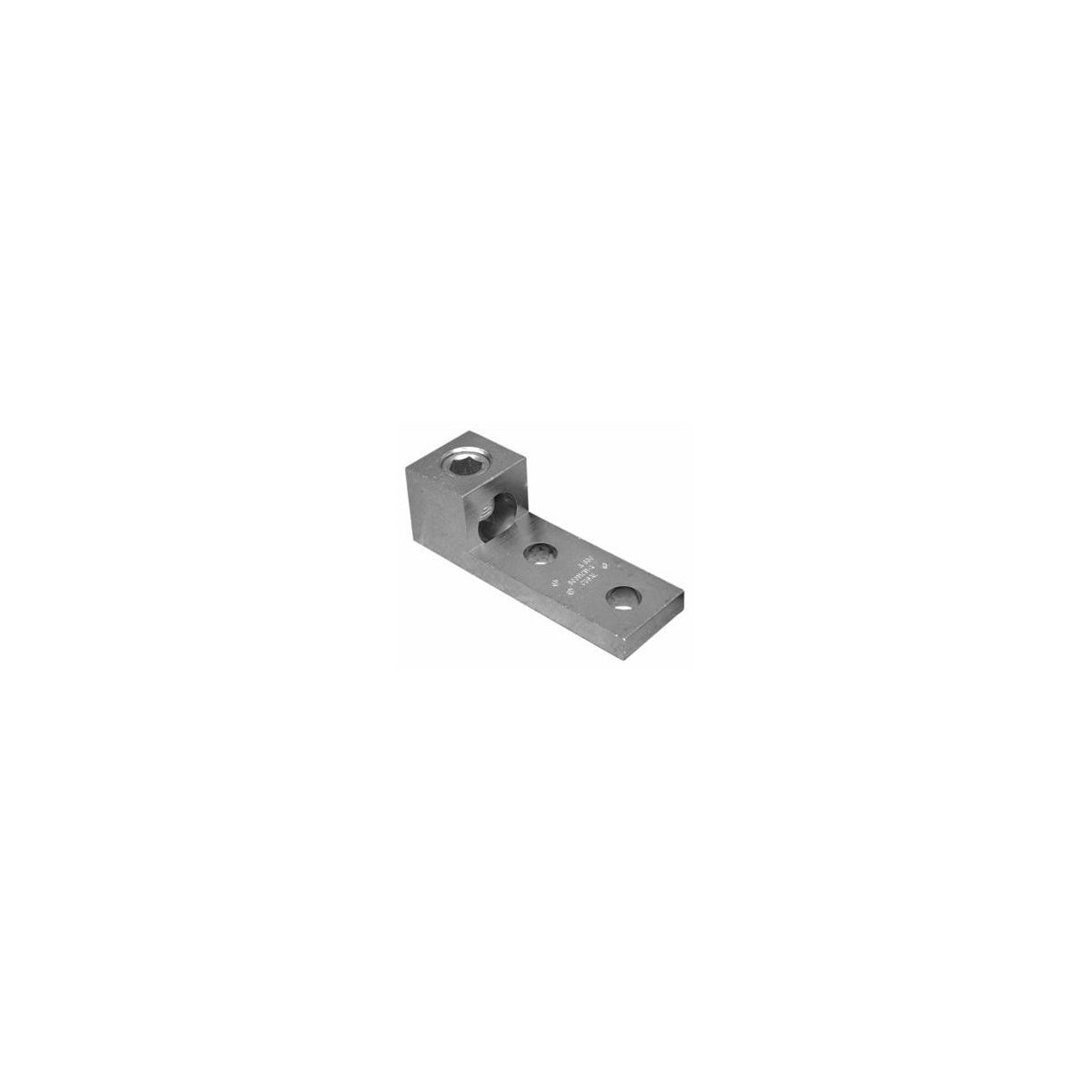

Aluminum Mechanical Lugs One Conductor - Two Hole Mount 350MCM-#6 Awg

This aluminum mechanical lug is designed for secure and corrosion-resistant electrical connections, suitable for use in wire and cable installations. It supports a single conductor with a two-hole mount configuration, making it ideal for electrical distributors, lighting solutions, and switchgear suppliers requiring reliable conductor termination.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Conductor Range: 350MCM to #6 AWG
• Mounting: Two Hole Mount, NEMA Standard 1-3/4‚Äù Center Hole Spacing
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• UL Listing: UL486B AL9CU Listed
• Weight: 0.1690 lbs
• Manufacturer Part #: 90732

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum conductivity and durability
• Dual rated for both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and provide corrosion protection
• Assembly can be completed using only a screwdriver or Allen wrench
• Connectors are reusable for maintenance and flexibility

Downloads & Links

• Spec Sheet
