Morris Products
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 1000MCM-500 MCM
SKU: #277020
Part: #90736
UPC: 601986907361
Morris Products
Aluminum Mechanical Lugs One Conductor - Two Hole Mount 1000MCM-500 MCM
SKU: #277020
Part: #90736
UPC: 601986907361
Description

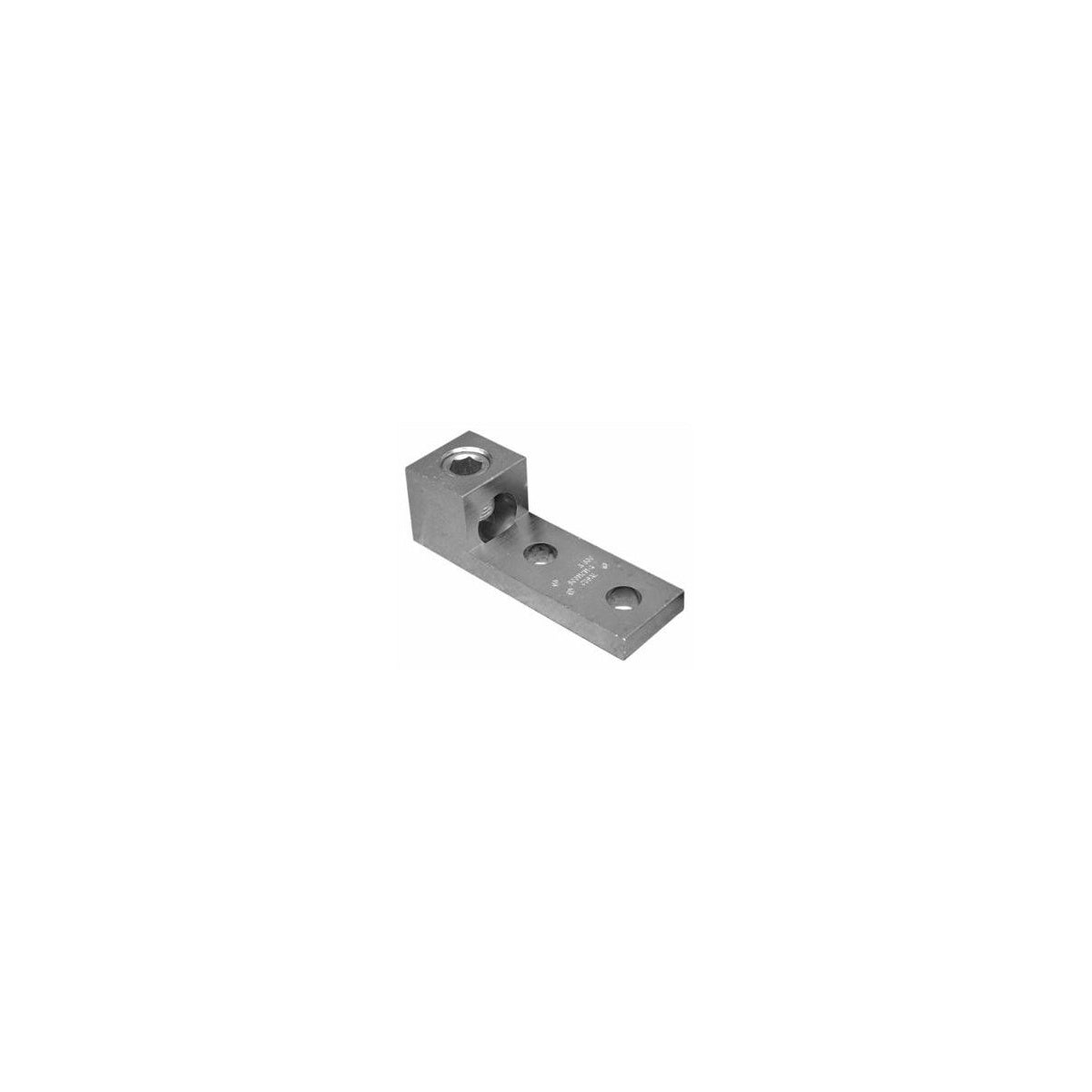

Aluminum Mechanical Lugs One Conductor - Two Hole Mount 1000MCM-500 MCM
This aluminum mechanical lug is designed for secure electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable conductivity and corrosion resistance. The lug accommodates one conductor with a two-hole mount configuration, supporting wire sizes from 500 MCM to 1000 MCM.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Wire Range: 1000MCM-500 MCM
- Mount Type: Two Hole Mount
- Rated Voltage: 600V
- Temperature Rating: 194°F (90°C)
- UL Listing: UL486B AL9CU
- Product Weight: 0.8250 lbs
- Center Hole Spacing: 1-3/4 inches (NEMA Standard)
Features
- Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated to reduce contact resistance and protect against corrosion
- Assembly can be completed with a screwdriver or Allen wrench
- Connectors are reusable
