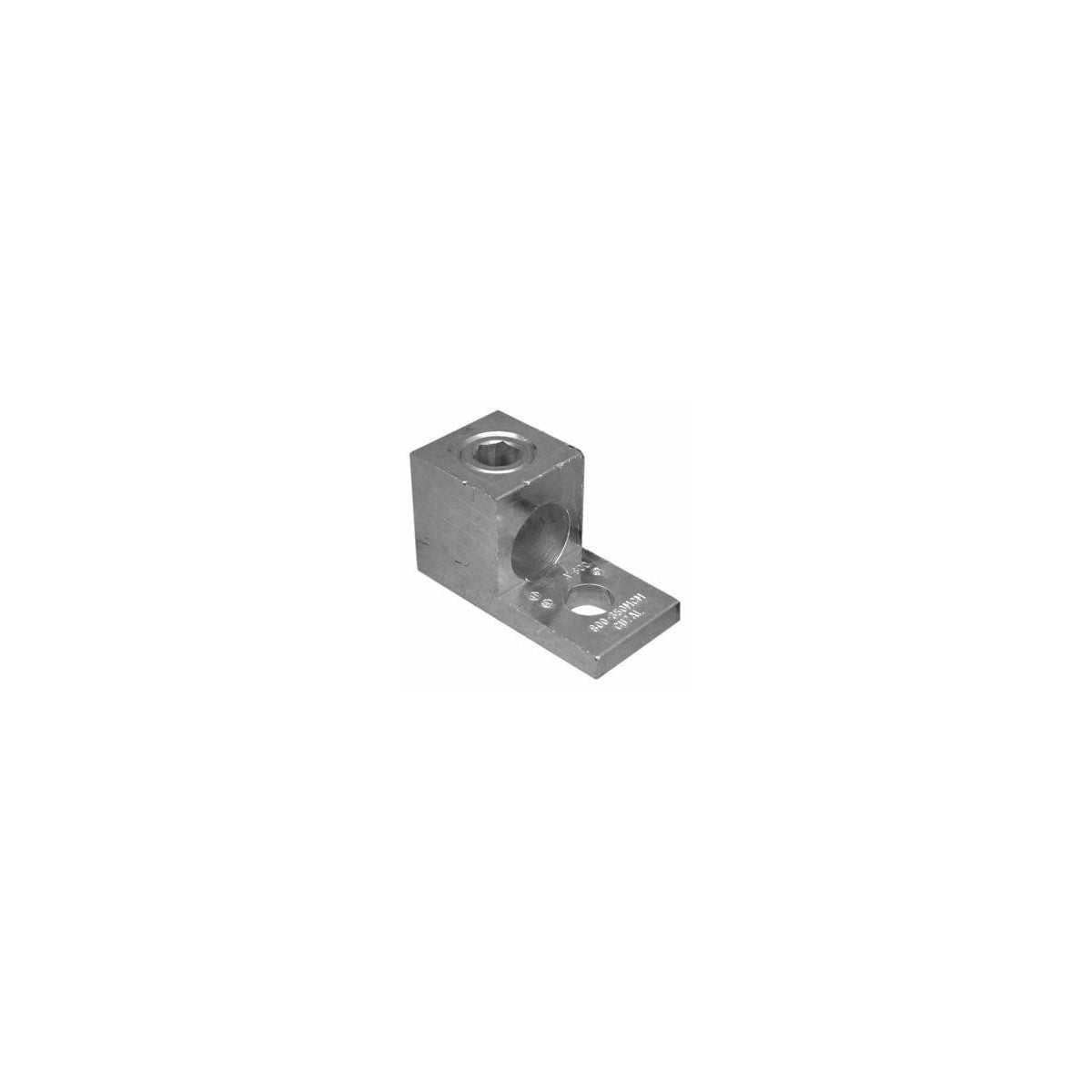

Aluminum Mechanical Lugs One Conductor - One Hole Mount 800MCM-300MCM

This aluminum mechanical lug is designed for secure and reliable electrical connections in wire and cable installations. Suitable for use by electrical distributors and switchgear suppliers, it supports one conductor with a one-hole mount configuration. The lug is dual rated for both copper and aluminum conductors, making it versatile for various electrical applications.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 800MCM-300MCM
• Mount Type: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Product Weight: 0.3660 lbs
• Manufacturer Part #: 90728
• UPC: 601986907286

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for use with both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly can be performed using only a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4‚Äù center hole spacing
• UL486B listed AL9CU certified

Downloads & Links

• Spec Sheet
