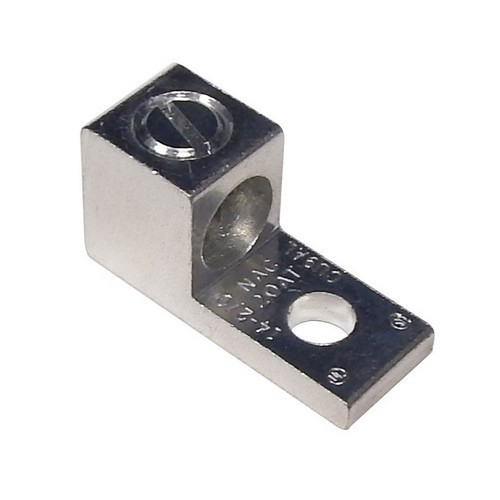

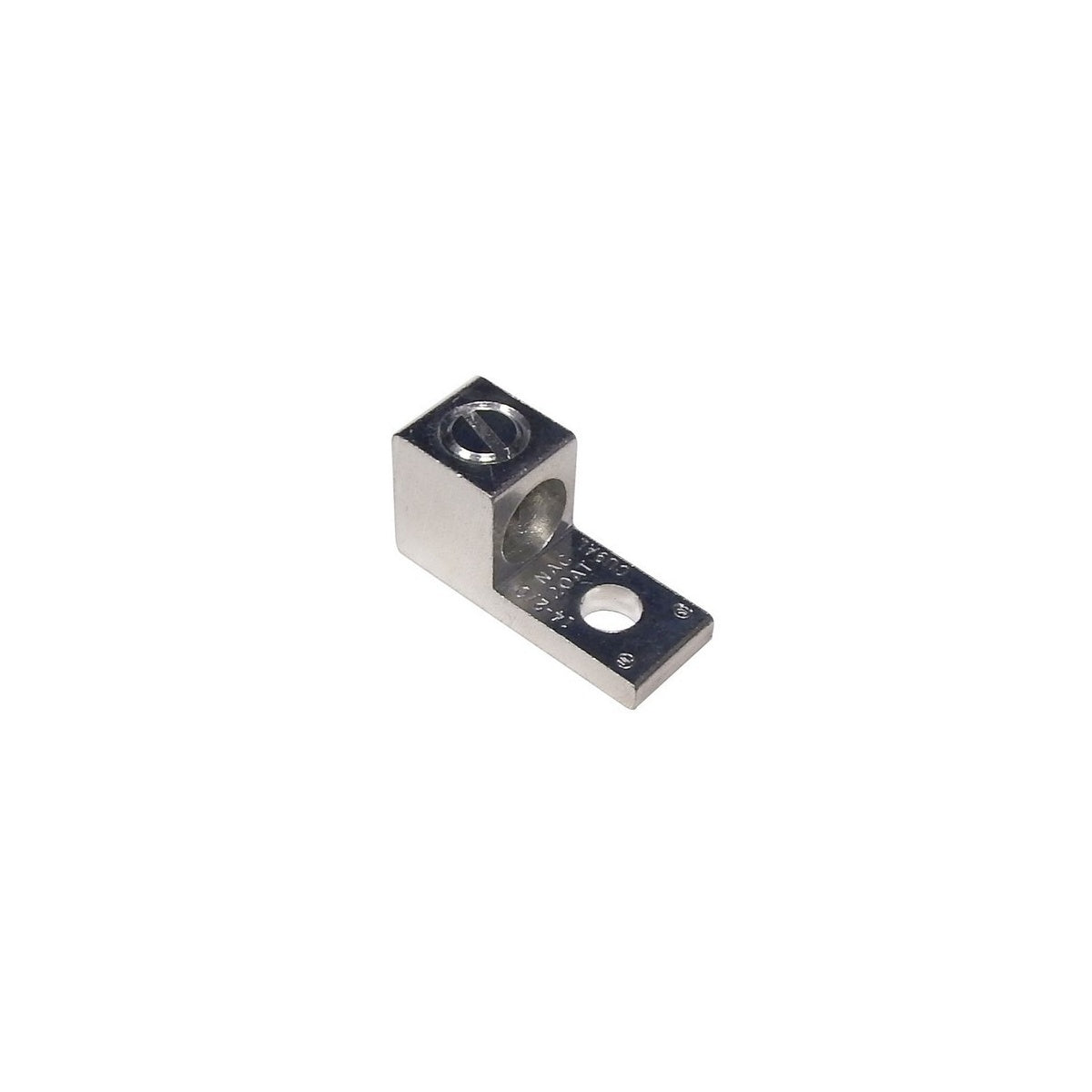

Aluminum Mechanical Lugs One Conductor - One Hole Mount #6-#14 Awg

This aluminum mechanical lug is designed for secure electrical connections of one conductor, compatible with wire sizes #6 through #14 AWG. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures both maximum conductivity and durability. Suitable for use by electrical distributors and switchgear suppliers, this lug supports dual-rated connections for both copper and aluminum conductors, making it versatile for various lighting solutions and wire and cable applications.

Specifications

• Material: Aluminum
• Wire Range: #6 to #14 AWG
• Mount Type: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Center Hole Spacing: 1-3/4” (NEMA Standard)
• Product Weight: 0.0100 lbs

Features

• Manufactured from high-strength 6061-T6 aluminum alloy for strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Reusable connectors
• UL486B Listed AL9CU compliant
