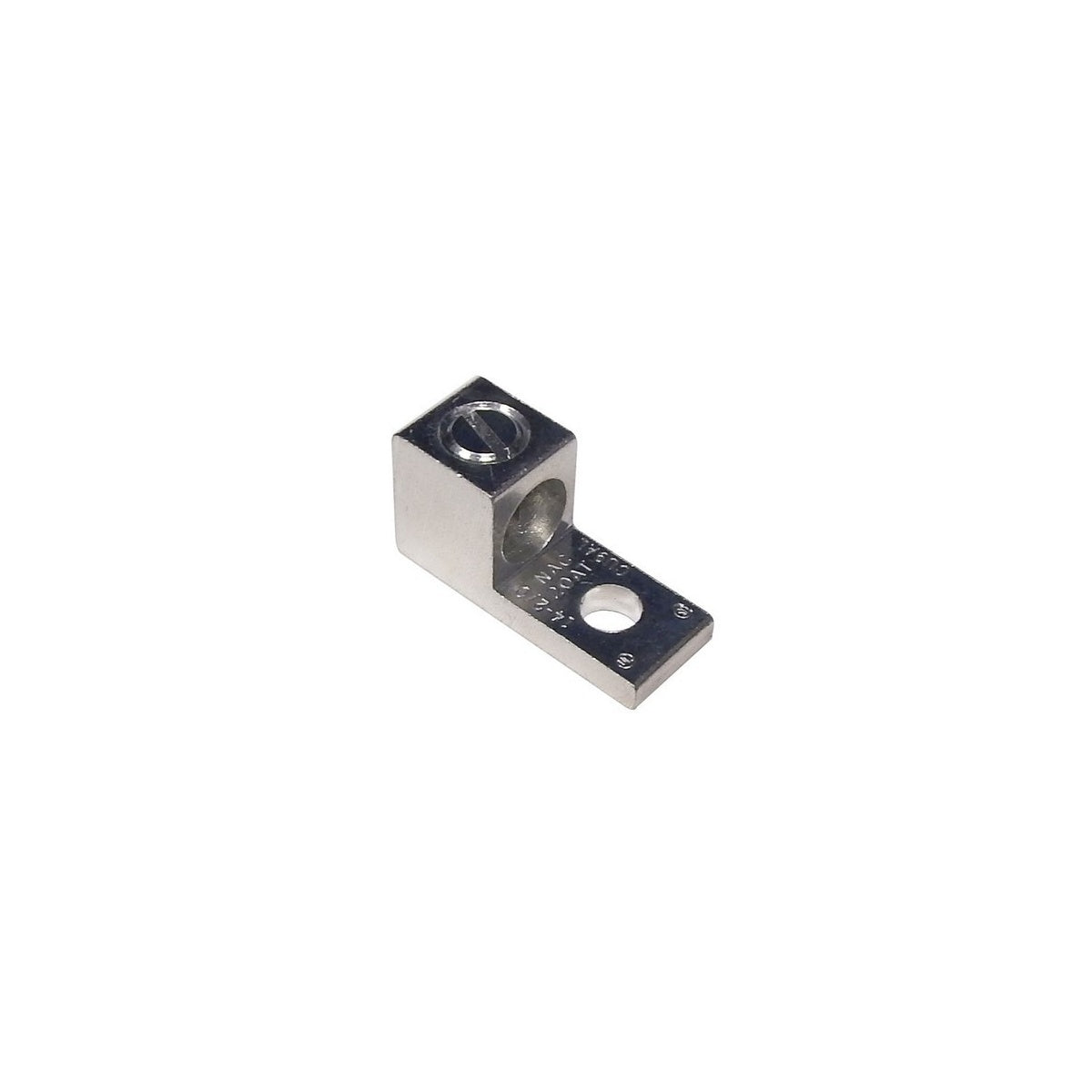

Aluminum Mechanical Lugs One Conductor - One Hole Mount #6-#14 Awg

This aluminum mechanical lug is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength 6061-T6 aluminum alloy, it is dual-rated for both copper and aluminum conductors, making it suitable for a variety of electrical distributor and switchgear supplier needs. The lug features a one-hole mount design compatible with wire sizes from #6 to #14 AWG and is reusable for efficient installation and maintenance.

Specifications

• Material: 6061-T6 Aluminum
• Conductor Range: #6-#14 AWG
• Mount Type: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• UL Listing: UL486B AL9CU
• Manufacturer Part #: 90712
• Product Weight: 0.0100 lbs

Features

• Manufactured from high-strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly can be completed with a screwdriver or Allen wrench
• Reusable connector design
• NEMA standard 1-3/4‚Äù center hole spacing
• Slotted screws for secure tightening

Downloads & Links

• Spec Sheet
