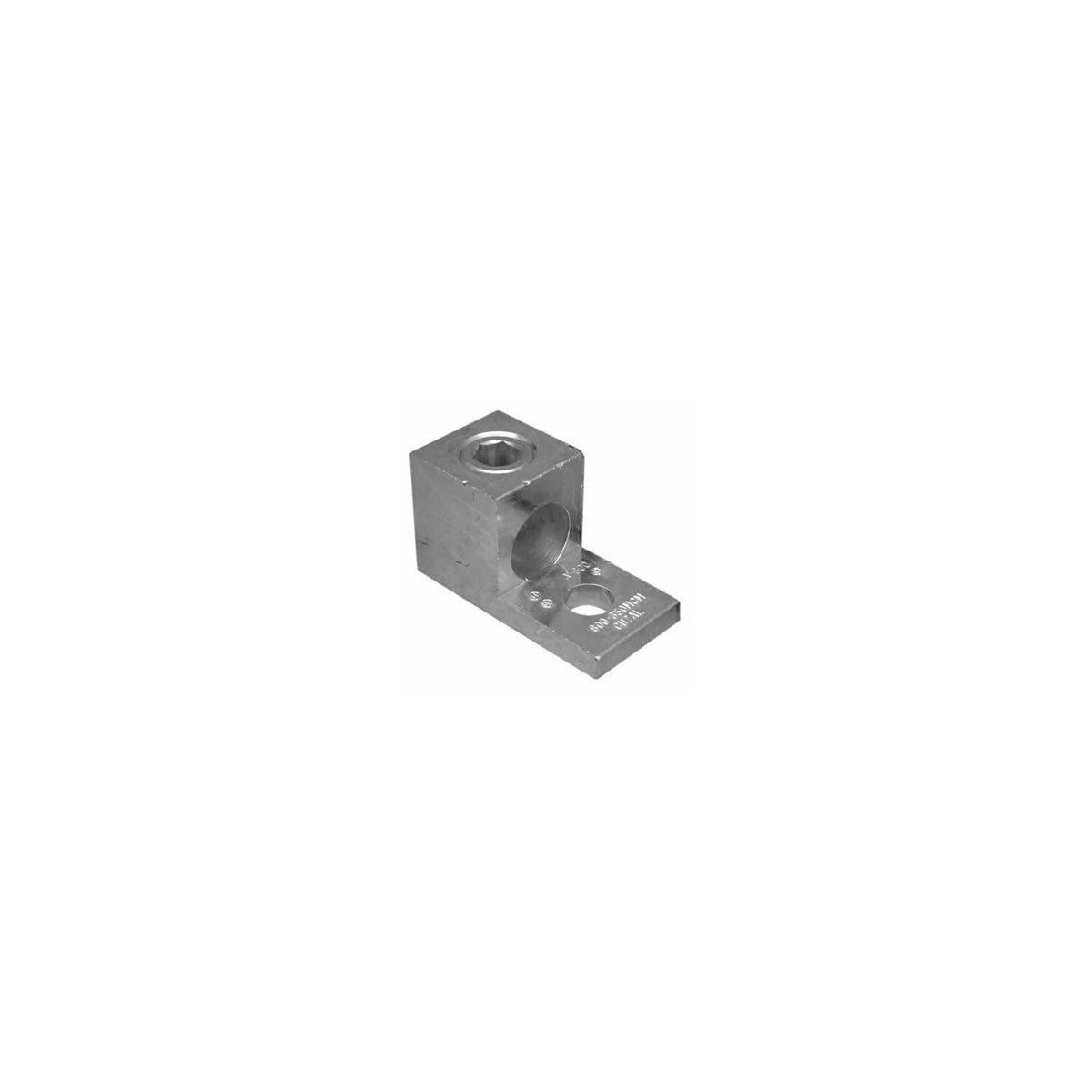

Aluminum Mechanical Lugs One Conductor - One Hole Mount 350MCM-#6 Awg

This aluminum mechanical lug is designed for secure, dual-rated connections of copper and aluminum conductors ranging from 350MCM to #6 AWG. It is suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring reliable conductor termination. The lug features a one-hole mount for straightforward installation and is reusable for maintenance and reconfiguration.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Conductor Range: 350MCM to #6 AWG
• Mounting: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Weight: 0.1220 lbs
• Manufacturer Part #: 90722

Features

• Manufactured from high-strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Reusable connectors
• NEMA standard 1-3/4” center hole spacing
• UL486B Listed AL9CU certified
