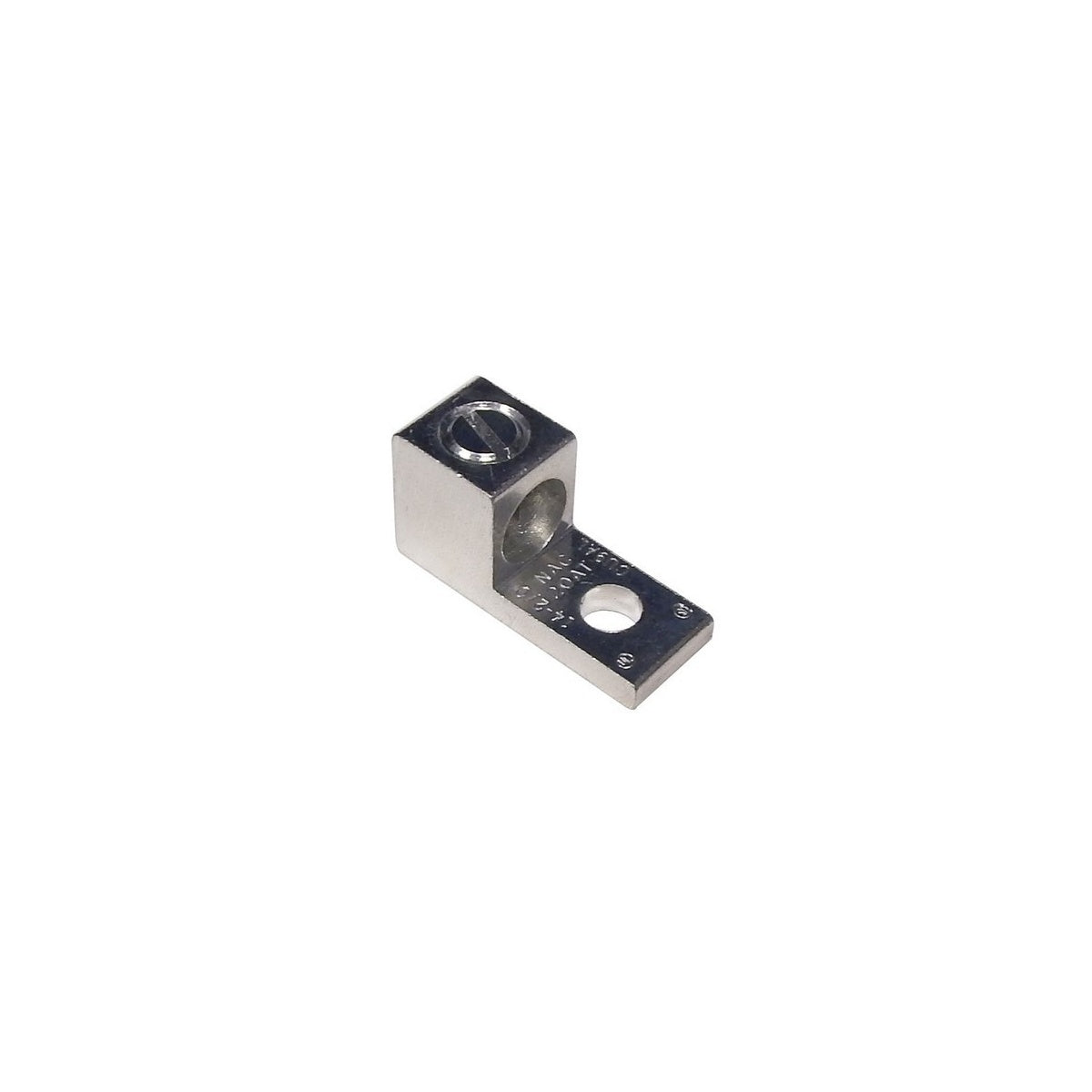

Aluminum Mechanical Lugs One Conductor - One Hole Mount 2/0-#14 Awg

This aluminum mechanical lug is designed for reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports a single conductor with a wire range from 2/0 to #14 AWG. The lug is dual-rated for both copper and aluminum conductors, making it versatile for various lighting solutions and electrical distribution systems.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 2/0 to #14 AWG
• Mounting: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Center Hole Spacing: NEMA Standard 1-3/4‚Äù
• Product Weight: 0.0470 lbs
• Manufacturer Part #: 90718

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly can be completed using only a screwdriver or Allen wrench
• Reusable connectors
• UL486B Listed AL9CU certified
• Slotted screws for secure fastening

Downloads & Links

• Spec Sheet
