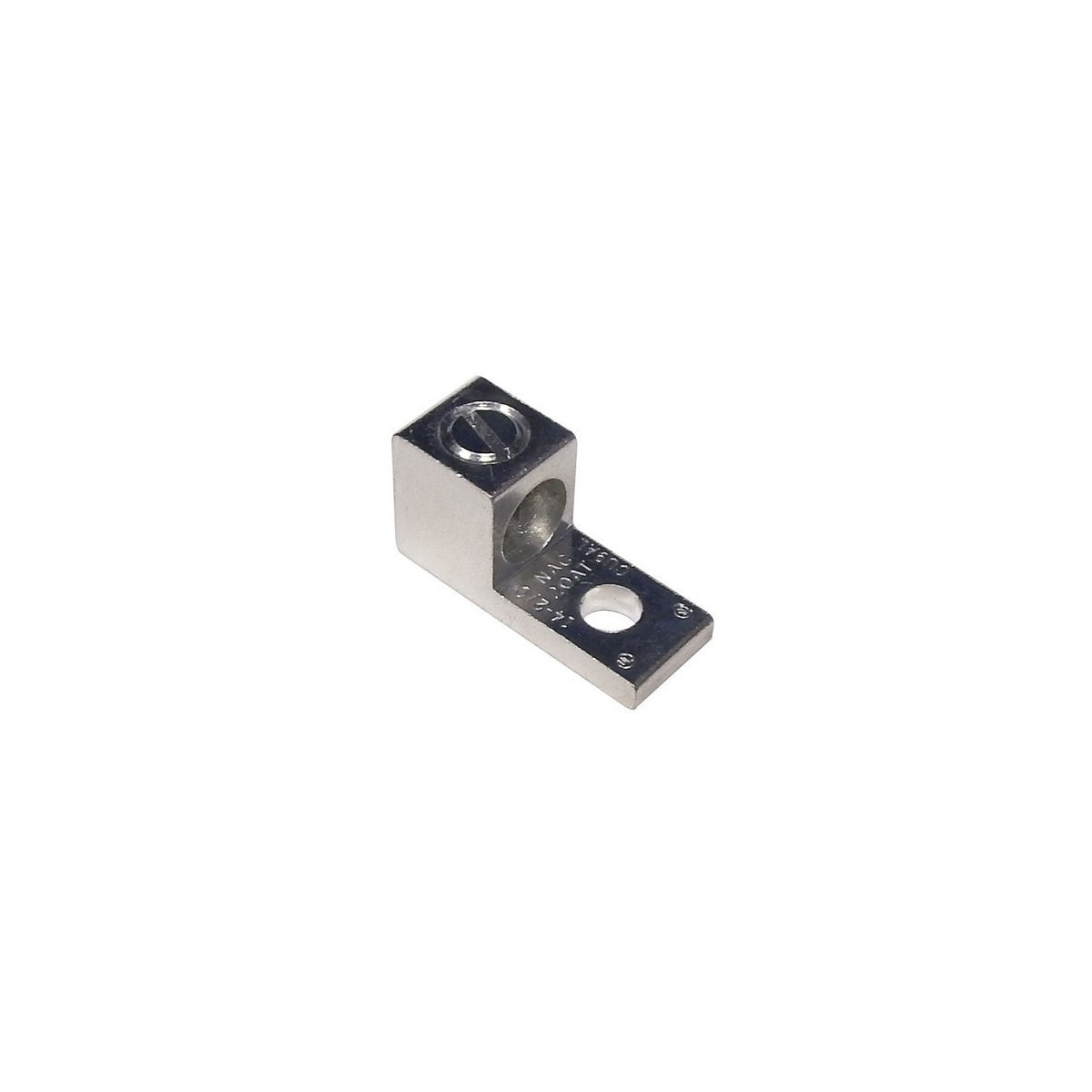

Aluminum Mechanical Lugs One Conductor - One Hole Mount 1/0-#14 Awg

This aluminum mechanical lug is designed for secure electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports both copper and aluminum conductors, providing reliable conductivity and corrosion resistance in lighting solutions and general electrical installations.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Conductor Range: 1/0 to #14 AWG
• Mounting: One Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Weight: 0.0380 lbs
• UL Listing: UL486B AL9CU
• Manufacturer Part #: 90716

Features

• Dual rated for both copper and aluminum conductors
• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4‚Äù center hole spacing
• Slotted screws for secure tightening

Downloads & Links

• Spec Sheet
