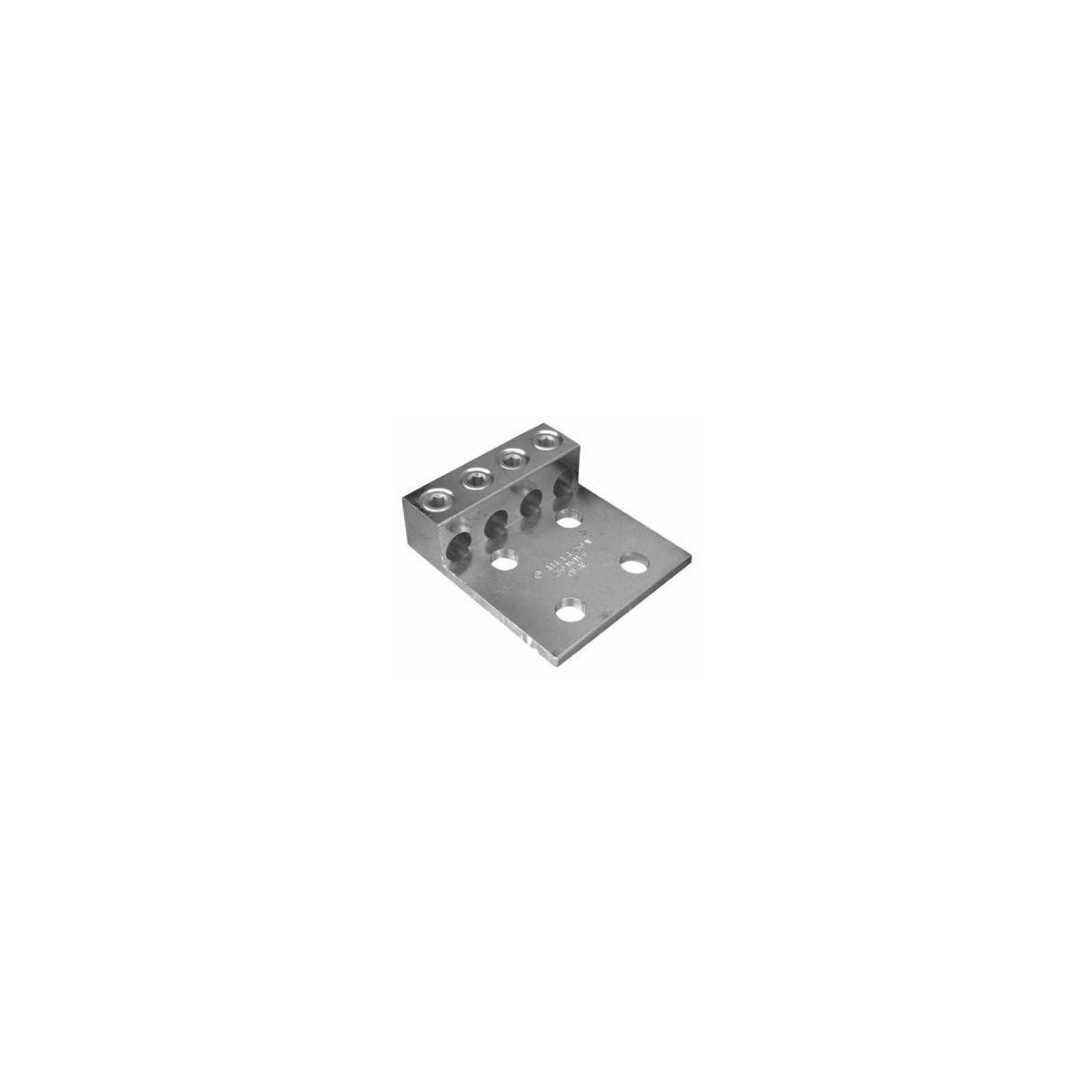

Aluminum Mechanical Lugs Four Conductors - Four Hole Mount 350MCM-#6 Awg

This aluminum mechanical lug is designed for secure and flexible electrical connections in wire and cable installations. Suitable for use by electrical distributors and switchgear suppliers, it accommodates four conductors with a four-hole mounting configuration. The lug is crafted to provide reliable conductivity and mechanical strength in lighting solutions and general electrical applications.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Conductor Range: 350MCM to #6 AWG
• Mounting: Four Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Weight: 1.36 lbs
• UL Listing: UL486B AL9CU
• Center Hole Spacing: 1-3/4 inches (NEMA Standard)
• Manufacturer Part Number: 90874

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly requires only a screwdriver or Allen wrench
• Connectors are reusable
