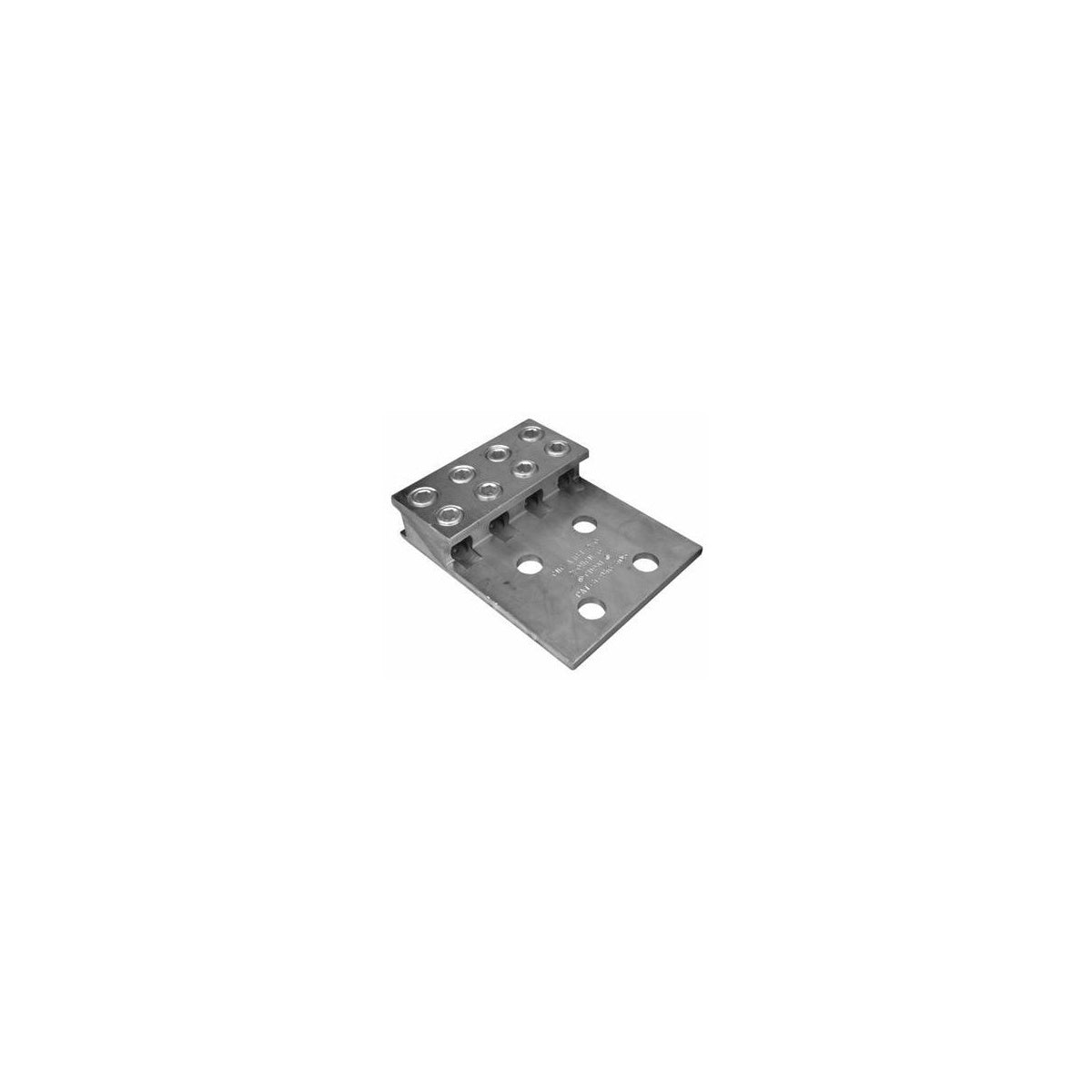

Aluminum Mechanical Lugs 4 Conductors - Four Hole Mount 800MCM-350MCM

This aluminum mechanical lug is designed for secure and flexible electrical connections in wire and cable installations. It supports four conductors and features a four-hole mount for versatile mounting options. Manufactured from high-strength 6061-T6 aluminum, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable mechanical connectors for aluminum and copper conductors.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 800MCM-350MCM
• Mounting: Four Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• UL Listing: UL486B AL9CU
• Center Hole Spacing: NEMA Standard 1-3/4"
• Product Weight: 0.3950 lbs
• Manufacturer Part #: 90967

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Connectors are reusable

Downloads & Links

• Spec Sheet
