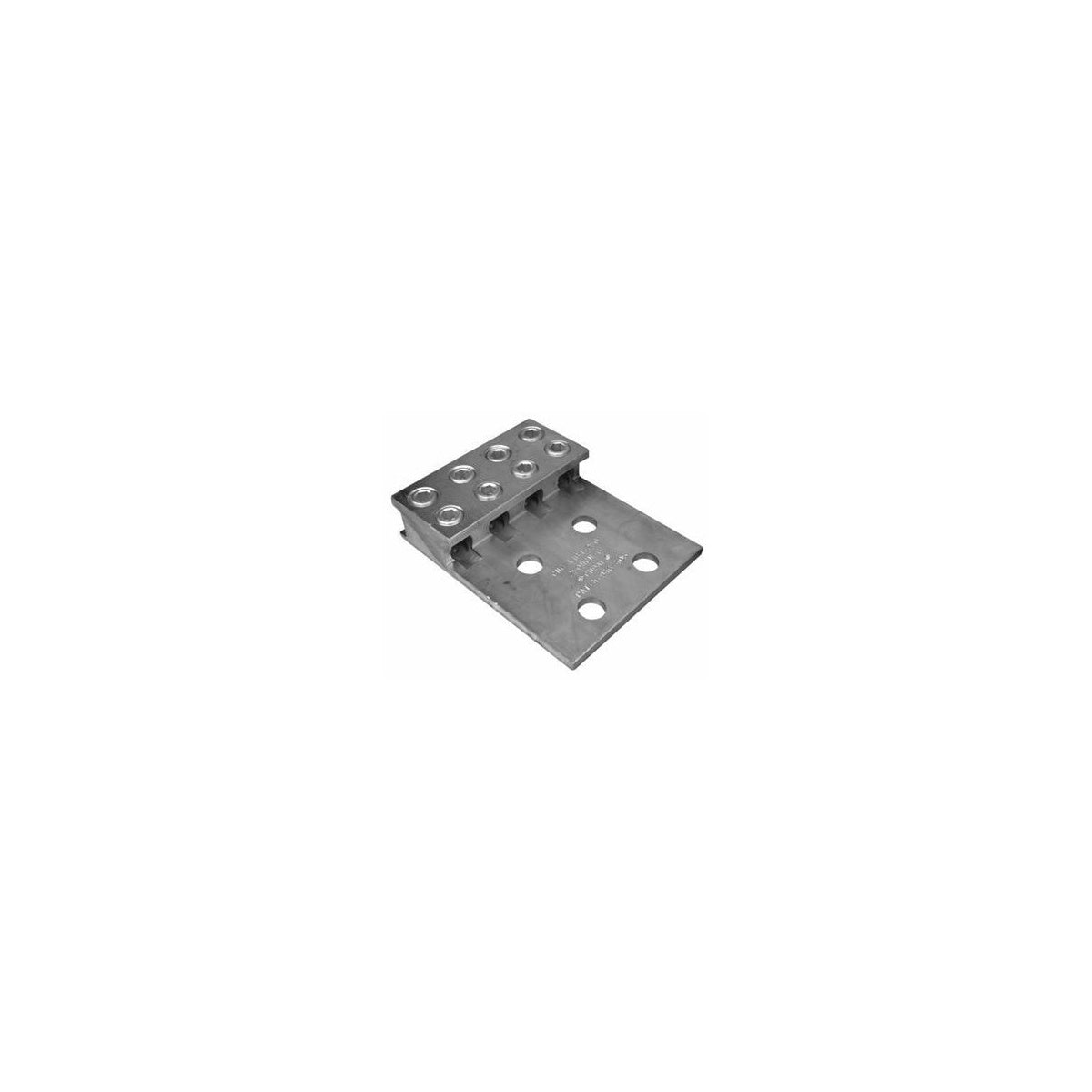

Aluminum Mechanical Lugs 4 Conductors - Four Hole Mount 600MCM-#2 Awg

This aluminum mechanical lug is designed for secure and flexible electrical connections, suitable for wire and cable installations requiring four conductors. It is ideal for electrical distributors and switchgear suppliers looking for reliable connectors that support both copper and aluminum conductors in various lighting solutions and electrical distribution systems.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 600MCM-#2 AWG
• Mount Style: Four Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Weight: 2.55 lbs
• UL Listing: UL486B AL9CU
• Center Hole Spacing: 1-3/4” (NEMA Standard)

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Connectors are reusable

Downloads & Links

• Spec Sheet
