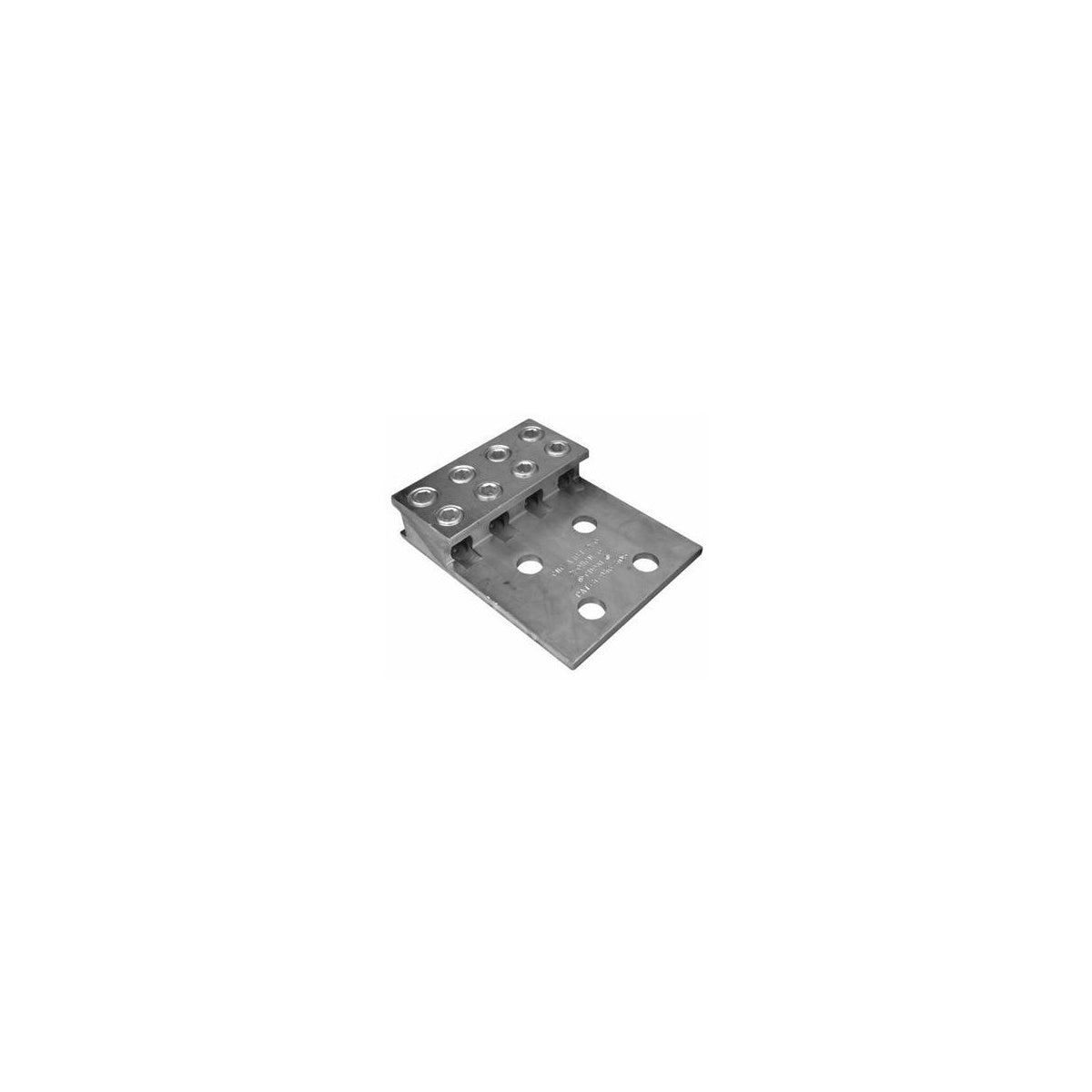

Aluminum Mechanical Lugs 4 Conductors - Four Hole Mount 1000MCM-350MCM

This aluminum mechanical lug is designed for secure and flexible electrical connections, suitable for wire and cable installations in commercial and industrial applications. It supports four conductors and features a four-hole mount for easy integration. Ideal for electrical distributors and switchgear suppliers requiring reliable mechanical connectors with high conductivity and corrosion resistance.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 1000MCM - 350MCM
• Mounting: Four Hole Mount
• Rated Voltage: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Weight: 0.45 lbs
• UL Listing: UL486B AL9CU
• Center Hole Spacing: NEMA Standard 1-3/4‚Äù

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for use with both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly can be performed with a screwdriver or Allen wrench
• Connectors are reusable for maintenance flexibility

Downloads & Links

• Spec Sheet
