Morris Products
Aluminum Mechanical Lugs 3 Conductors - Two & Four Hole Mount 800MCM-350MCM
SKU: #277253
Part: #90962
UPC: 601986909624
Morris Products
Aluminum Mechanical Lugs 3 Conductors - Two & Four Hole Mount 800MCM-350MCM
SKU: #277253
Part: #90962
UPC: 601986909624
Description
Aluminum Mechanical Lugs 3 Conductors - Two & Four Hole Mount 800MCM-350MCM Electrical Connector

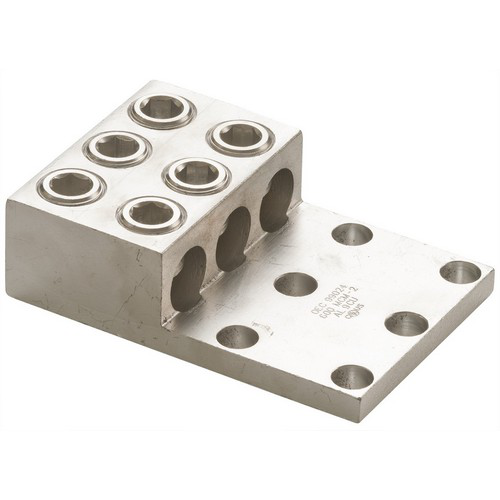

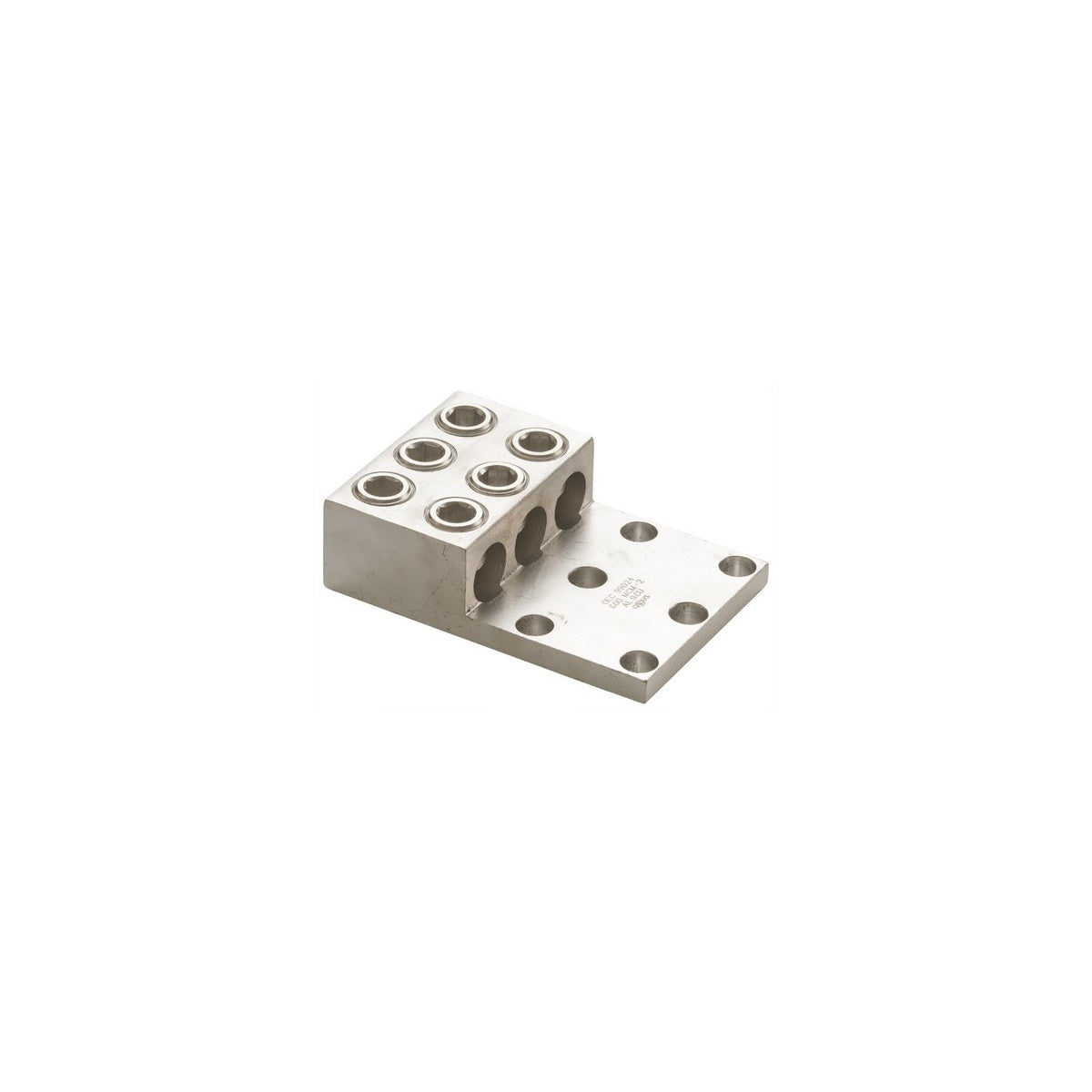

This aluminum mechanical lug is designed for securely connecting three conductors with flexibility in installation, featuring dual set screws and two or four hole mounting options. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures both maximum strength and conductivity, making it suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring reliable mechanical connectors.
Specifications
- Material: 6061-T6 Aluminum
- Wire Range: 800MCM-350MCM
- Length: 5.75 inches
- Width: 4.57 inches
- Height: 1.94 inches
- Rated Voltage: 600V
- Temperature Rating: 194°F (90°C)
- Center Hole Spacing: NEMA Standard 1-3/4 inches
- UL Listing: UL486B AL9CU
- Product Weight: 0.3650 lbs
Features
- Manufactured from high strength 6061-T6 aluminum alloy for strength and conductivity
- Dual rated for both copper and aluminum conductors
- Electro-tin plated to reduce contact resistance and protect against corrosion
- Assembly can be performed with a screwdriver or Allen wrench
- Connectors are reusable
- Two and four hole mounting options for installation flexibility
