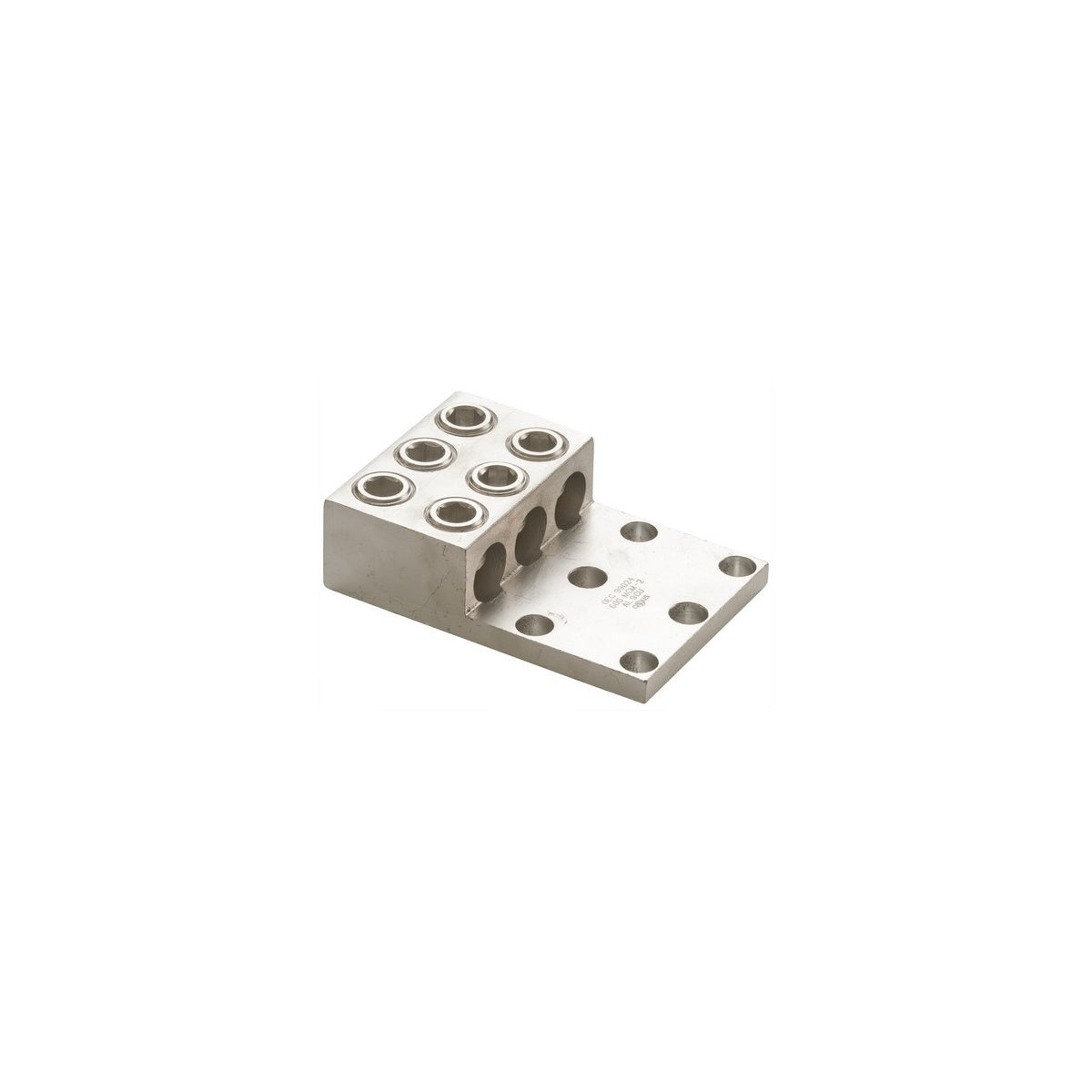

Aluminum Mechanical Lugs 3 Conductors - Two & Four Hole Mount 600MCM-#2 Awg

This aluminum mechanical lug is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connectivity. It features a dual set screw design with two and four-hole mounting options, accommodating three conductors ranging from 600MCM to #2 AWG. The lug is suitable for use in lighting solutions and general electrical installations where secure conductor termination is critical.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 600MCM to #2 AWG
• Mounting: Two & Four Hole Mount
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• Weight: 1.8750 lbs
• UL Listing: UL486B AL9CU

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be made with only a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4‚Äù center hole spacing

Downloads & Links

• Spec Sheet
