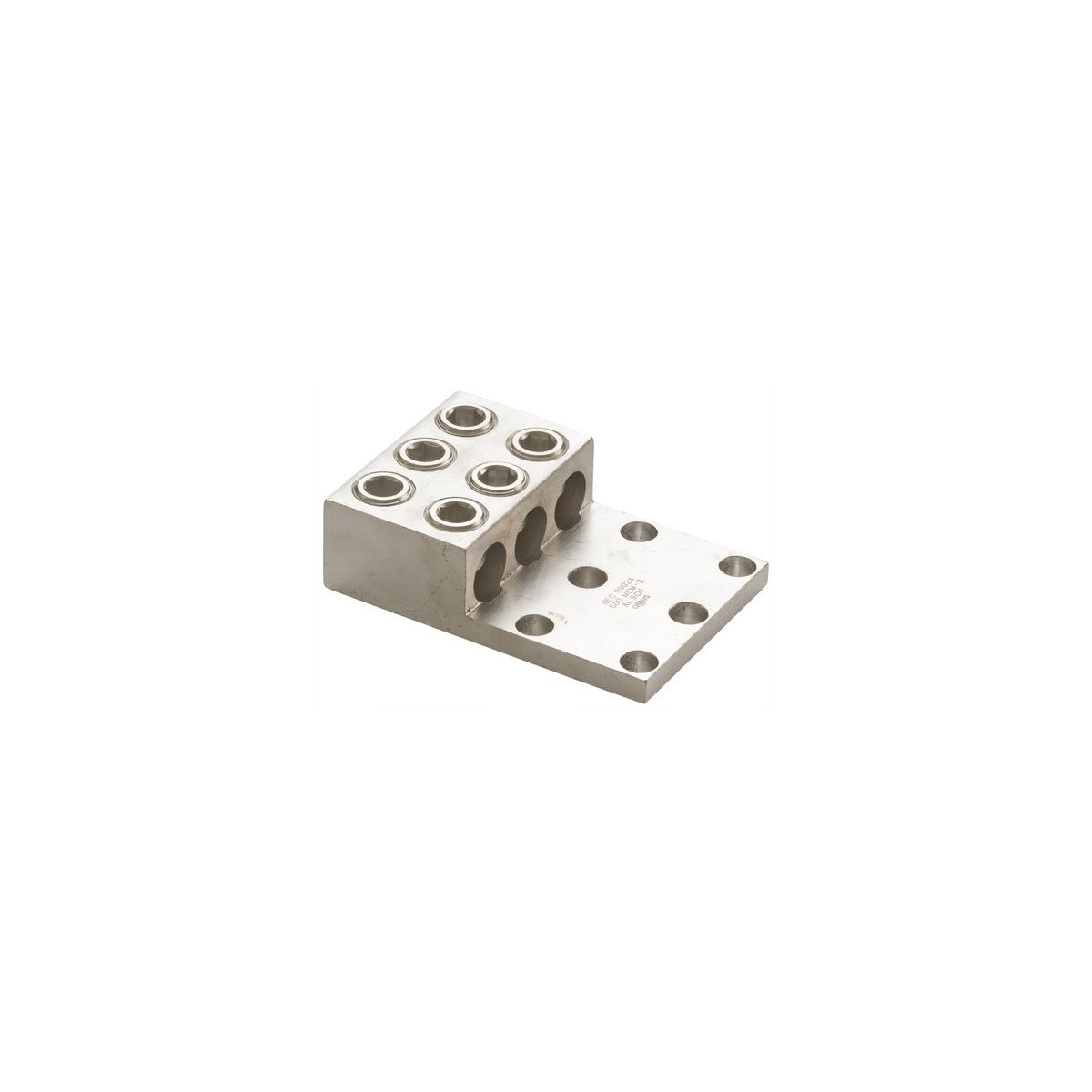

Aluminum Mechanical Lugs 3 Conductors - Two & Four Hole Mount 1000MCM-500MCM

This aluminum mechanical lug is designed for electrical distributors and switchgear suppliers requiring reliable connectors for wire and cable installations. It supports three conductors with dual set screws and offers flexible two and four-hole mounting options. Suitable for use in lighting solutions and general electrical distribution, it ensures secure connections for copper and aluminum conductors.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Wire Range: 1000MCM-500MCM
• Mounting: Two & Four Hole Mount
• Rated Voltage: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• UL Listing: UL486B AL9CU
• Dimensions (inches): Length 5.75, Width 4.57, Height 1.94
• Stud Size: 1.00 inch
• Product Weight: 0.3750 lbs

Features

• Manufactured from high-strength 6061-T6 aluminum for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated for low contact resistance and corrosion protection
• Assembly can be completed with a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4‚Äù center hole spacing
