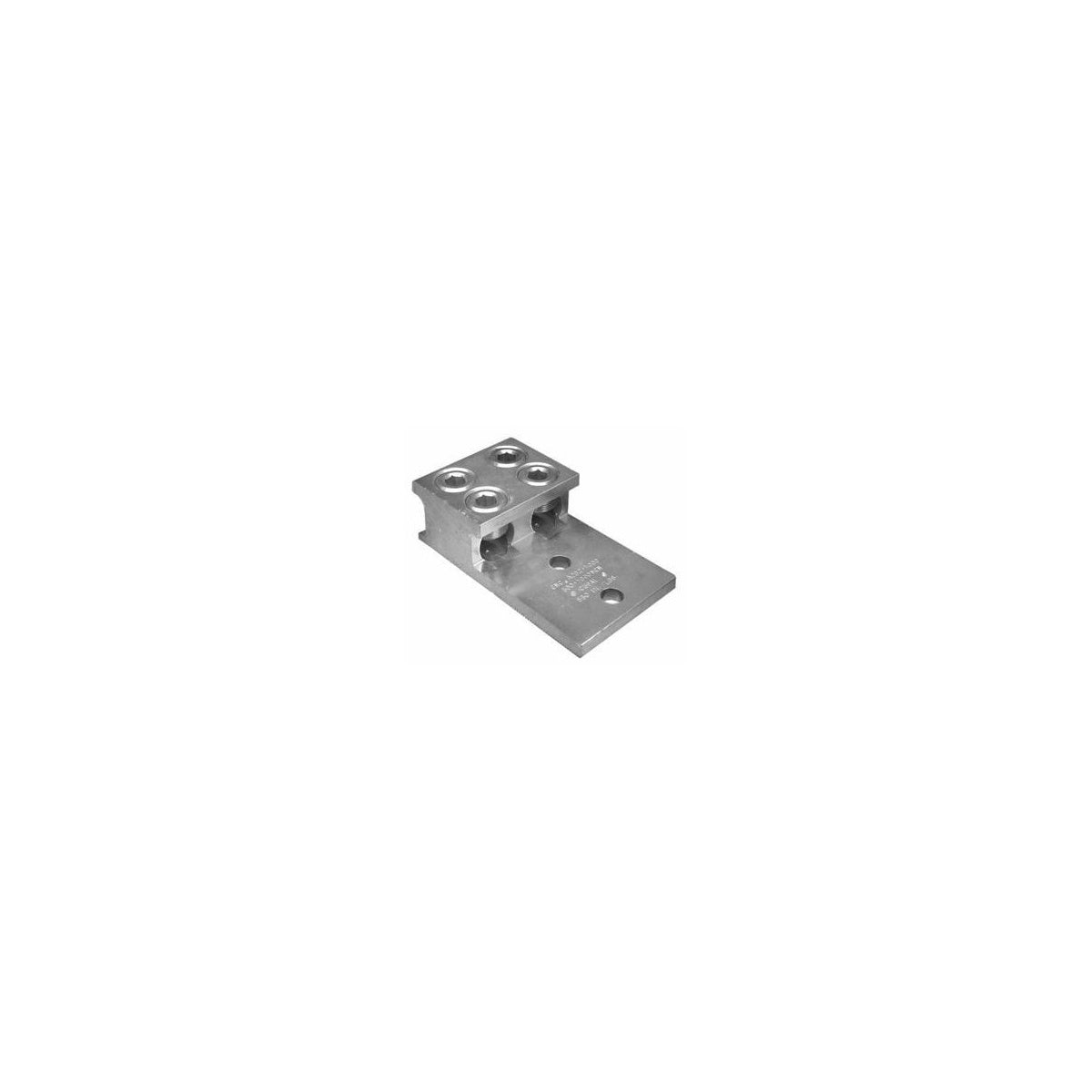

Aluminum Mechanical Lugs 2 Conductors - Two Hole Mount 1000MCM Electrical Connector

This aluminum mechanical lug is designed for secure electrical connections involving two conductors, suitable for wire and cable applications in electrical distribution and lighting solutions. It features a two-hole mount configuration for flexible installation and is rated for use up to 600V and 194°F (90°C). This product is ideal for electrical distributors and switchgear suppliers requiring reliable mechanical connectors for copper and aluminum conductors.

Specifications

• Material: 6061-T6 Aluminum
• Wire Range: 1000MCM - 350MCM
• Mounting: Two Hole Mount
• Length: 5.75 inches
• Width: 3.56 inches
• Height: 1.94 inches
• Stud Size: 0.50 inches
• Voltage Rating: 600V
• Temperature Rating: 194¬∞F (90¬∞C)
• UL Listing: UL486B AL9CU
• Product Weight: 2.4380 lbs

Features

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity
• Dual rated for both copper and aluminum conductors
• Electro-tin plated to reduce contact resistance and protect against corrosion
• Assembly can be performed using only a screwdriver or Allen wrench
• Connectors are reusable
• NEMA standard 1-3/4‚Äù center hole spacing

Downloads & Links

• Spec Sheet
