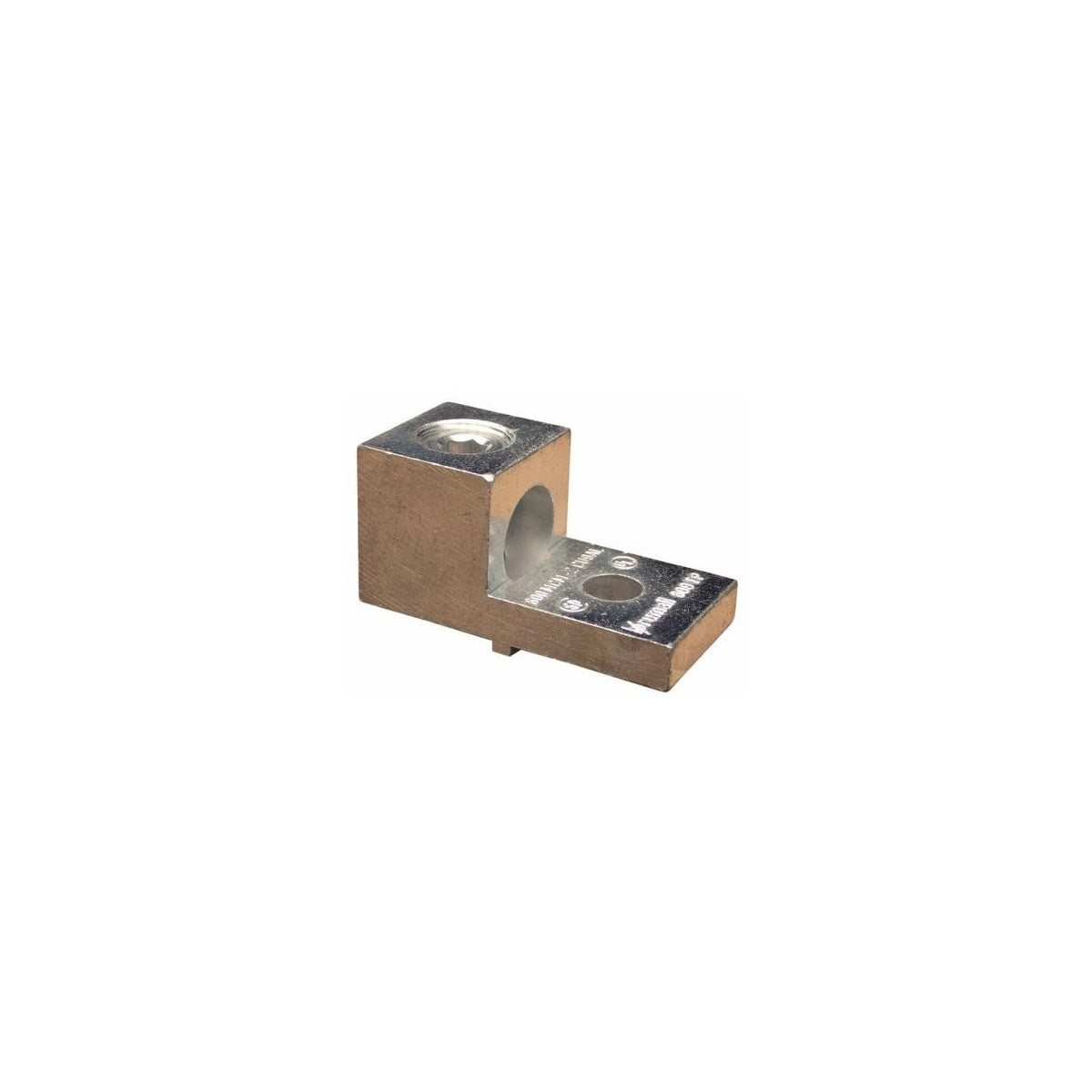

Aluminum Lugs with Turn Prevent One Conductor 300MCM-#6 Awg – Aluminum Mechanical Lugs

This product is an aluminum mechanical lug designed for electrical distributors and switchgear suppliers requiring reliable conductor connections. It is specifically engineered to prevent movement during tightening with a turn-prevent feature, suitable for use with wire and cable sizes ranging from 300MCM to #6 AWG. Ideal for lighting solutions and general electrical applications, it supports both copper and aluminum conductors and is rated for 600V.

Specifications

• Material: 6061-T6 Aluminum
• Conductor Range: 300MCM to #6 AWG
• Voltage Rating: 600V
• Product Weight: 0.1600 lbs
• Manufacturer Part #: 91314
• UPC: 601986913140

Features

• Set screw connectors with turn prevent on the bottom of the tang to eliminate movement or torquing during installation
• Tin plated for low contact resistance and corrosion protection
• Dual rated for use with both copper and aluminum conductors
• UL486B Listed for safety and compliance

Downloads & Links

• Spec Sheet
