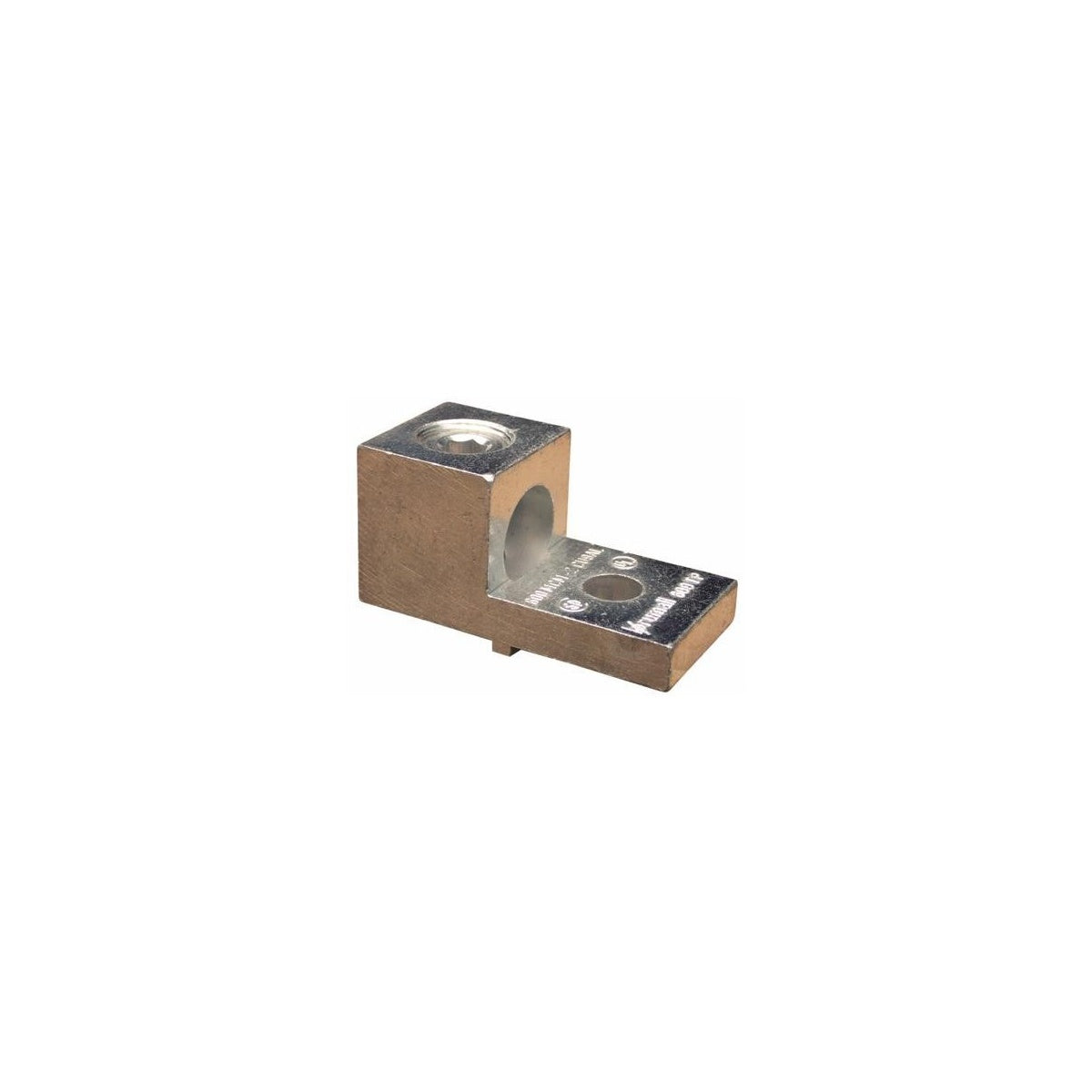

Aluminum Lugs with Turn Prevent One Conductor #2-#14 Awg - Electrical Connector

These aluminum mechanical lugs are designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, they feature a turn prevent design to eliminate movement of the connector during tightening, ensuring reliable performance in electrical distribution and lighting solutions. Suitable for use with both copper and aluminum conductors, these lugs are rated for 600V applications and are ideal for use by electrical distributors and switchgear suppliers.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Wire Range: #2 to #14 AWG
• Voltage Rating: 600V
• Product Weight: 0.1310 lbs
• Manufacturer Part #: 91310
• UPC: 601986913102

Features

• Set screw connectors with turn prevent on the bottom of the tang to eliminate movement and torquing of the connector
• Tin plated for low contact resistance and corrosion protection
• Dual rated for use with both copper and aluminum conductors
• UL486B Listed for safety and compliance

Downloads & Links

• Spec Sheet
