Aluminum Long Barrel Compression Splices #2 Awg
SKU: #278340
Part: #93214
UPC: 601986932141
Aluminum Long Barrel Compression Splices #2 Awg
SKU: #278340
Part: #93214
UPC: 601986932141
Total Price: $4.69 per piece Sold in increments of 1 piece
Description
Aluminum Long Barrel Compression Splices #2 Awg - Electrical Wire and Cable Connector
Aluminum Long Barrel Compression Splices #2 Awg are designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, these compression splices are dual rated for use with both copper and aluminum conductors, making them suitable for a wide range of electrical distribution and lighting solutions. Ideal for electrical distributors and switchgear suppliers, they ensure reliable conductivity and mechanical strength in electrical systems.
Specifications
- Material: 6061-T6 Aluminum

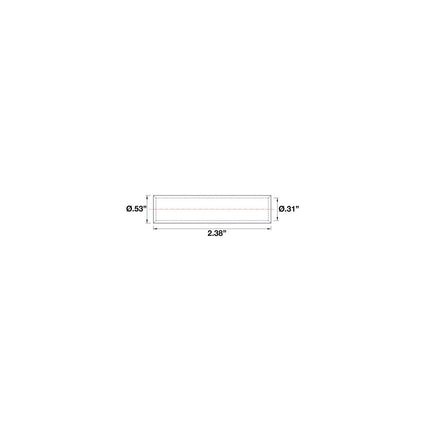

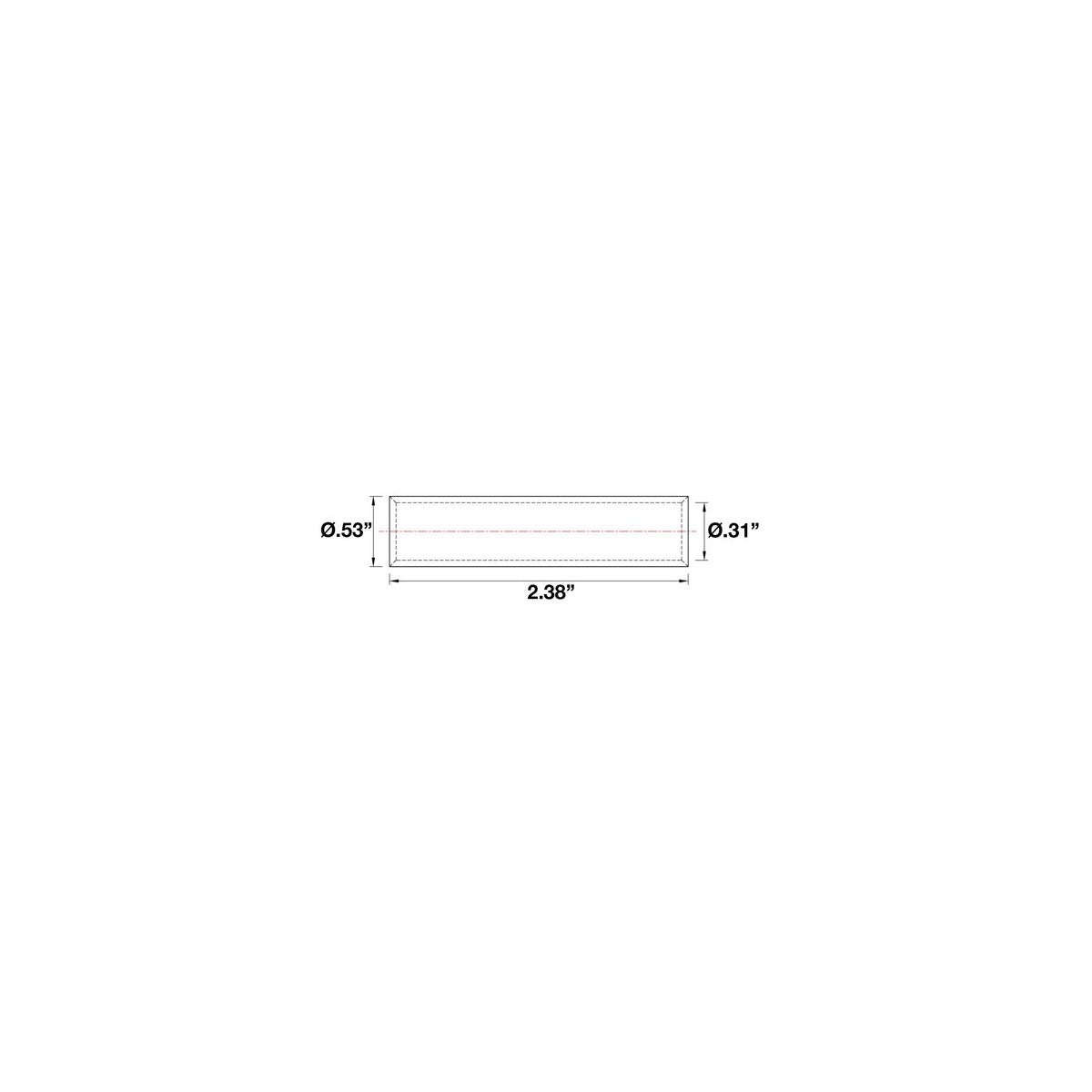

- Inside Diameter: 0.31 inches
- Outside Diameter: 0.53 inches
- Length: 2.38 inches
- Color Coding: Pink
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486B AL9CU
- cUL Certified: Yes
- RoHS Compliant: Yes
- Product Weight: 0.0600 lbs
Features
- Manufactured from high strength, high conductivity seamless aluminum
- Electro-tin plated for enhanced corrosion resistance
- Dual rated AL9CU for copper and aluminum conductors
- Oxide inhibitor filled and capped barrel to prevent oxidation
- Color coded and marked with die size and crimp marks for easy identification
