Aluminum Long Barrel Compression Splices #1 Awg – Aluminum Compression Splices

These aluminum long barrel compression splices are designed for electrical distributors and switchgear suppliers requiring reliable connections for wire and cable applications. Dual rated for use with both copper and aluminum conductors, they provide a secure splice solution in lighting solutions and electrical distribution systems.

Specifications

• Material: 6061-T6 Aluminum

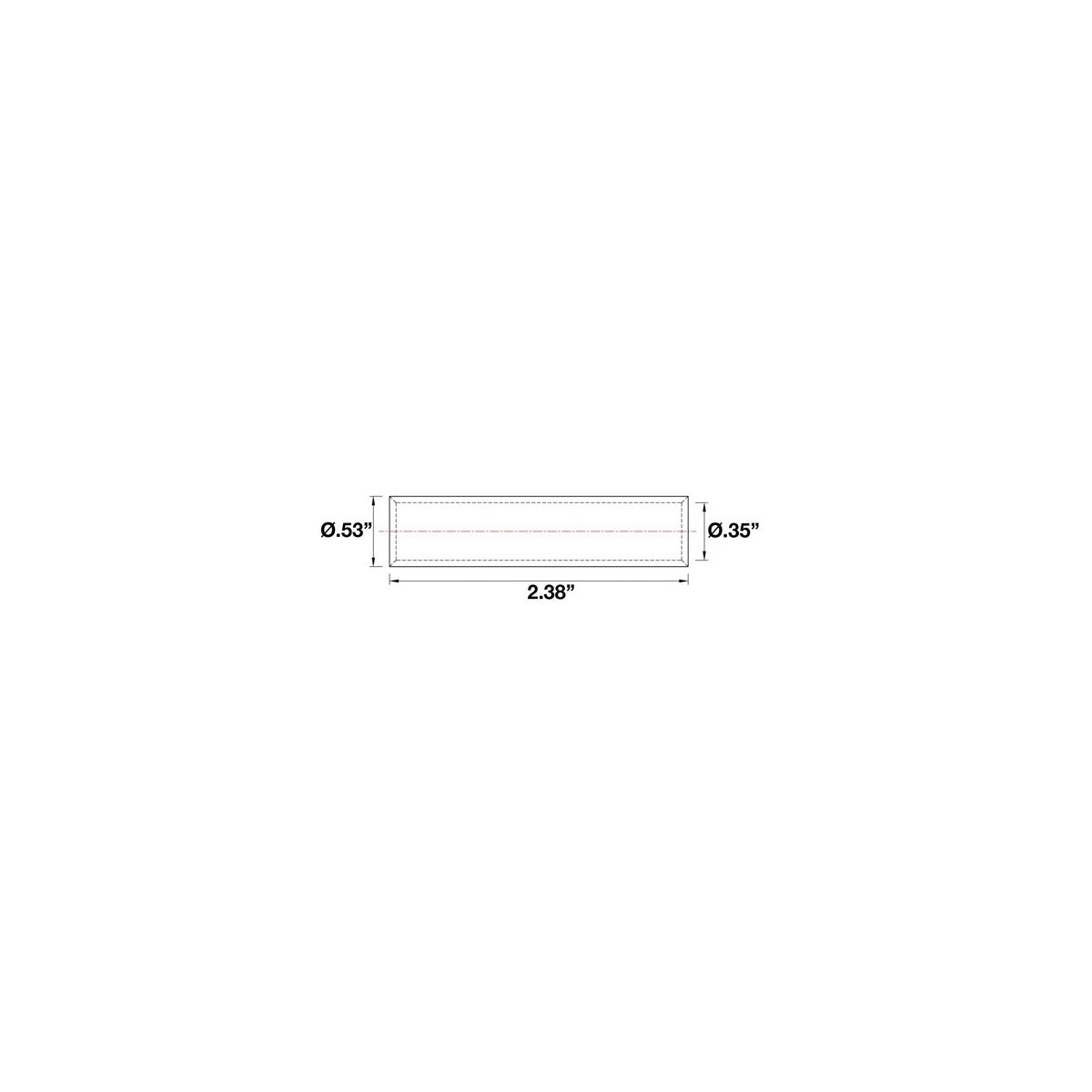

• Inside Diameter: 0.35 inches
• Outside Diameter: 0.53 inches
• Length: 2.38 inches
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Color Coding: Gold
• UL Certification: UL486B AL9CU
• cUL: Yes
• RoHS Compliant: Yes
• Product Weight: 0.2500 lbs
• Manufacturer Part #: 93216

Features

• Manufactured from high strength, high conductivity seamless aluminum
• Electro-tin plated for enhanced conductivity and corrosion resistance
• Dual rated AL9CU for compatibility with copper and aluminum conductors
• Oxide inhibitor filled and capped barrel to prevent corrosion
• Color coded and marked with die size and crimp marks for easy identification

Downloads & Links

• Spec Sheet
