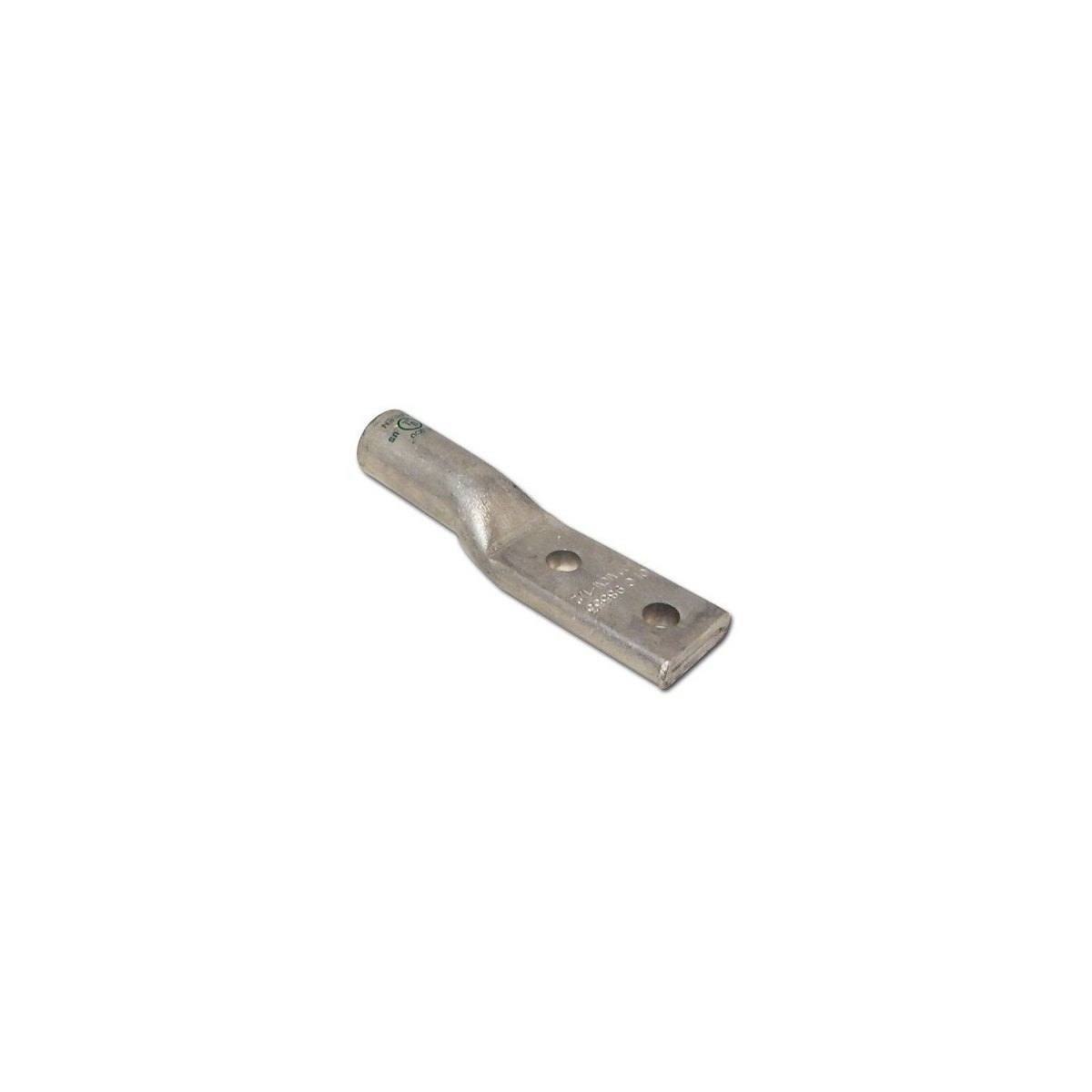

Aluminum Long Barrel 2 Hole Compression Lugs 750 MCM - 1/2 Stud | Compression Lugs for Electrical Connections

This aluminum long barrel 2 hole compression lug is designed for secure electrical connections in wire and cable applications. Suitable for use with aluminum or copper conductors, it supports wire sizes from 1/0 through 750 MCM. The lug is ideal for electrical distributors and switchgear suppliers requiring reliable, dual-rated compression connectors for high conductivity and durability.

Specifications

• Material: 6061-T6 Aluminum
• Wire Size Range: 1/0 to 750 MCM
• Stud Size: 1/2 inch
• Inside Diameter: 1.03 inches
• Outside Diameter: 1.60 inches
• Color Coding: Yellow
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• UL Certification: UL486B AL9CU
• cUL Certified: Yes
• RoHS Compliant: Yes
• Product Weight: 1.3310 lbs

Features

• Manufactured from high strength, high conductivity seamless aluminum
• Electro-tin plated for enhanced corrosion resistance
• Dual rated AL9CU for copper or aluminum conductors
• Oxide inhibitor filled and capped barrel to prevent oxidation
• Color coded and marked with die size and crimp marks for easy identification
• 2 hole NEMA stud spacing configuration
