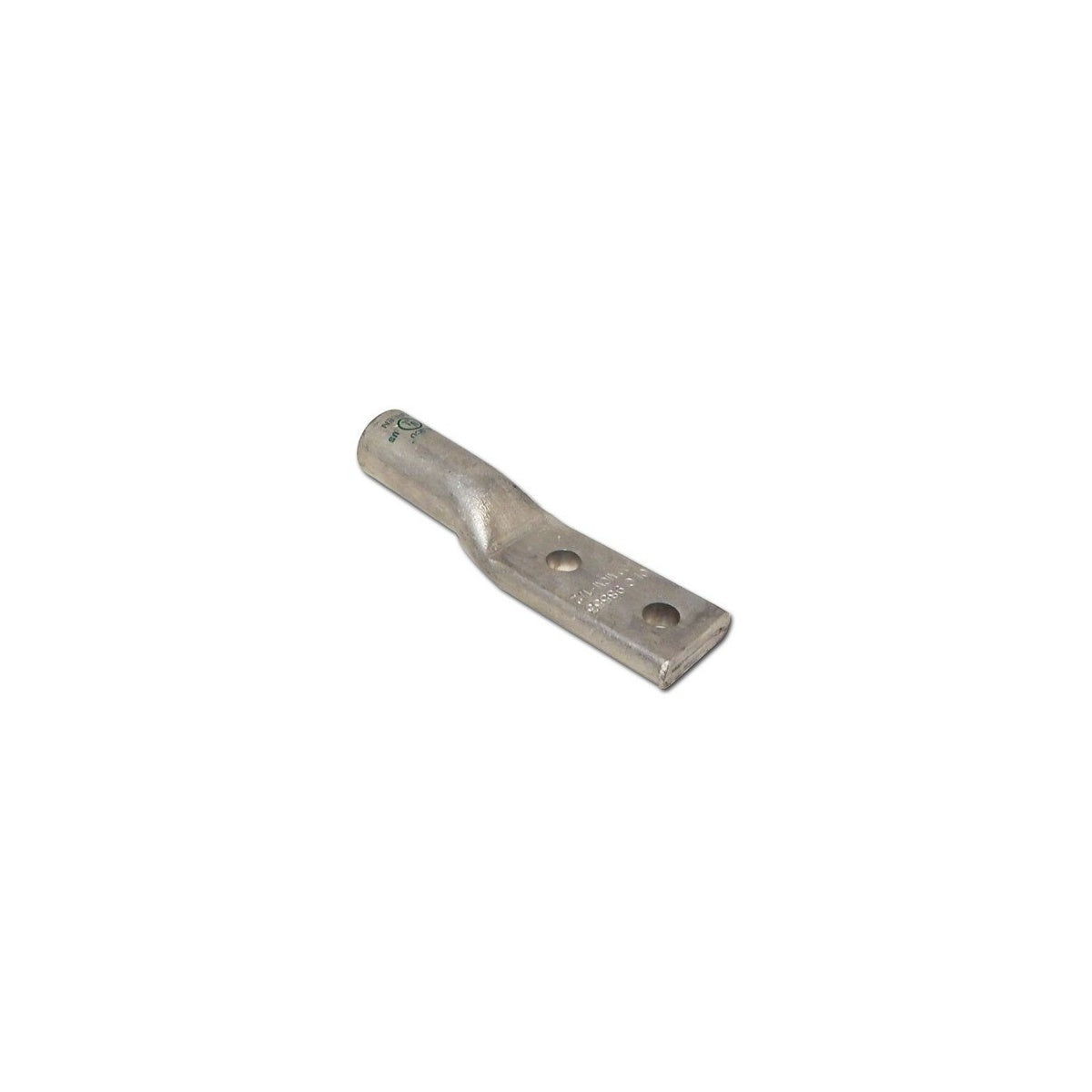

Aluminum Long Barrel 2 Hole Compression Lugs 600 MCM - 1/2 Stud Electrical Connector

This aluminum long barrel 2 hole compression lug is designed for secure electrical connections in wire and cable applications. It is dual rated for use with both aluminum and copper conductors, making it suitable for a variety of electrical distribution and lighting solutions. The lug features a durable 6061-T6 aluminum construction with electro-tin plating for enhanced conductivity and corrosion resistance. It is commonly used by electrical distributors and switchgear suppliers for reliable terminations in medium to large gauge cables.

Specifications

• Material: 6061-T6 Aluminum
• Wire Size Range: 1/0 thru 750 MCM
• Stud Size: 1/2 inch
• Inside Diameter: 0.92 inches
• Outside Diameter: 1.44 inches
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• Color Coding: Black
• Weight: 0.9470 lbs
• UL Certification: UL486B AL9CU
• cUL: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity seamless aluminum
• Electro-tin plated for corrosion resistance and improved conductivity
• AL9CU dual rated for use with copper or aluminum conductors
• Oxide inhibitor filled and capped barrel to prevent oxidation
• Color coded and marked with die size and crimp marks for easy identification
• 2 hole NEMA spacing for secure stud attachment
