Morris Products
Aluminum Long Barrel 2 Hole Compression Lugs 400 MCM - 1/2 Stud
SKU: #278302
Part: #93124
UPC: 601986931243
Morris Products
Aluminum Long Barrel 2 Hole Compression Lugs 400 MCM - 1/2 Stud
SKU: #278302
Part: #93124
UPC: 601986931243
Description
Aluminum Long Barrel 2 Hole Compression Lugs 400 MCM - 1/2 Stud | Compression Lug

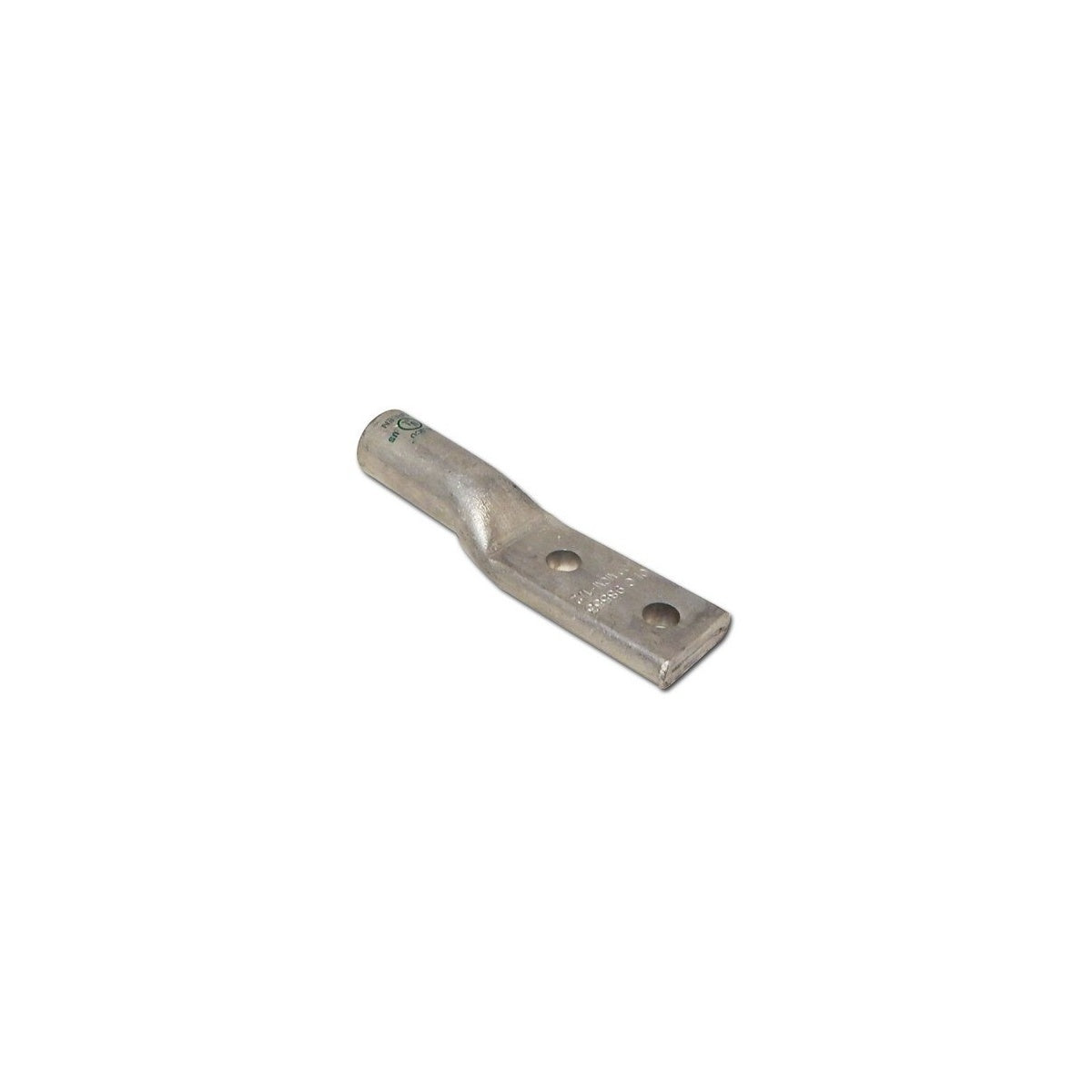

This aluminum long barrel 2 hole compression lug is designed for secure electrical connections in wire and cable installations. Suitable for use with aluminum or copper conductors, it is dual rated (AL9CU) and ideal for electrical distributors and switchgear suppliers requiring reliable, high-conductivity connectors. The lug supports wire sizes from 1/0 through 750 MCM and features electro-tin plating for enhanced corrosion resistance.
Specifications
- Material: 6061-T6 Aluminum
- Wire Size Range: 1/0 thru 750 MCM
- Stud Size: 1/2 inch
- Inside Diameter: 0.76 inches
- Outside Diameter: 1.19 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486B AL9CU
- cUL Certified: Yes
- RoHS Compliant: Yes
- Product Weight: 0.6380 lbs
- Color Code: Green
Features
- Manufactured from high strength, high conductivity seamless aluminum
- Electro-tin plated for corrosion resistance
- Dual rated AL9CU for use with copper or aluminum conductors
- Oxide inhibitor filled and capped barrel to prevent oxidation
- Color coded and marked with die size and crimp marks for accurate installation
- 2 hole NEMA spacing for secure stud configuration
