Morris Products

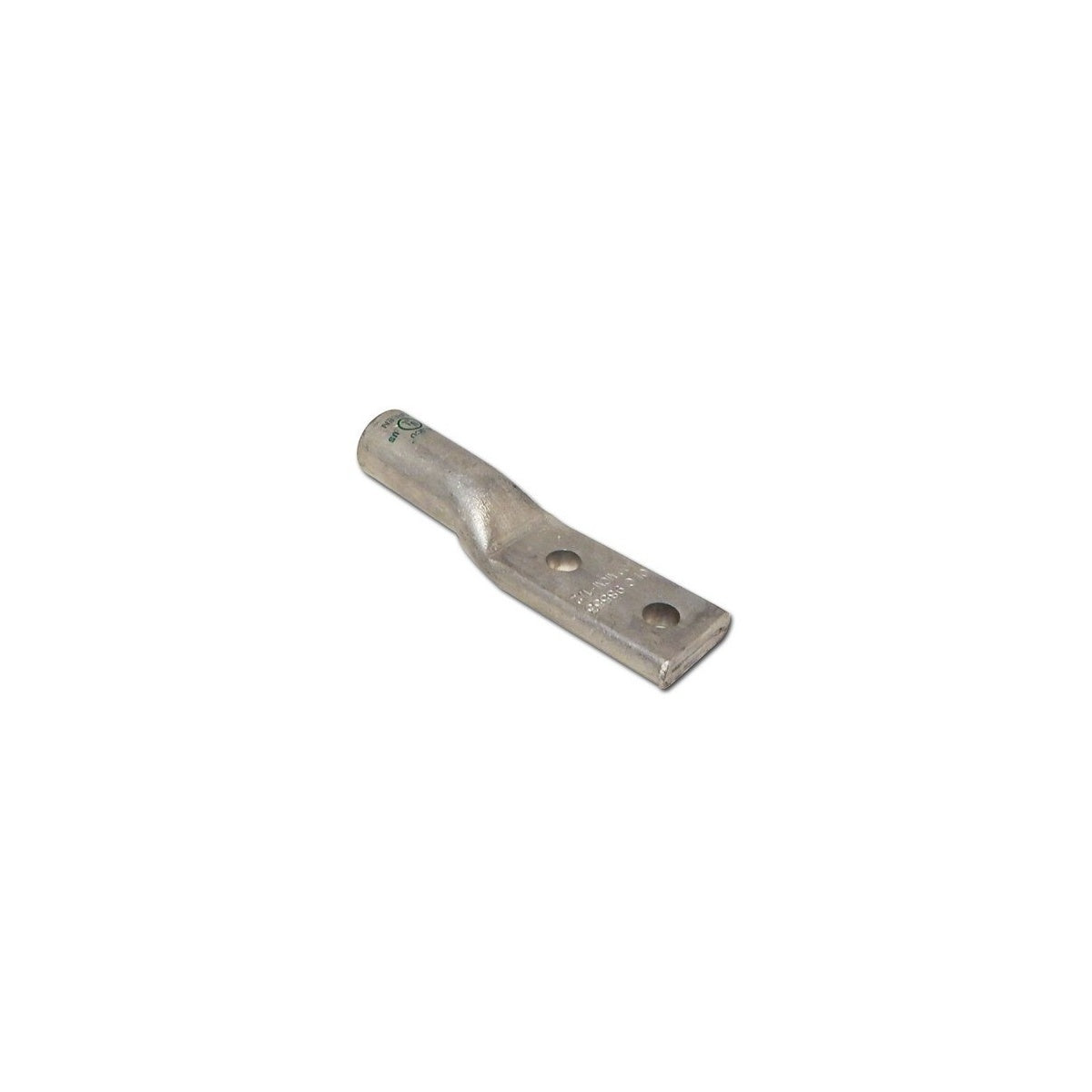

Aluminum Long Barrel 2 Hole Compression Lugs 350 MCM - 1/2 Stud
SKU: #278292
Part: #93122
UPC: 601986931229
Morris Products
Aluminum Long Barrel 2 Hole Compression Lugs 350 MCM - 1/2 Stud
SKU: #278292
Part: #93122
UPC: 601986931229
Description
Aluminum Long Barrel 2 Hole Compression Lugs 350 MCM - 1/2 Stud | Compression Lug
This aluminum long barrel compression lug is designed for secure electrical connections in wire and cable applications. Suitable for both aluminum and copper conductors, it provides reliable performance in electrical distribution and lighting solutions. The lug supports wire sizes from 1/0 through 750 MCM and features a 2-hole NEMA stud configuration, making it compatible with various switchgear and electrical equipment.
Specifications
- Material: 6061-T6 Aluminum
- Wire Size: 1/0 thru 750 MCM
- Stud Size: 1/2 inch
- Inside Diameter: 0.72 inches
- Outside Diameter: 1.12 inches
- Color Coding: Brown
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486B AL9CU
- cUL: Yes
- RoHS Compliant: Yes
- Product Weight: 0.5270 lbs
Features
- Manufactured from high strength, high conductivity seamless aluminum
- Electro-tin plated for corrosion resistance
- Dual rated AL9CU for use with copper or aluminum conductors
- Oxide inhibitor filled and capped barrel to prevent corrosion
- Color coded and marked with die size and crimp marks for easy identification
