Morris Products

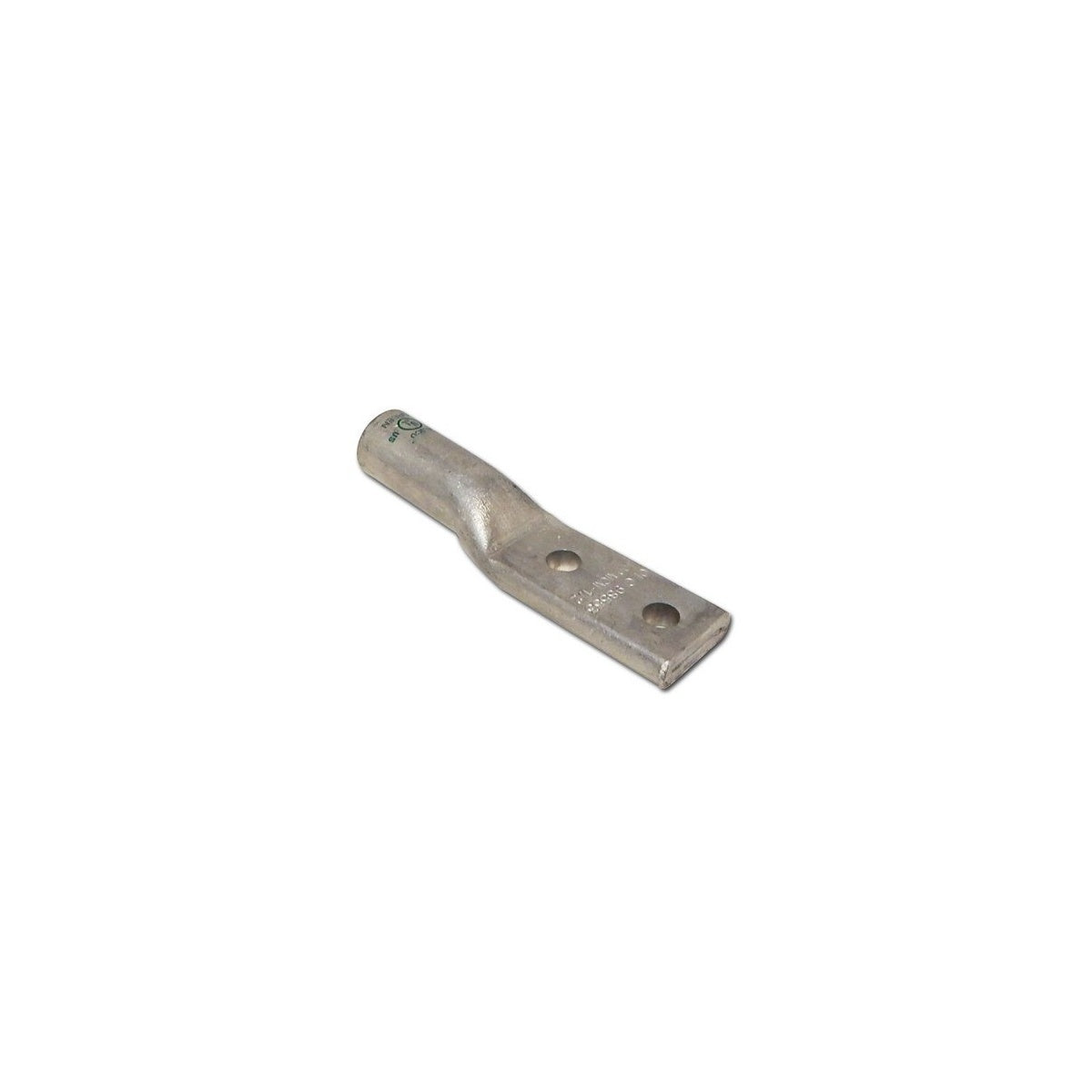

Aluminum Long Barrel 2 Hole Compression Lugs 300 MCM - 1/2 Stud
SKU: #278284
Part: #93120
UPC: 601986931205
Morris Products
Aluminum Long Barrel 2 Hole Compression Lugs 300 MCM - 1/2 Stud
SKU: #278284
Part: #93120
UPC: 601986931205
Description
Aluminum Long Barrel 2 Hole Compression Lugs 300 MCM - 1/2 Stud
This dual-rated compression lug is designed for use with aluminum or copper cables, providing a reliable electrical connection for wire sizes ranging from 1/0 to 750 MCM. Manufactured from high conductivity seamless 6061-T6 aluminum with electro-tin plating, it is suitable for applications requiring durable wire and cable terminations. The product is ideal for electrical distributors and switchgear suppliers seeking quality lug solutions for lighting and power distribution systems.
Specifications
- Material: 6061-T6 Aluminum
- Color Coding: Blue
- Inside Diameter: 0.65 inches
- Outside Diameter: 1.01 inches
- Stud Size: 1/2 inch
- Wire Size Range: 300 MCM
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486B AL9CU
- cUL Certification: Yes
- RoHS Compliant: Yes
- Product Weight: 0.3950 lbs
Features
- Manufactured from high strength, high conductivity seamless aluminum
- Electro-tin plated for corrosion resistance
- AL9CU dual rated for copper or aluminum conductors
- Oxide inhibitor filled and capped barrel
- Color coded and marked with die size and crimp marks for easy identification
- 2 hole NEMA spacing for secure stud connection
