Aluminum Long Barrel 1 Hole Compression Lugs 4/0 Awg - 1/2 Stud | Compression Connector

This Aluminum Long Barrel 1 Hole Compression Lug is designed for use with copper or aluminum cables, providing a secure and reliable connection for electrical distribution and wire and cable applications. It is suitable for electrical distributors and switchgear suppliers requiring high conductivity and durability in compression connectors.

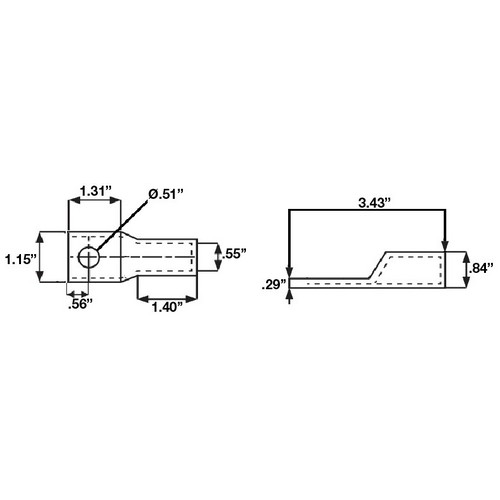

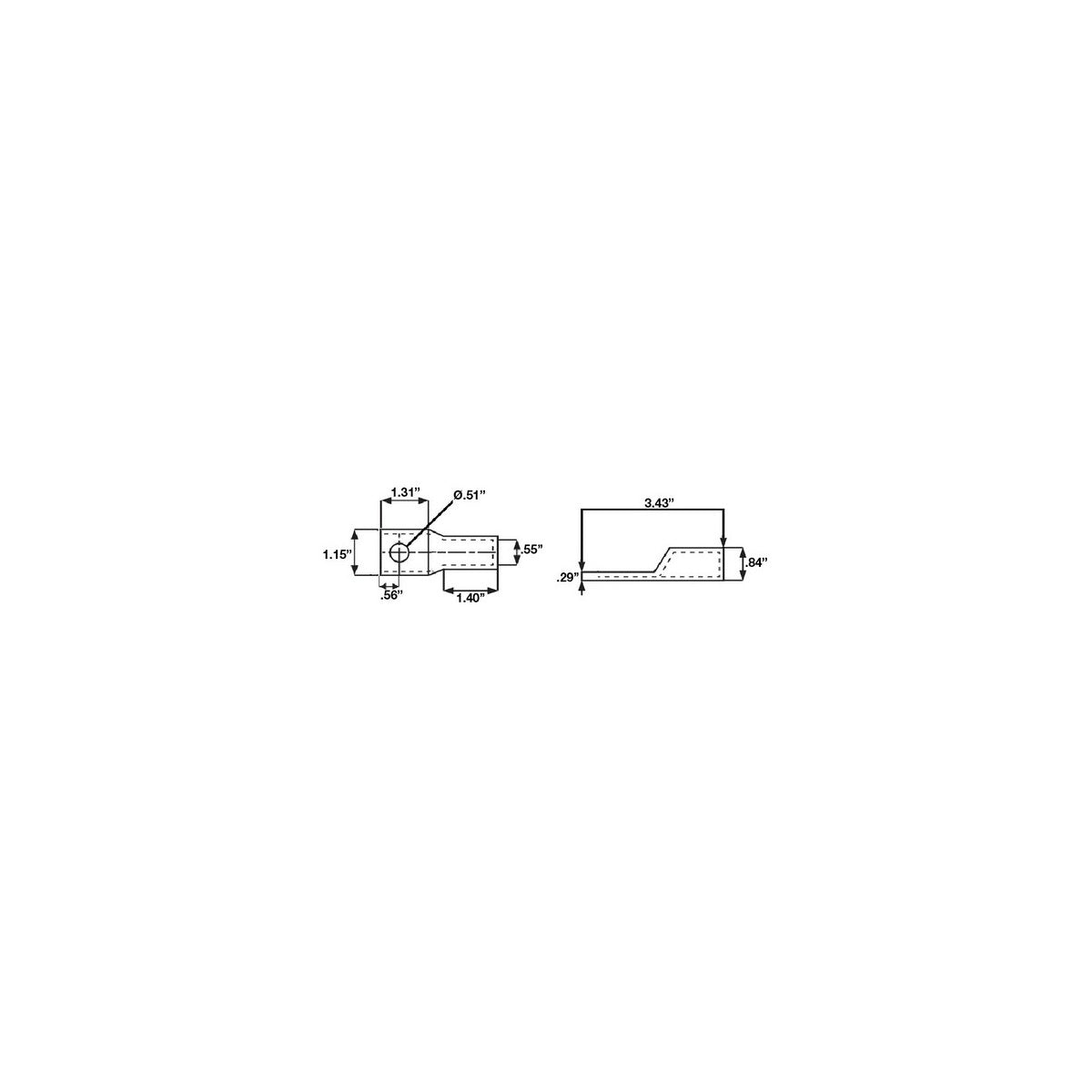

Specifications

• Material: 6061-T6 Aluminum
• Wire Size Range: #8 Str through 750 MCM
• Stud Size: 1 Hole, 1/2" Stud
• Inside Diameter: 0.55 inches
• Outside Diameter: 0.84 inches
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 KV
• Color: White
• Product Weight: 0.1750 lbs
• UL Certification: UL486B AL9CU
• cUL: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity seamless aluminum
• Electro-tin plated for enhanced corrosion resistance
• AL9CU dual rated for copper or aluminum conductors
• Oxide inhibitor filled and capped barrel to prevent corrosion
• Color coded and marked with die size and crimp marks for easy identification

Downloads & Links

• Spec Sheet
