Aluminum Long Barrel 1 Hole Compression Lugs 2/0 Awg - 1/2 Stud | Compression Connector

This Aluminum Long Barrel 1 Hole Compression Lug is designed for use with copper or aluminum cables, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. It provides a secure compression connection for 2/0 AWG wire size with a 1/2" stud size, making it applicable in switchgear supplier environments and electrical installations demanding high conductivity and durability.

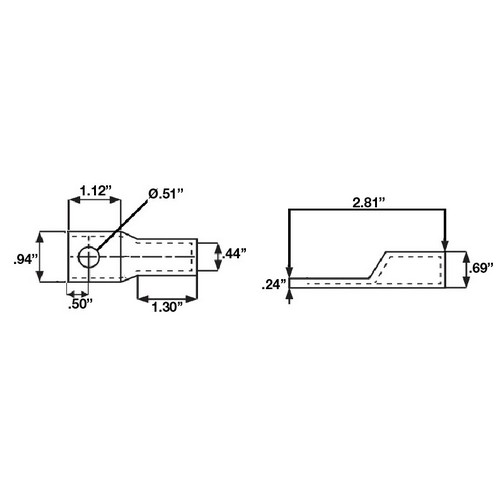

Specifications

• Material: 6061-T6 Aluminum
• Color Coding: Olive
• Inside Diameter: 0.44 inches
• Outside Diameter: 0.69 inches
• Stud Size: 1/2 inch
• Product Weight: 0.0960 lbs
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 kV
• UL Certification: UL486B AL9CU
• cUL: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity seamless aluminum
• Electro-tin plated for corrosion resistance
• AL9CU dual rated for copper or aluminum conductors
• Oxide inhibitor filled and capped barrel to prevent oxidation
• Color coded and marked with die size and crimp marks for easy identification
