Features

• UL486B Listed, AL9CU Rated for copper and aluminum conductor combinations up to 90°C, 600 Volt applications
• UL Recognized for grounding and bonding
• Lay-in feature eases installation

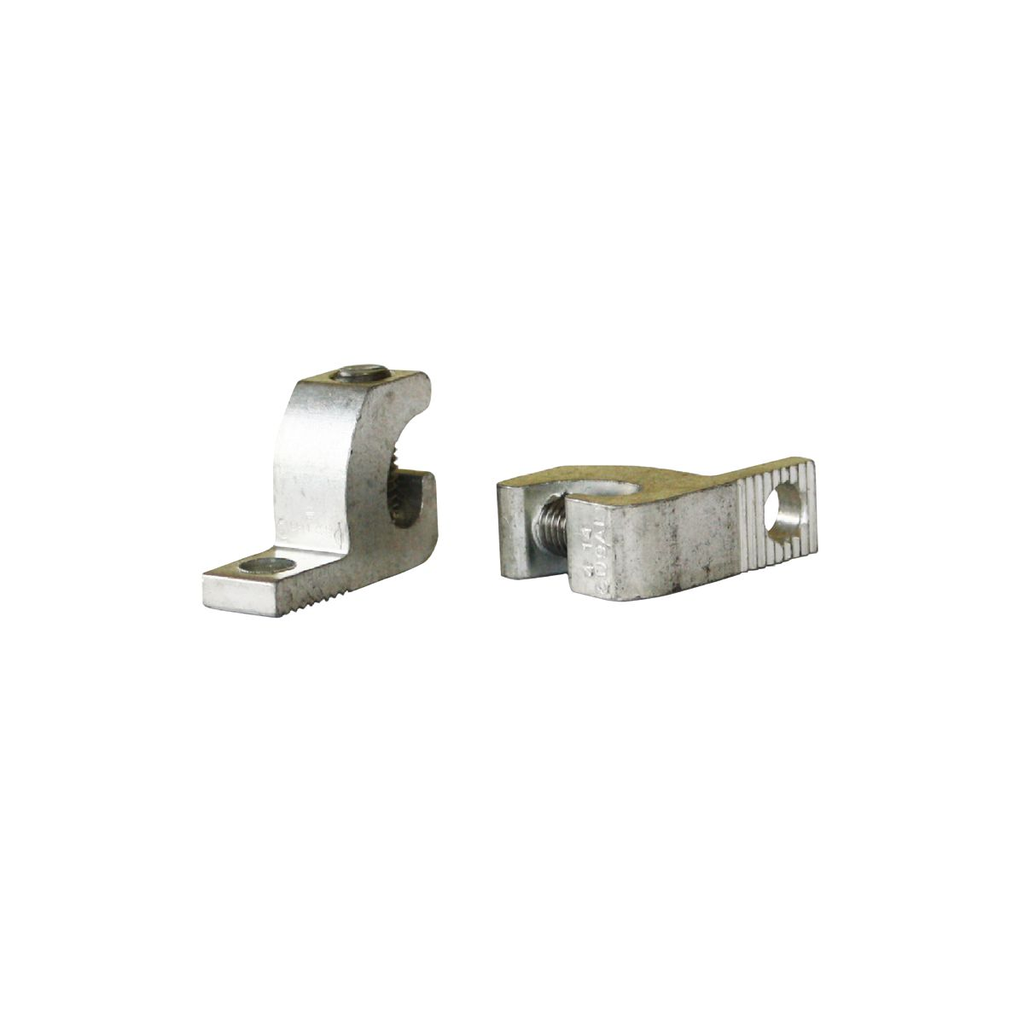

• The Lay-In QIKLUG, Type BGBL Is Manufactured From High Strength 6061-T6 Aluminum, UL486B Listed, AL9CU Rated, For Copper And Aluminum Conductor Combinations Up To 90° C, 600 Volt Applications, UL Recognized For Grounding And Bonding, Ensures Reliability, Electro-Tin Plated, Provides Low Contact Resistance, Lay-In Feature, Eases Installation, Dimension E: 1 IN, Dimension T: 0.25 IN, Dimension D: 1.18 IN, Dimension K: 0.28 IN, Dimension N: 0.45 IN, Tongue Width: 0.88 IN, Installation Torque: Yes, Length: 2.18 IN, Stud/bolt Hole Size: 0.28 IN, Height: 1.72 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - AL Str Size Range: 6 AWG-250 kcmil
• Conductor - Copper Solid Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
• Conductor - Copper Solid Size Range: 6 AWG-4/0 AWG
• Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Size Range: 6 AWG - 250 kcmil
• Dimension - D inch: 1.18 in
• Dimension - Height fraction: 1-4/5 in
• Dimension - Height inch: 1.79 in
• Dimension - Hole Size inch: 0.33 in
• Dimension - Hole Size mm: 8 mm
• Dimension - L Length Overall mm: 56 mm
• Dimension - Length Overall inch: 2.20 in
• Dimension - N inch: 0.4 in
• Dimension - Pad Width inch: 0.80 in
• Width: 0.80 in
• Each - Width: 0.80 in
• Hex Size: 5/16
• Industry Standard(s): UL 486A-B
• Installation Torque Recommended in-lb: 180 LBS/in
• Material Type - Screw: Steel - Zinc Plated
• Physical Attribute - Screw Type: Allen
• Plated: Y
• Plating Type: Tin
• Product Type: Mechanical
• Standards - Industry Standards Met: UL 486A-B
• Standards - RoHS Compliance Status: CM
• Trade Name: QIKLUG™
• Application: For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
• Special Features: Features: The Lay-In QIKLUG, Type BGBL Is Manufactured From High Strength 6061-T6 Aluminum, UL486B Listed, AL9CU Rated, For Copper And Aluminum Conductor Combinations Up To 90° C, 600 Volt Applications, UL Recognized For Grounding And Bonding, Ensures Reliability, Electro-Tin Plated, Provides Low Contact Resistance, Lay-In Feature, Eases Installation, Dimension E: 1 IN, Dimension T: 0.25 IN, Dimension D: 1.18 IN, Dimension K: 0.28 IN, Dimension N: 0.45 IN, Tongue Width: 0.88 IN, Installation Torque: Yes, Length: 2.18 IN, Stud/bolt Hole Size: 0.28 IN, Height: 1.72 IN
• Standard: UL 486A-B
• Sub Brand: QIKLUG
• Temperature Rating: 194
• Type: BGBL, Lay-In
• Conductor Type: AL C Str-Size;CU C Str-Size;CU C Solid-Size
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B41
• Description - Invoice: 250-6 AL/CU LAY-IN LUG
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: N - Non-stock
• Sub Class Code: B41BDFF
• UL Listed: Yes
• Material: Aluminum
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 175
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810124819
• Carton - Total Units: 175 EA
• Case - SCC-14 Next Lower Level Sub Pack: 30781810124810
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 4.25 lb.
• Package - GTIN - Package: 30781810124810
• Package - Number of Sub Packs: 25
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810124819
• Package - Total Units: 25 EA
• Package Height: 10.75 in
• Package Length: 10.00 in
• Package Quantity: 25 EA
• Package Weight: 4.25 lb.
• Package Width: 16.625 in
• Standard Package Quantity: 25
