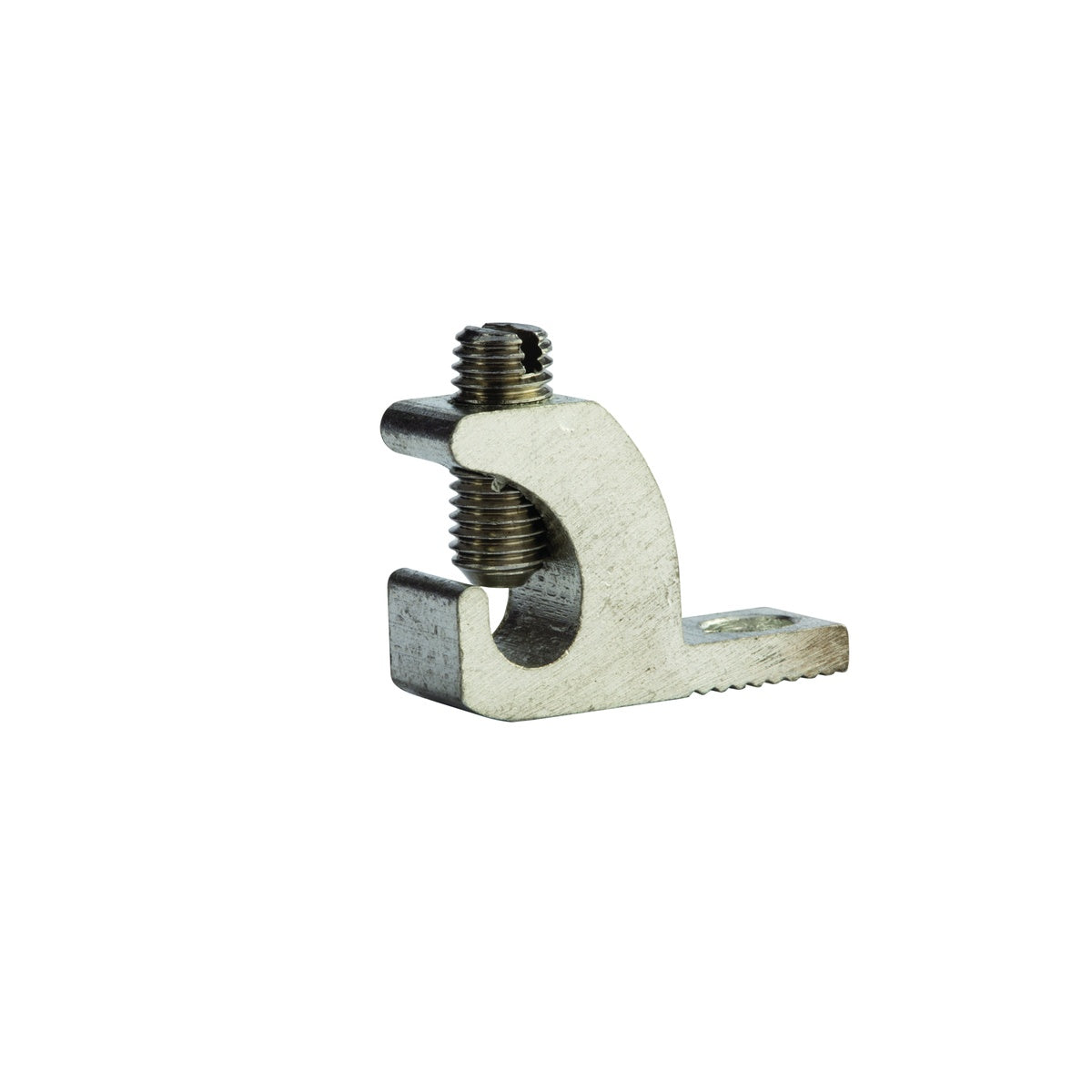

Aluminum Lay In Connector for 4-14 AWG
SKU: #304051
Part: #GLA-4
UPC: 662381001900
Aluminum Lay In Connector for 4-14 AWG
SKU: #304051
Part: #GLA-4
UPC: 662381001900
Description
Aluminum Lay In Connector for 4-14 AWG – Wire Termination Solutions
The Aluminum Lay In Connector for 4-14 AWG is designed for wire termination applications, providing reliable grounding and continuous loop connections. Manufactured from 6061T-6 aluminum alloy with a tin-plated finish, it ensures low contact resistance and compatibility with both copper and aluminum conductors. This connector is suitable for electrical distributors and switchgear suppliers requiring durable and UL 486A/B listed components rated for 600V and a maximum temperature of 90 degrees Celsius.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Tin-plated
- Color: Aluminum
- Wire Type: AL/CU
- Number of Conductors: 1
- Number of Poles: 1
- Voltage Rating: 600V (2000V max per UL486B)
- Temperature Rating: 90 degrees Celsius
- Dimensions (L x W x H): 1.07 in x 0.38 in x 0.75 in
- Product Weight: 2.0000
- Manufacturer: NSI Industries
- Manufacturer Part #: GLA-4
- Country of Origin: India
Features
- Electro-tin plated for low contact resistance
- Compatible with both copper and aluminum conductors
- UL 486A/B Listed for safety and reliability
- Excellent for grounding and continuous loop applications
- Constructed from durable 6061T-6 aluminum alloy
