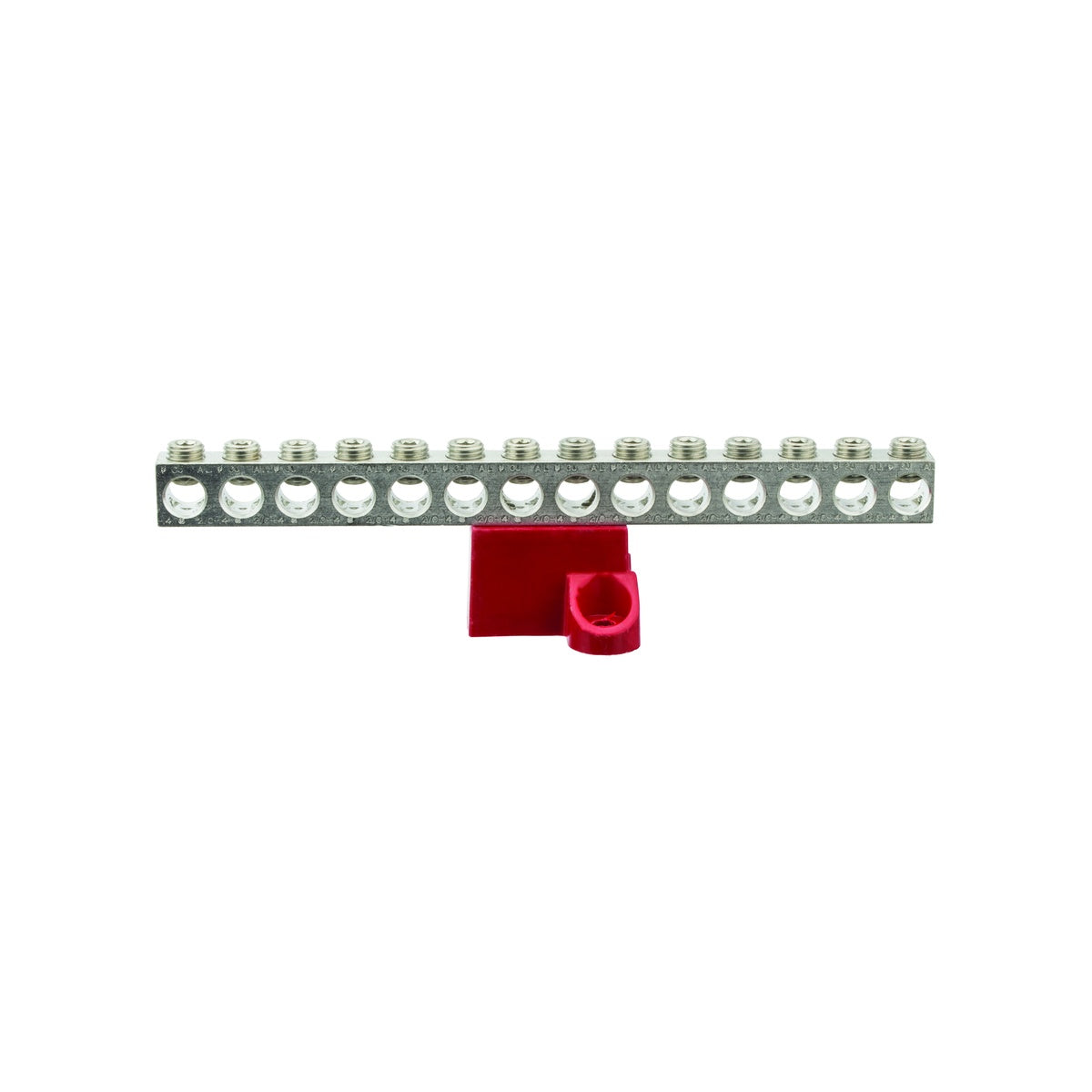

Aluminum Isolated Ground Bar, AL/CU 2/0-14 AWG Range, 14 Circuits – Grounding Bonding Bar

The NSI Aluminum Isolated Ground Bar (Model GBA20-14) is designed for reliable grounding and bonding applications within electrical distribution and lighting solutions. It supports up to 14 circuits and accommodates copper or aluminum cables ranging from 2/0 to 14 AWG. This grounding bar is suitable for use by electrical distributors and switchgear suppliers requiring durable and high-quality wire and cable grounding components.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: GBA20-14
• Conductor Material: Aluminum
• Conductor Size: 2/0-14 AWG
• Number of Circuits: 14
• Length: 8.81 in
• Height: 2.31 in
• Width: 2.13 in
• Insulation: Glass Filled Polyester Base
• Product Weight: 1.4 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• High-strength aluminum alloy 6061-T6 body, dual-rated for copper and aluminum cables
• Mounts on most surfaces using a durable glass-filled polyester base
• Simple tightening screw lug design for secure, reliable cable connections
• Supports up to 14 copper or aluminum cables within 2/0 to 14 AWG range
• Suitable for grounding and bonding applications in electrical wiring and switchgear
