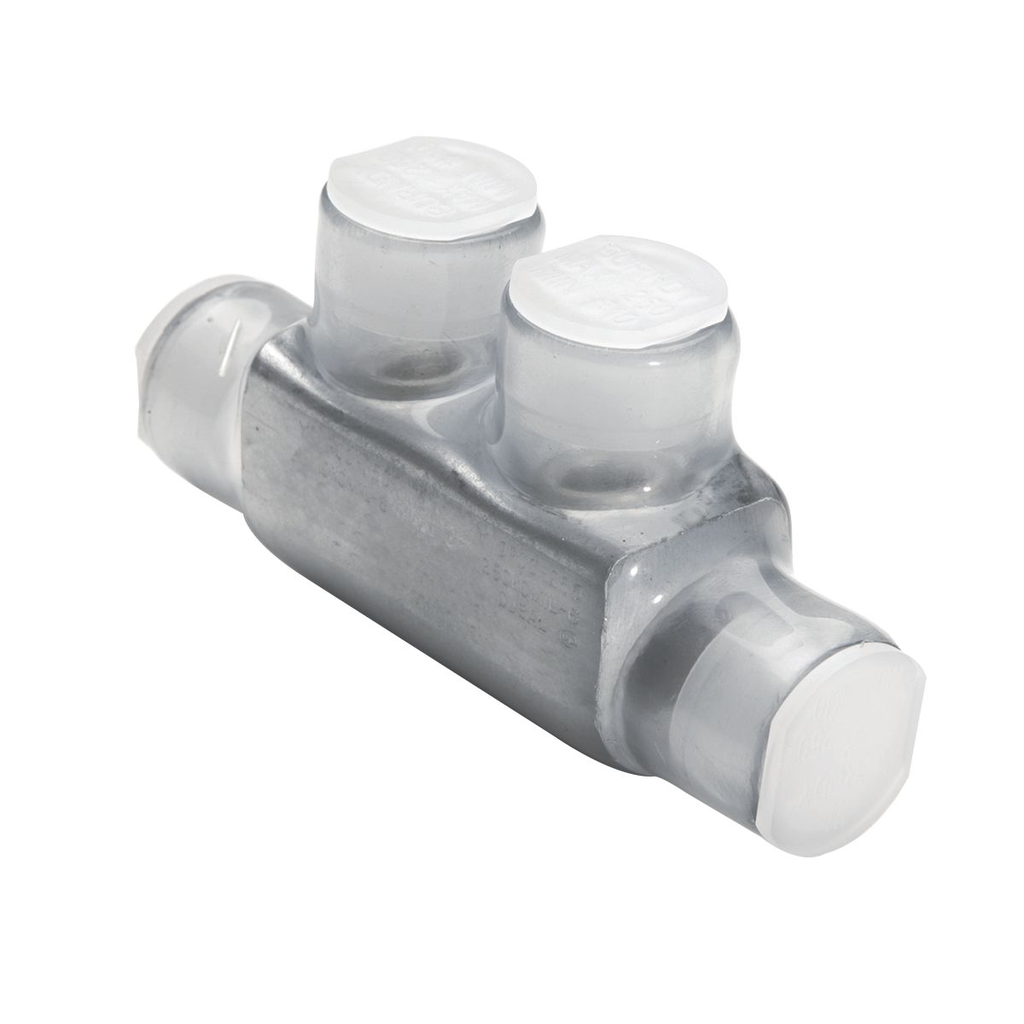

Aluminum In-Line Splice, 10 AWG-350 kcmil – Electrical Wire Connector

This Aluminum In-Line Splice is designed for indoor electrical applications, providing reliable connections for wire and cable in lighting solutions and electrical distribution. It is suitable for use by electrical distributors and switchgear suppliers requiring a durable splice for stranded copper or aluminum conductors ranging from 10 AWG to 350 kcmil. The product features plastisol insulation for moisture resistance and visual confirmation of conductor insertion.

Specifications

• Conductor Size: 10 AWG-350 KCMIL
• Connection Type: In-Line
• Material: Aluminum
• Insulation Type: Plastisol
• Width: 1.34 in (34 mm)
• Length Overall: 4.63 in (118 mm)
• Height: 2.35 in (60 mm)
• Number of Screws: 2
• Number of Ports: 2
• Maximum Voltage: 600 V
• Operating Voltage: 600 V
• Temperature Rating: 90 °C
• Application: For Indoor Use Only
• Made in USA: Yes

Features

• UL486B Listed, dual rated AL9CU for stranded copper and aluminum conductors
• Plastisol insulation offers moisture protection and allows visual confirmation of conductor insertion
• Aluminum hardware ensures corrosion resistance and durability
• Designed for easy installation on code conductor
