Morris Products
Aluminum H Tap #3-2/0 Run To #6-#1 Tap
SKU: #276545
Part: #90454
UPC: 601986904544
Morris Products
Aluminum H Tap #3-2/0 Run To #6-#1 Tap
SKU: #276545
Part: #90454
UPC: 601986904544
Description

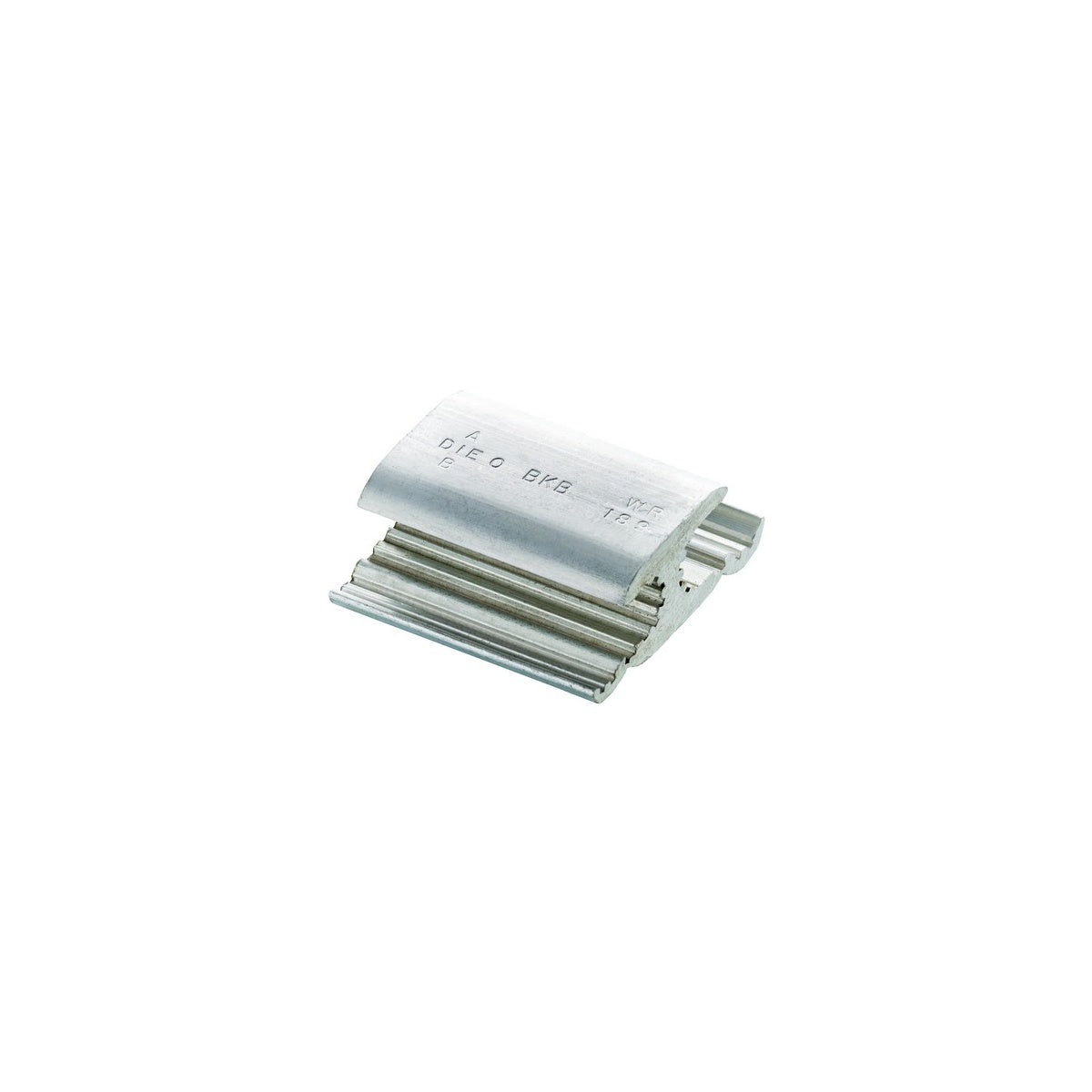

Aluminum H Tap #3-2/0 Run To #6-#1 Tap - Aluminum Compression Line Tap Connector
The Aluminum H Tap #3-2/0 Run To #6-#1 Tap is a high-conductivity aluminum compression line tap connector designed for electrical distributors and switchgear suppliers. It is suitable for securely splicing aluminum, copper, ACSR, and compact conductors, making it a reliable choice for wire and cable applications in lighting solutions and electrical distribution systems.
Specifications
- Material: Pure Aluminum
- Conductor Size: #2 - 2/0 Line, #6 - #2 Tap
- Conductivity: 57% IACS
- Temperature Rating: 90°C
- Voltage Rating: 600 V
- UL Certification: UL 486A
- CSA Certification: Yes
- Product Weight: 0.1410 lbs
- Manufacturer Part #: 90454
Features
- Universal, reversible H-shaped connector for versatile installation
- Bendable sidewall secures conductor for hands-free installation
- Manufactured from high-strength, high-conductivity pure aluminum
- Includes anti-oxidant compound to prevent corrosion
- Compatible with copper, aluminum, ACSR, and compact conductors
