Morris Products
Aluminum Ground Pipe Clamps 1/2"-1"
SKU: #276801
Part: #90633
UPC: 601986906333
Morris Products
Aluminum Ground Pipe Clamps 1/2"-1"
SKU: #276801
Part: #90633
UPC: 601986906333
Description

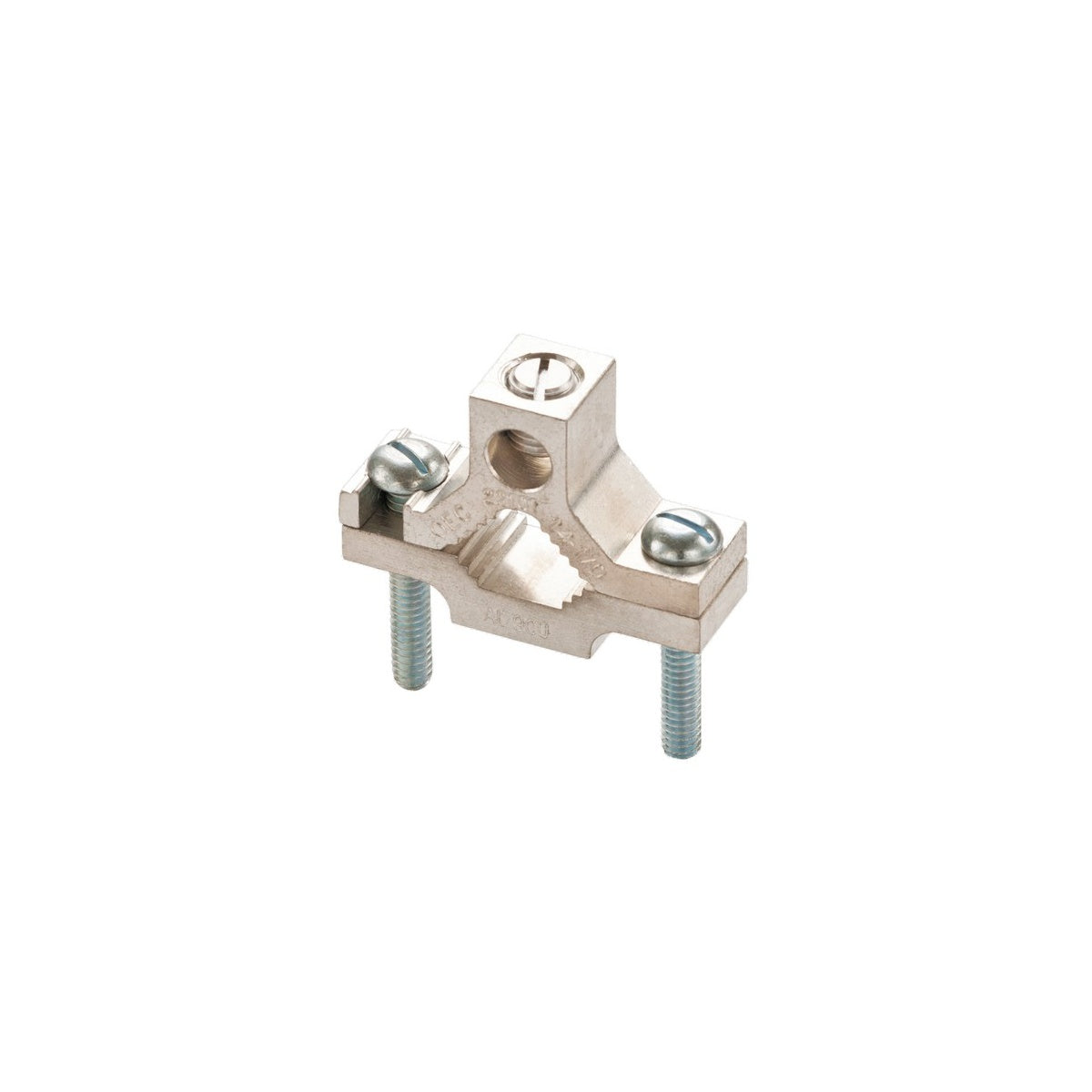

Aluminum Ground Pipe Clamps 1/2"-1" – Electrical Grounding Solutions
This aluminum ground pipe clamp is designed for secure grounding connections in electrical distribution systems. Suitable for grounding pipes, conduits, and ground rods, it supports conductor sizes from #14 to 1/0. Ideal for use by electrical distributors and switchgear suppliers requiring reliable grounding components in lighting and wire and cable installations.
Specifications
- Pipe Size: 1/2" - 1"
- Material: Aluminum Alloy
- Screw Thread: 7/16" x 0.55"
- Bottom Screw: 1/4" x 1.50"
- Conductor Range: #14 - 1/0
- Voltage Rating: 600 V
- Product Weight: 0.2270 lbs
- Box Quantity: 25
- Certifications: UL 467 Direct Burial, cUL Listed, RoHS Compliant
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Electro-tin plated for corrosion resistance
- Equipped with stainless steel screws for durability
- Compatible with ground rods, water pipes, and conduit applications
- Supports a wide conductor capacity range from #14 to 1/0
