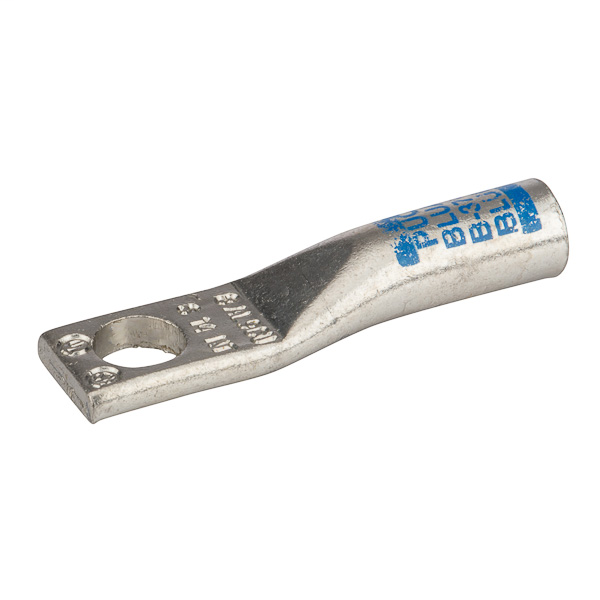

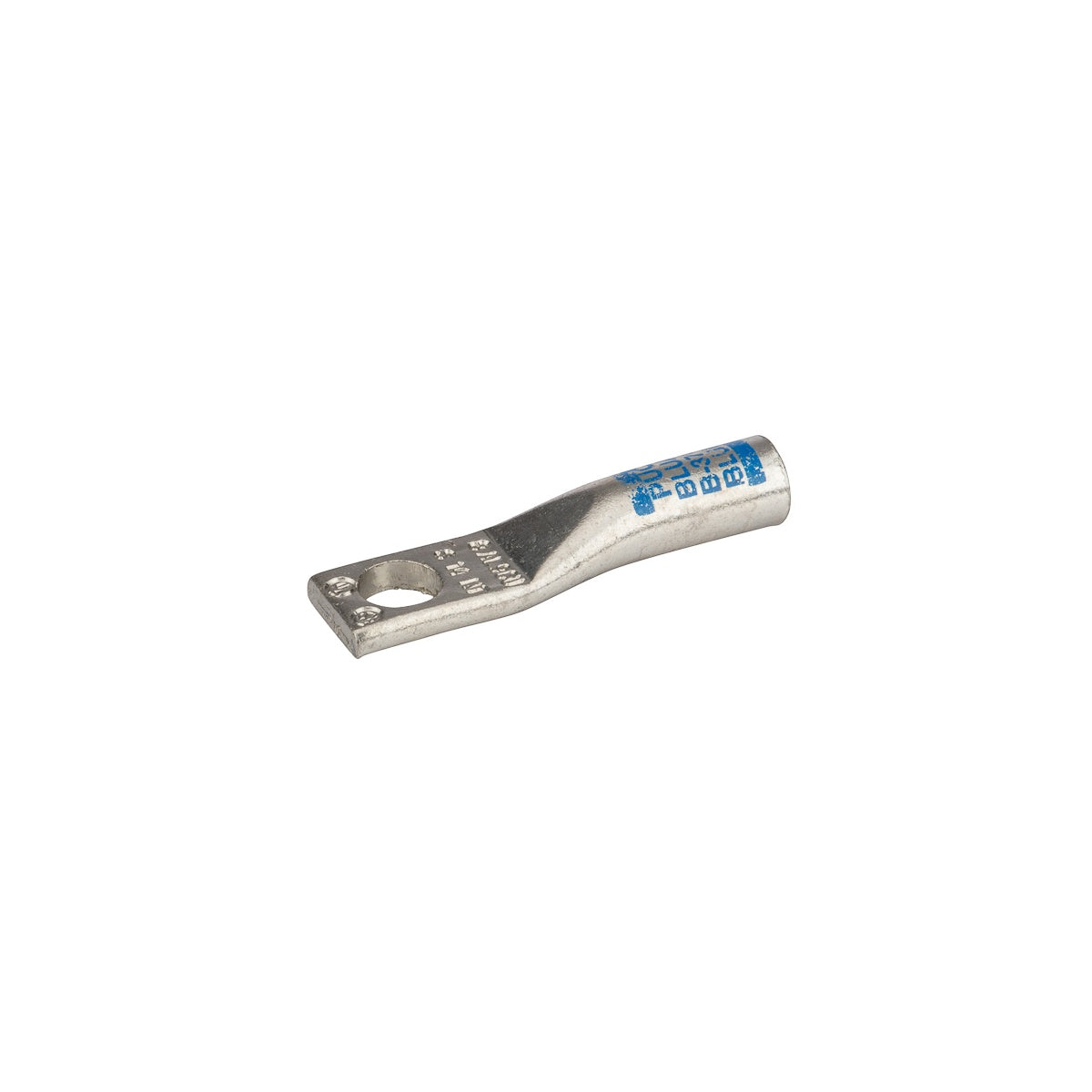

Aluminum Compression Lug 8 AWG - Electrical Connector

The Aluminum Compression Lug 8 AWG is designed for secure electrical connections in wire and cable applications. Manufactured by NSI Industries, this lug is suitable for electrical distributors and switchgear suppliers requiring reliable aluminum connectors. It features a one-hole design with a 1/4" bolt size, enabling efficient termination of 8 AWG cables. The lug is electro-tin plated for corrosion resistance and pre-filled with oxide inhibitor, ensuring long-term durability in electrical installations.

Specifications

• Manufacturer Part #: AL8-14
• Material: Aluminum
• Cable Size: 8 American Wire Gauge (AWG)
• Color: Blue
• Number of Holes: 1
• Bolt Size: 1/4 inch
• Length: 1.549 inches
• Width: 0.41 inches
• Height: 0.302 inches
• Product Weight: 0.1920 lbs
• Environmental Temperature Rating: 90 °C
• Voltage Rating: 600V max (2000V max per UL486B)
• UL Listings: cULus Listed for Wire Connector, UL486A/B Listed, UL Listed to 35kV when properly installed

Features

• Produced from high conductivity aluminum tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die index information
• Pre-filled with oxide inhibitor and capped with color coded cap
• Dual rated for use with aluminum and copper conductors
• Compatible with crimp tools N1240 and N121D
• Listed for 35kV maximum when properly installed to cable manufacturer specifications
