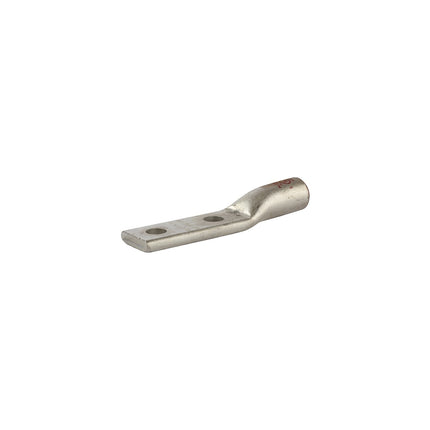

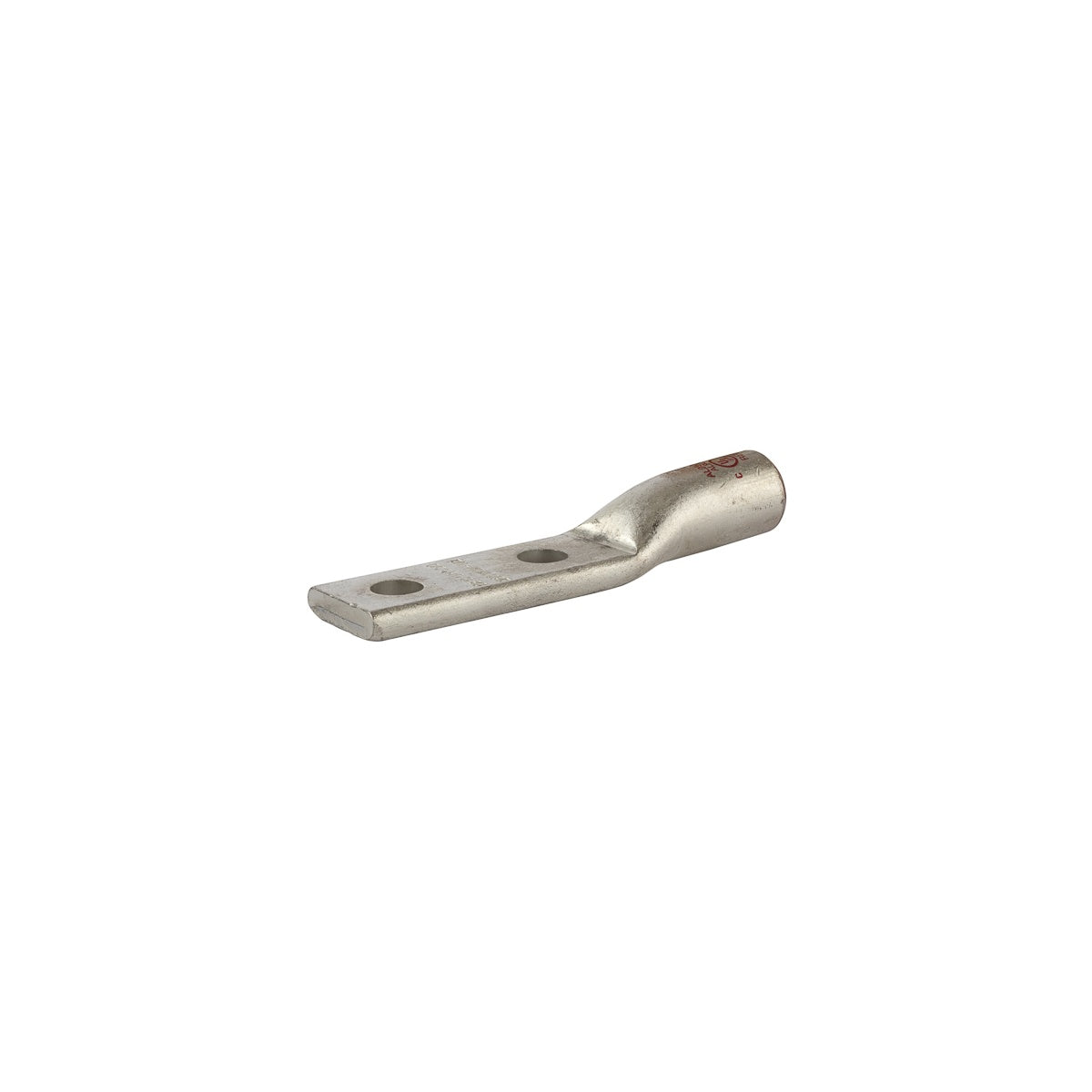

Aluminum Compression Lug 750 MCM – Electrical Connector

This Aluminum Compression Lug 750 MCM is designed for secure electrical connections in wire and cable installations. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable compression connectors for aluminum and copper conductors. The lug supports cable sizes up to 750 thousand circular mils and is color-coded yellow for easy identification in lighting solutions and electrical distribution systems.

Specifications

• Material: Aluminum
• Cable Size: 750 thousand circular mils
• Bolt Size: 1/2 inch
• Number of Holes: 2
• Hole Spacing: 1 3/4 inches
• Length: 7.37 inches
• Width: 2.189 inches
• Height: 1.6 inches
• Color: Yellow
• Temperature Rating: 90 °C
• Voltage Rating: 600V max (2000V max per UL486B)
• UL Listings: cULus Listed, UL486A/B Listed, UL Listed to 35kV when properly installed
• Manufacturer Part Number: AL750N
• Product Weight: 2.4 lbs

Features

• Produced from high conductivity aluminum tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die index information
• Pre-filled with oxide inhibitor and capped with color coded cap
• Dual rated for use with aluminum and copper conductors
• Listed for 35kV maximum when properly installed to cable manufacturer’s specifications
