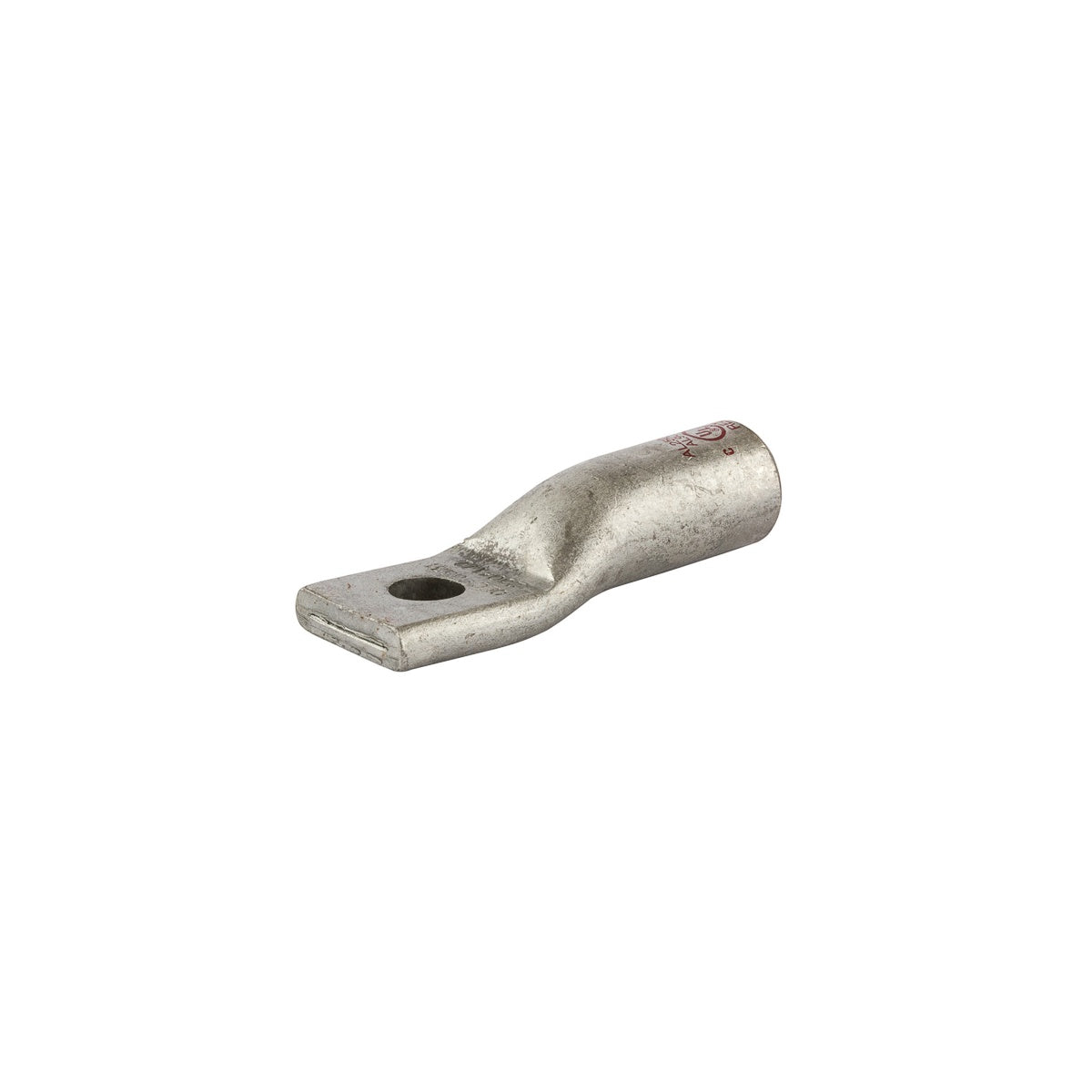

Aluminum Compression Lug 750 MCM – Electrical Wire Connector

This Aluminum Compression Lug 750 MCM is designed to terminate, splice, and tap power connectors in electrical distribution systems. Manufactured by NSI Industries, it serves as a reliable component for electrical distributors and switchgear suppliers requiring durable and efficient wire and cable connections. Its aluminum construction and electro-tin plating provide corrosion resistance, suitable for use in lighting solutions and general electrical applications.

Specifications

• Material: Aluminum
• Cable Size: 750 thousand circular mils
• Mounting: 1/2 Mounting Hole
• Number of Holes: 1
• Color: Yellow
• Dimensions (L x W x H): 6.118 in x 2.189 in x 1.598 in
• Product Weight: 1.92 lbs
• Environmental Conditions: Rated for 90 °C
• Manufacturer Part #: AL750-48
• Voltage Rating: 600V max (2000V max per UL486B)
• Temperature Rating: 90 °C AL9CU
• UL Listings: cULus Listed for Wire Connector, UL486A/B Listed, UL Listed to 35kV when properly installed

Features

• Produced from high conductivity aluminum tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die index information
• Pre-filled with oxide inhibitor and capped with color coded cap
• Dual rated for use with aluminum and copper conductors
• Compatible with crimp tools N1240 and N121D
• Listed for 35kV maximum when properly installed according to cable manufacturer specifications
