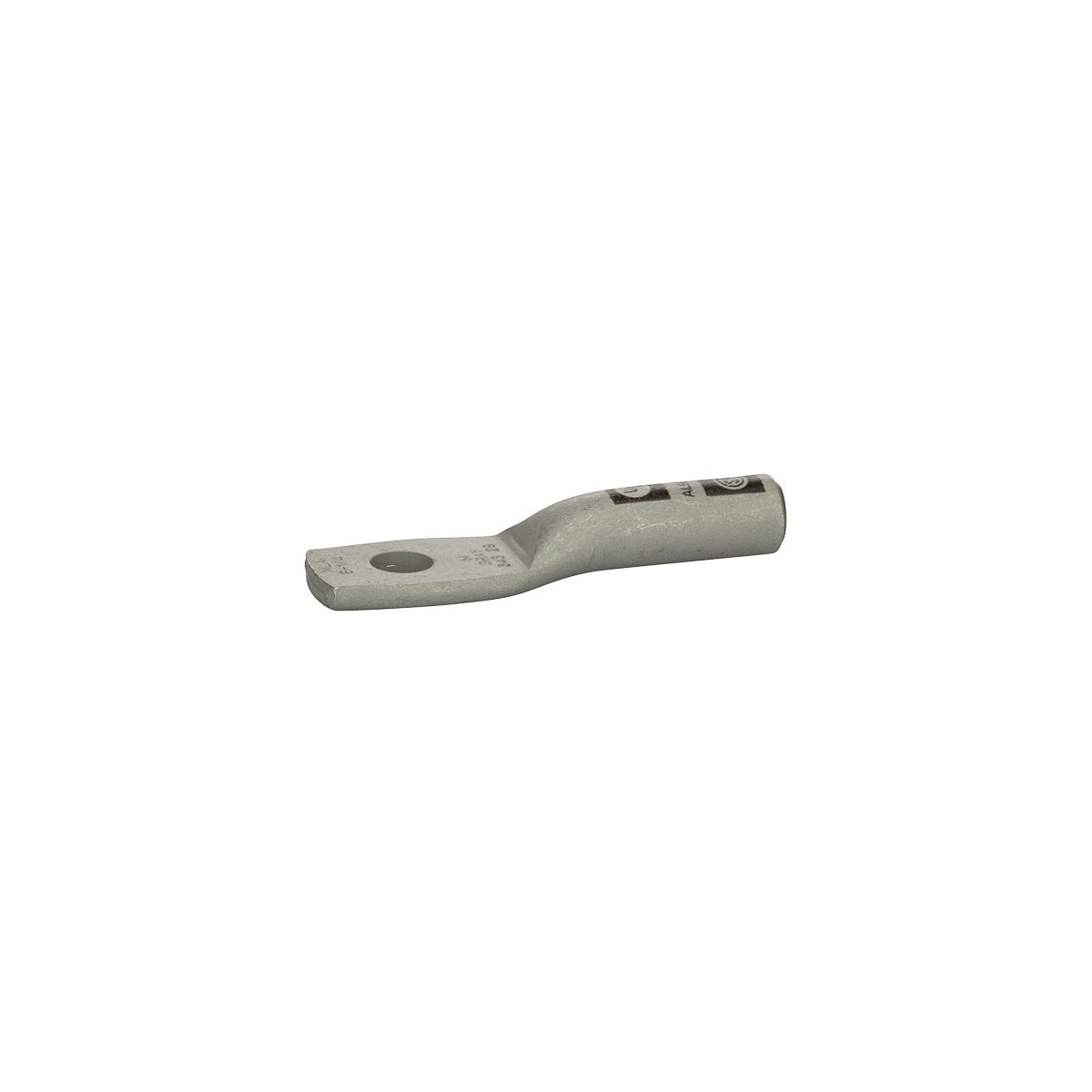

Aluminum Compression Lug 6 AWG – Electrical Connector

This Aluminum Compression Lug 6 AWG is designed for reliable electrical connections in wire and cable applications. Manufactured by NSI Industries, it serves as a durable component for electrical distributors and switchgear suppliers requiring high conductivity and corrosion resistance. The lug is suitable for use with both aluminum and copper conductors and is ideal for lighting solutions and general electrical wiring systems.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: AL6-14
• Cable Size: 6 American Wire Gauge (AWG)
• Bolt Size: 1/4 inch
• Material: Aluminum
• Color: Gray
• Length: 2.008 inches
• Width: 0.567 inches
• Height: 0.339 inches
• Number of Holes: 1
• Product Weight: 0.2160 lbs
• Temperature Rating: 90 °C
• Voltage Rating: 600V max (2000V max per UL486B)
• UL Listings: cULus Listed for Wire Connector, UL486A/B Listed

Features

• Produced from high conductivity aluminum tubing for optimal electrical performance
• Electro-tin plated for enhanced corrosion resistance
• Color coded gray for easy identification
• Pre-filled with oxide inhibitor and capped with color-coded cap to prevent oxidation
• Dual rated for use with aluminum and copper conductors
• Listed for 35kV maximum when properly installed according to cable manufacturer specifications
• Compatible with crimp tools N1240 and N121D
