Aluminum Compression Lug 4/0 AWG
SKU: #303781
Part: #AL4/0N
UPC: 662381031037
Aluminum Compression Lug 4/0 AWG
SKU: #303781
Part: #AL4/0N
UPC: 662381031037
Description

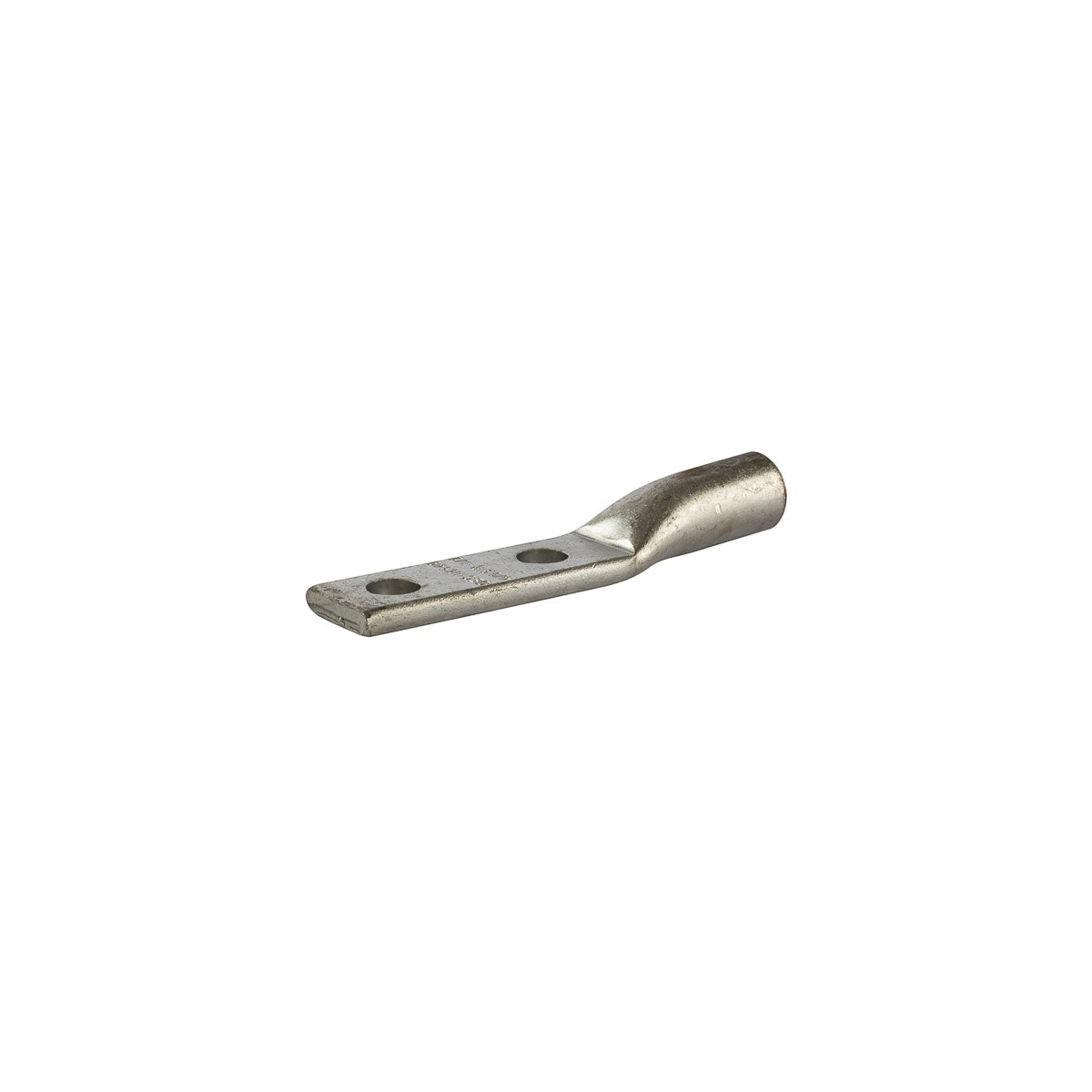

Aluminum Compression Lug 4/0 AWG – Electrical Connector
This Aluminum Compression Lug 4/0 AWG is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, it provides a reliable connection solution for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant components.
Specifications
- Material: Aluminum
- Cable Size: 4/0 AWG (STR)
- Color: White
- Mounting: 1/2" Mounting Holes
- Number of Holes: 2
- Hole Spacing: 1 3/4"
- Bolt Size: 1/2"
- Length: 5.248 in
- Width: 1.15 in
- Height: 0.84 in
- Product Weight: 2.16 lbs
- Environmental Conditions: 90 °C temperature rating
- Voltage Rating: 600V max (2000V max per UL486B)
- UL Listings: cULus Listed for Wire Connector, UL486A/B Listed, UL Listed to 35kV when properly installed
- Manufacturer Part #: AL4/0N
Features
- Produced from high conductivity aluminum tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die index information
- Pre-filled with oxide inhibitor and capped with color coded cap
- Dual rated for use with aluminum and copper conductors
- Designed for use with NSI N1240 and N121D crimp tools
- Listed for 35kV maximum when properly installed to cable manufacturer specifications
