Aluminum Compression Lug 3/0 AWG
SKU: #303768
Part: #AL3/0-38
UPC: 662381030085
Aluminum Compression Lug 3/0 AWG
SKU: #303768
Part: #AL3/0-38
UPC: 662381030085
Description

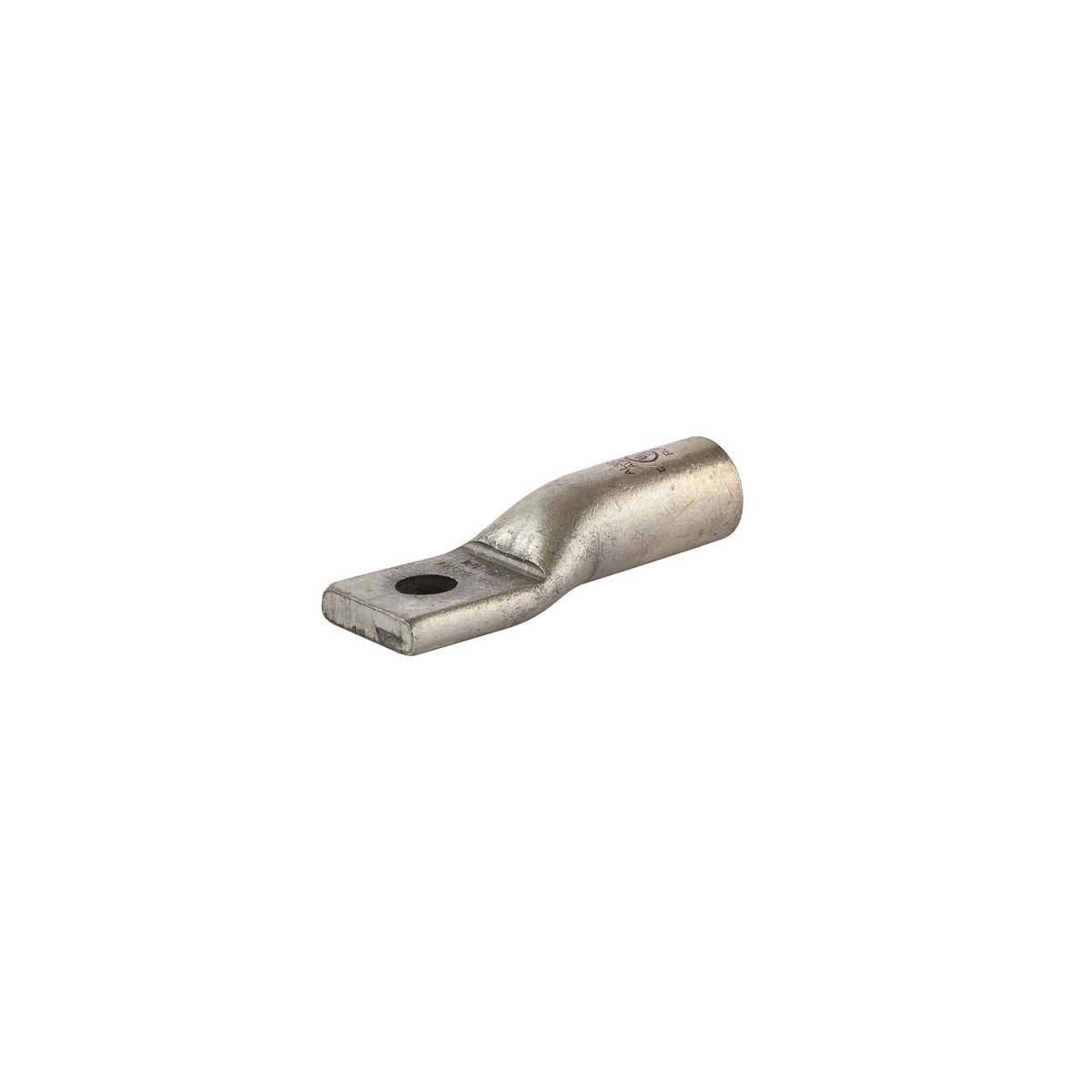

Aluminum Compression Lug 3/0 AWG – Electrical Wire Connector
This Aluminum Compression Lug 3/0 AWG by NSI Industries is designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. It serves as a reliable connector for wire and cable applications, suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient connections.
Specifications
- Material: Aluminum
- Cable Size: 3/0 AWG (STR)
- Mounting: 3/8 Mounting Hole
- Number of Holes: 1
- Color: Ruby
- Length: 3 in
- Width: 1.028 in
- Height: 0.76 in
- Product Weight: 0.8880 lbs
- Environmental Conditions: 90 °C temperature rating
- Manufacturer Part #: AL3/0-38
Features
- Produced from high conductivity aluminum tubing
- Electro-tin plated for corrosion resistance
- Color coded with die index marking for easy identification
- Pre-filled with oxide inhibitor and capped with color coded cap
- Dual rated for use with aluminum and copper conductors
- UL Listed for wire connector applications, rated up to 35kV when properly installed
- Compatible with crimp tools N1240 and N121D
- Voltage rating: 600V max (2000V max per UL486B)
