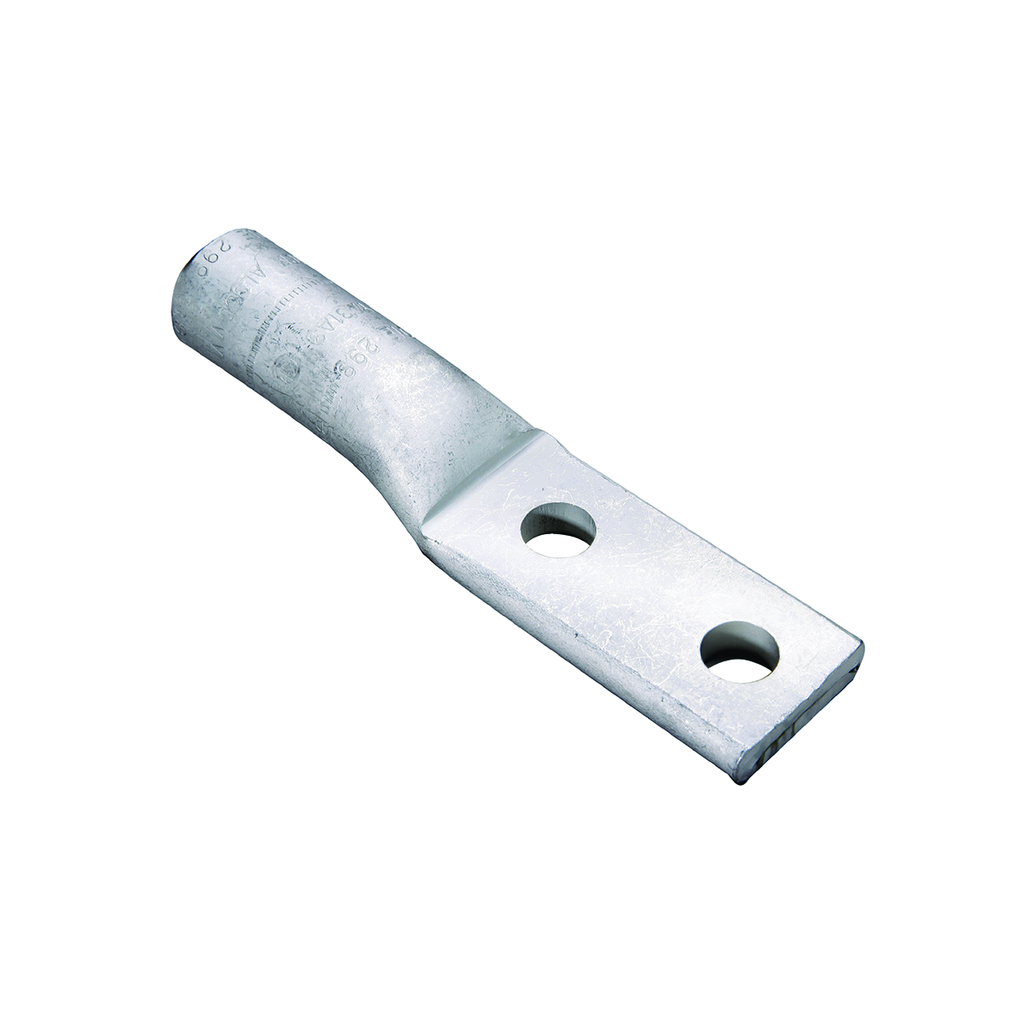

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 750 kcmil, 1/2" Stud, Electrical Compression Lug

This aluminum compression lug is designed for wire termination applications, suitable for use in electrical distribution and lighting solutions. It accommodates 700 to 750 kcmil aluminum or copper stranded conductors and is rated for a maximum voltage of 35,000 volts. The lug features a 2-hole design without an inspection window, compatible with a 1/2" stud and 1-3/4" stud hole spacing. Tin-plated for corrosion resistance, it supports reliable connections in wire and cable terminations within switchgear and electrical systems.

Specifications

• Material: Aluminum
• Conductor Size: 700 thousand circular mils
• Application: Wire Termination
• Stud Size: 1/2 inch
• Hole Size: 14 millimeters (approx. 0.56 inch)
• Number of Holes: 2
• Color Coding: Yellow
• Color Code: Yellow
• Max. Voltage: 35000 volts
• Connection Type: Terminal
• Product Weight: 0.7000 (unit not specified)
• Plating: Tin Plated (Electro Plated)
• UL Listed: Yes
• CSA Certified: Yes

Features

• Al/Cu rated for compatibility with aluminum and copper conductors
• Tin plating provides corrosion resistance
• Two-hole design without inspection window for secure mechanical connection
• Suitable for high voltage applications up to 35,000 volts
• Color-coded yellow for easy identification and installation
• Manufactured by Burndy, a recognized switchgear supplier and electrical distributor
