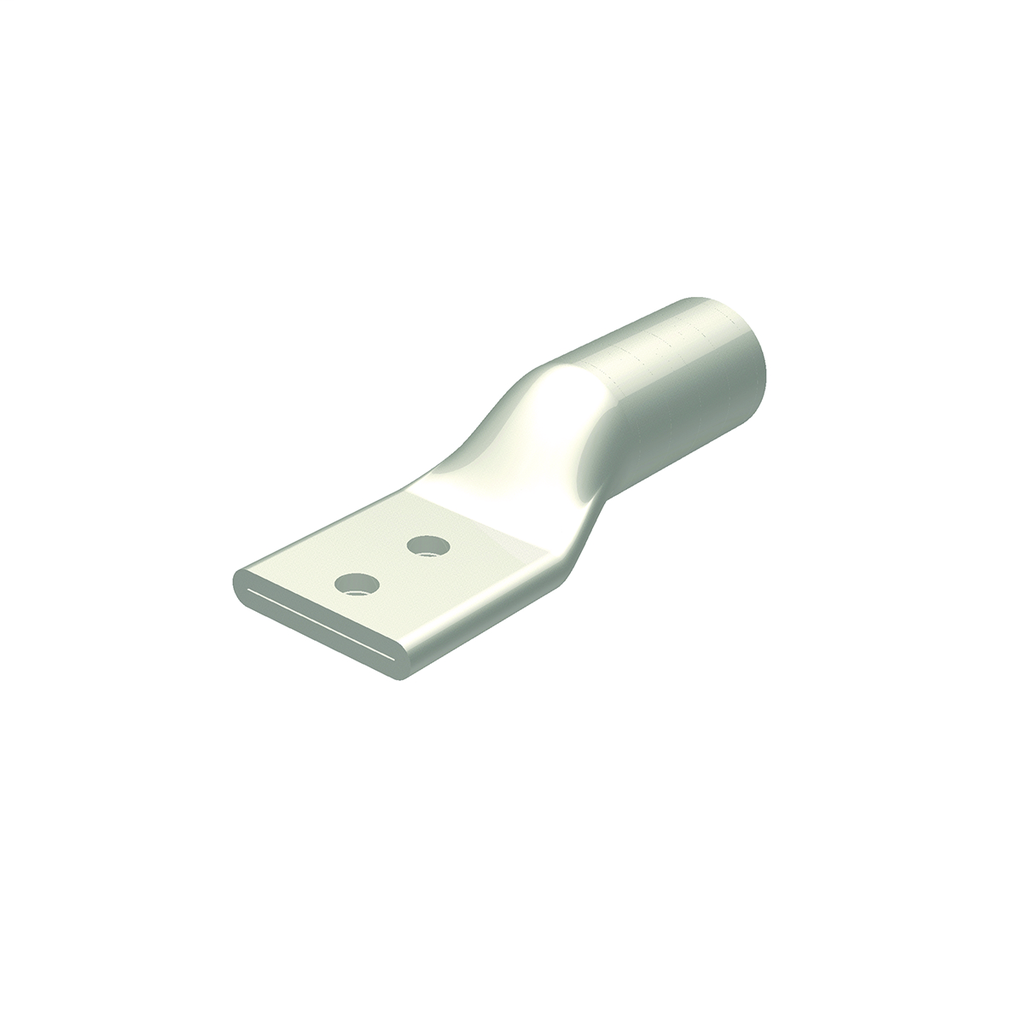

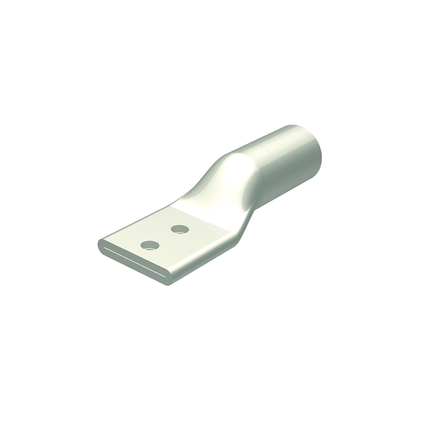

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 250 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Tin Plated
SKU: #332138
Part: #YA29A3
UPC: 781810755006
Aluminum Compression Lug, 2 Hole w/o Inspection Window, 250 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Tin Plated
SKU: #332138
Part: #YA29A3
UPC: 781810755006
Description
Aluminum Compression Lug, 2 Hole w/o Inspection Window, 250 kcmil, 1/2" Stud - Wire Termination Lug
This aluminum compression lug is designed for reliable wire termination applications, suitable for electrical distributors and switchgear suppliers requiring secure cable connections. It accommodates 250 kcmil aluminum conductors and features a 2-hole design without an inspection window, optimized for use with 1/2" studs. The lug is tin plated to ensure corrosion resistance and durability in electrical and lighting solutions.
Specifications
- Material: Aluminum
- Application: Wire Termination
- Conductor Size: 250 thousand circular mils
- Stud Size: 1/2 inch
- Number of Holes: 2
- Hole Size: 14 millimeters
- Stud Hole Spacing: 1-3/4 inches
- Max. Voltage: 35000 volts
- Color Code: Red
- Color Coding: Red
- Connection Type: Terminal
- Product Weight: 0.2000 lbs
- Plating: Tin Electroplated
- UL Listed: Yes
- CSA Certified: Yes
- RoHS Compatible: Compliant
Features
- Tin plated for enhanced corrosion resistance and electrical conductivity.
- Designed for use with 1/2" studs, ensuring secure mechanical and electrical connection.
- Color-coded red for easy identification and installation.
- Meets industry standards UL468A-468B for compression lugs.
- Compatible with aluminum conductors sized 250 kcmil.
- UL listed and CSA certified for safety and performance assurance.
