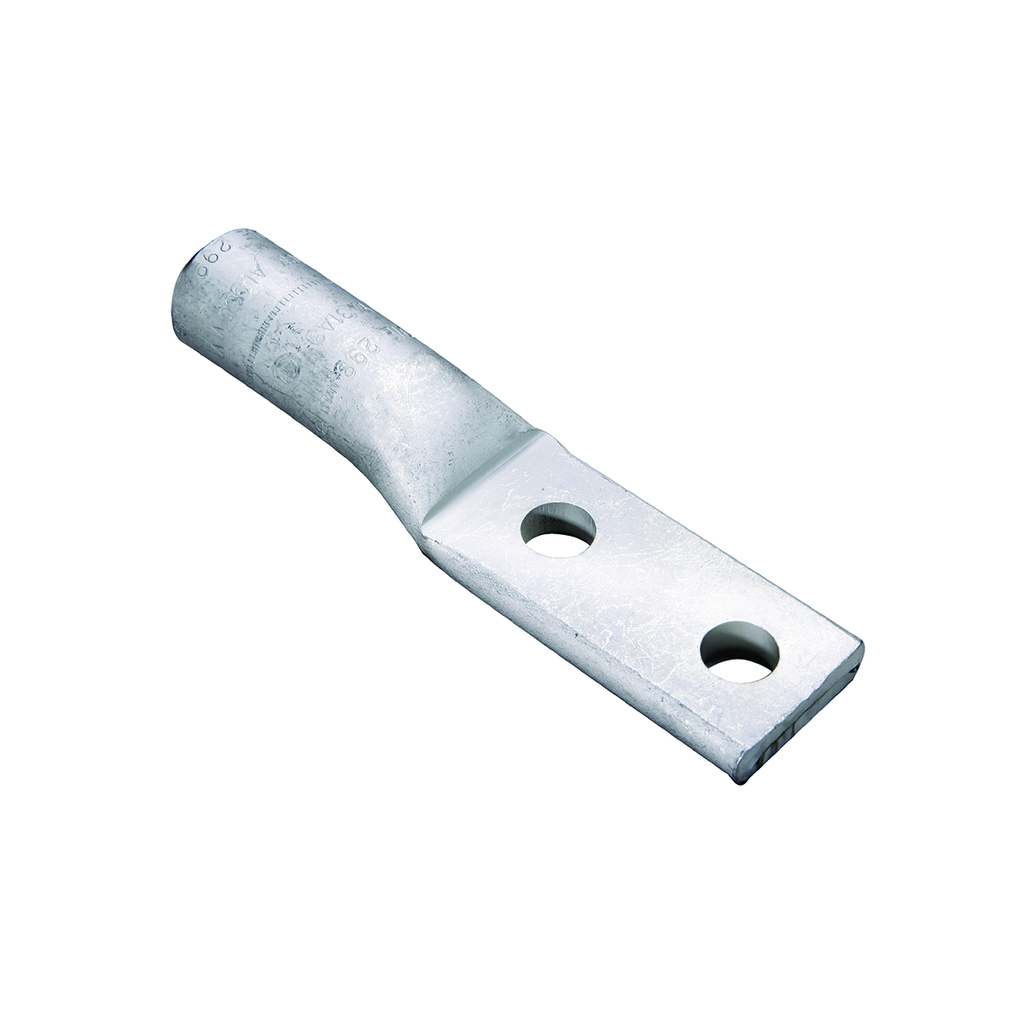

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 2 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated
SKU: #332160
Part: #YA2CA9
UPC: 781810036730
Aluminum Compression Lug, 2 Hole w/o Inspection Window, 2 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated
SKU: #332160
Part: #YA2CA9
UPC: 781810036730
Description
Aluminum Compression Lug, 2 Hole w/o Inspection Window, 2 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated – Wire Termination Lug
This aluminum compression lug is designed for wire termination applications in electrical distribution and wire and cable systems. It provides a secure and reliable connection for 2 AWG conductors with a 1/2" stud size and 1-3/4" stud hole spacing. Suitable for use by electrical distributors and switchgear suppliers, it features a short barrel and tin plating to ensure corrosion resistance and optimal conductivity.
Specifications
- Material: Aluminum
- Conductor Size: 2 American Wire Gauge (AWG)
- Connection Type: Terminal
- Hole Size: 14 millimeters
- Number of Holes: 2
- Stud Size: 1/2 inch
- Stud Hole Spacing: 1-3/4 inch
- Max. Voltage: 35000 volts
- Color Coding: Pink
- Color Code: Pink
- Product Weight: 0.0600 lbs
- Plating: Tin Plated (Electro Plated)
- UL Listed: Yes
- CSA Certified: Yes
- RoHS Compatible: Compliant
- Industry Standards: UL468A-468B
- Length: 4.73 inches
- Thickness: 0.16 inches
- B Length: 1.12 inches
- Pad Width: 0.88 inches
- E Length: 1.75 inches
- Strip Length: 1-1/8 inches
Features
- Two-hole design without inspection window for secure mounting
- Short barrel design for compact installation
- Tin electroplated finish for enhanced corrosion resistance
- Color-coded pink to match crimp die for installation accuracy
- Compatible with Burndy installation tooling (die index 348)
- UL and CSA certified for safety and performance
- Pre-filled with Penetrox™ for improved electrical contact
- Accommodates U.S. standard washers
