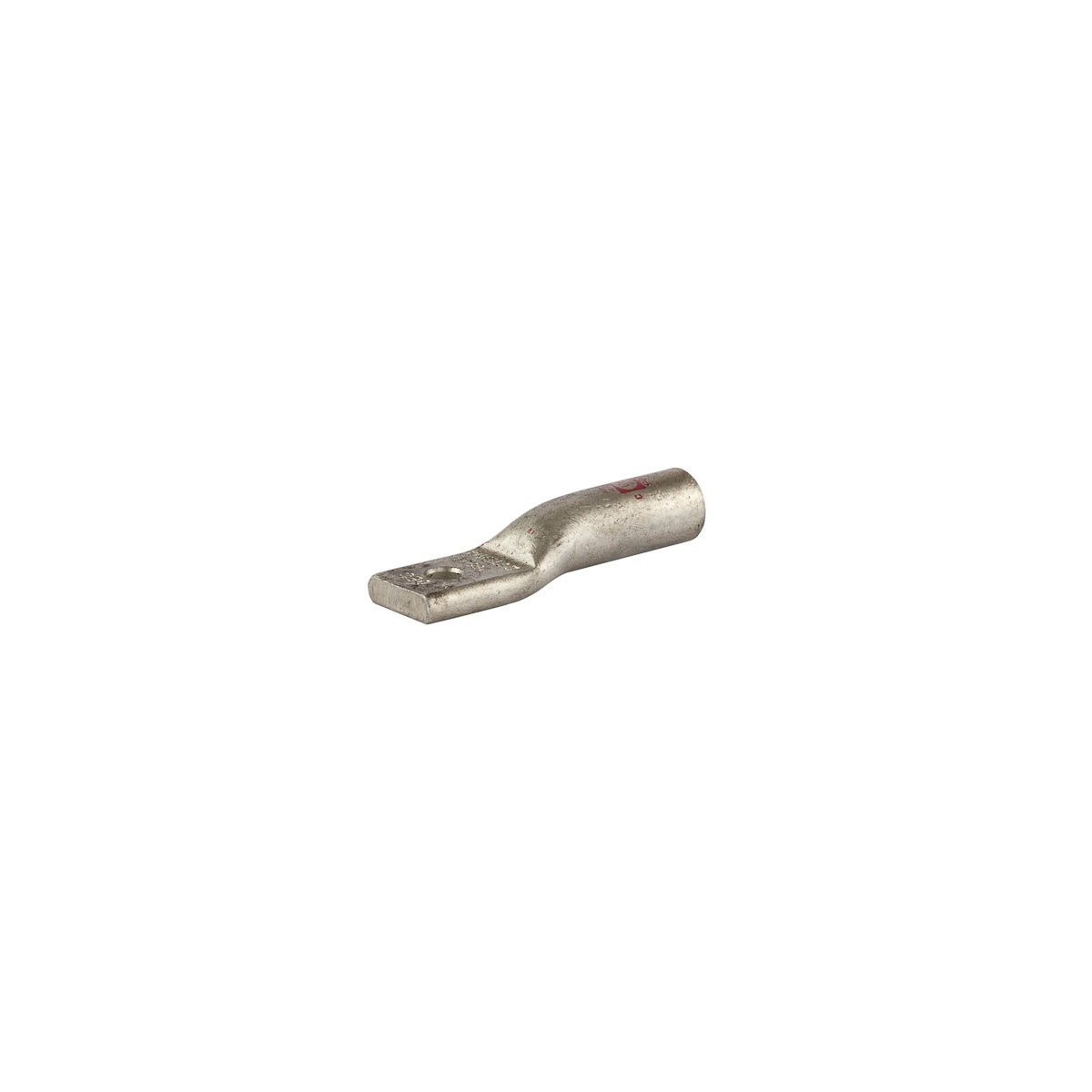

Aluminum Compression Lug 2 AWG – Electrical Wire Connector

This Aluminum Compression Lug 2 AWG is designed for terminating, splicing, and tapping power connectors. It is suitable for use in electrical distribution and lighting solutions where reliable wire and cable connections are required. The lug is manufactured by NSI Industries and is a key component for switchgear suppliers and electrical distributors needing durable and corrosion-resistant connectors.

Specifications

• Material: Aluminum
• Cable Size: #2 AWG (STR)
• Color: Pink
• Mounting: 1/4" Mounting Hole
• Number of Holes: 1
• Dimensions (L x W x H): 2.5 in x 0.709 in x 0.532 in
• Product Weight: 0.6240 lbs
• Environmental Conditions: Rated for 90 °C
• Manufacturer Part #: AL2-14

Features

• Produced from high conductivity aluminum tubing for efficient electrical performance
• Electro-tin plated for corrosion resistance
• Color coded pink for easy identification
• Pre-filled with oxide inhibitor and capped with color-coded cap to prevent corrosion
• Dual rated for use with aluminum and copper conductors
• UL Listed for wire connector and rated for 600V max (2000V max per UL486B)
• Temperature rating of 90 °C (AL9CU)
• Compatible with crimp tools N1240 and N121D
• Listed for 35kV maximum when properly installed according to cable manufacturer specifications
