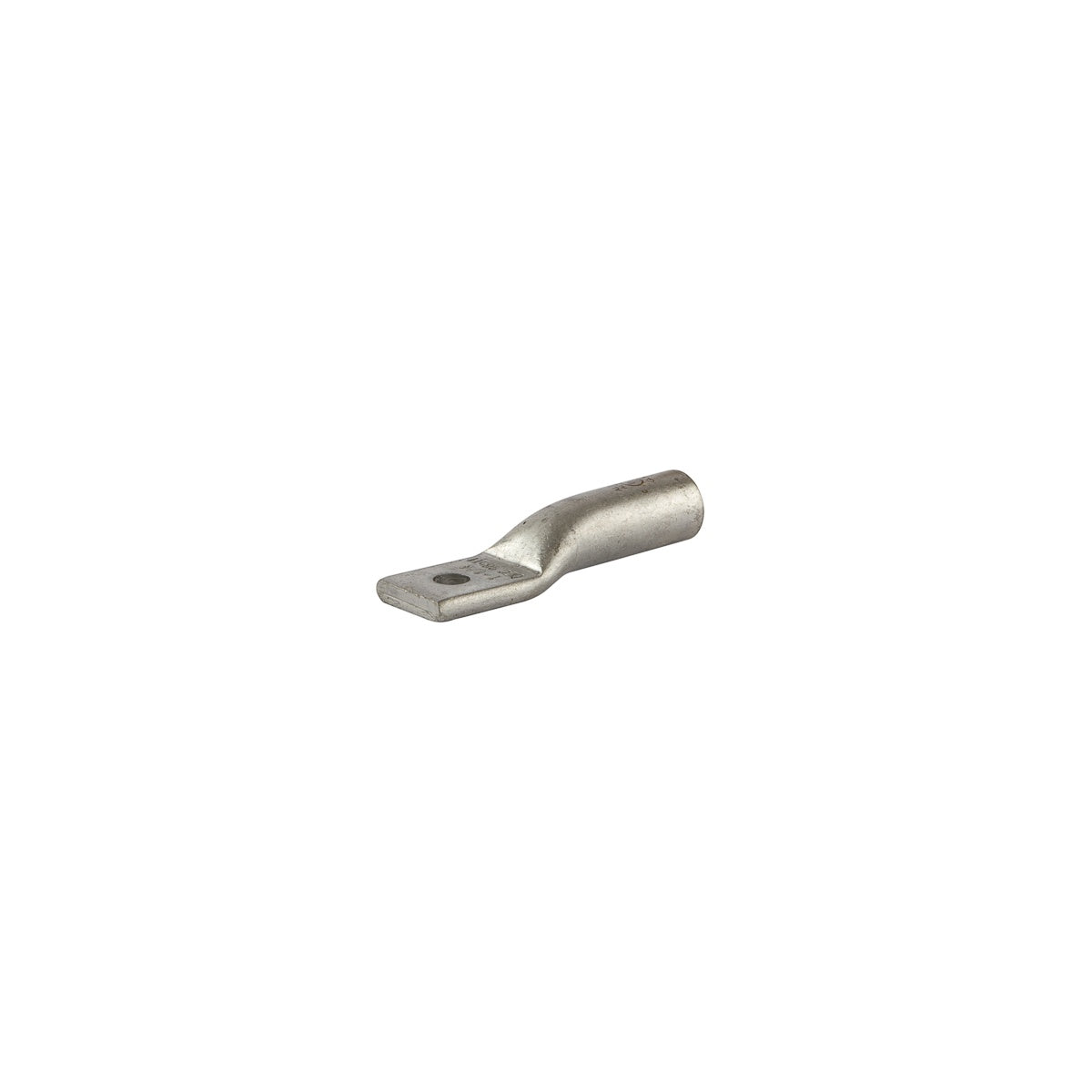

Aluminum Compression Lug 1 AWG
SKU: #303747
Part: #AL1-14
UPC: 662381030030
Aluminum Compression Lug 1 AWG
SKU: #303747
Part: #AL1-14
UPC: 662381030030
Description
Aluminum Compression Lug 1 AWG – Electrical Connector
The Aluminum Compression Lug 1 AWG is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, this lug provides reliable connectivity for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant components. It is suitable for use with both aluminum and copper conductors, supporting up to 90°C operating temperature.
Specifications
- Material: Aluminum
- Color: Gold
- Cable Size: #1 AWG (STR)
- Mounting: 1/4" Mounting Hole
- Number of Holes: 1
- Dimensions (L x W x H): 2.5 in x 0.728 in x 0.532 in
- Product Weight: 0.8400 lbs
- Environmental Conditions: 90°C Temperature Rating
- Manufacturer Part #: AL1-14
- UPC: 662381030030
Features
- Produced from high conductivity aluminum tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die index information
- Pre-filled with oxide inhibitor and capped with color coded cap
- Dual rated for use with Aluminum and Copper conductors
- UL Listed for wire connector applications
- Compatible with crimp tools N1240 and N121D
- Rated for 600V max (2000V max per UL486B)
- Listed to 35kV when properly installed to cable manufacturer specifications
