ALLIED TUBE AND CONDUIT PS-200-EH-10-PG PS 200 EH 1 5/8 IN. X 1 5/8 IN. X 12 GA. CHANNEL WITH 1 1/8 IN. X 9/16 IN. ELONGATED HOLES ON 2 IN. CENTERS
SKU: #317099
Part: #PS200EH10
UPC: 702316501027
ALLIED TUBE AND CONDUIT PS-200-EH-10-PG PS 200 EH 1 5/8 IN. X 1 5/8 IN. X 12 GA. CHANNEL WITH 1 1/8 IN. X 9/16 IN. ELONGATED HOLES ON 2 IN. CENTERS
SKU: #317099
Part: #PS200EH10
UPC: 702316501027
Description
ALLIED TUBE AND CONDUIT PS-200-EH-10-PG PS 200 EH 1 5/8 IN. X 1 5/8 IN. X 12 GA. CHANNEL WITH 1 1/8 IN. X 9/16 IN. ELONGATED HOLES ON 2 IN. CENTERS - Steel Channel

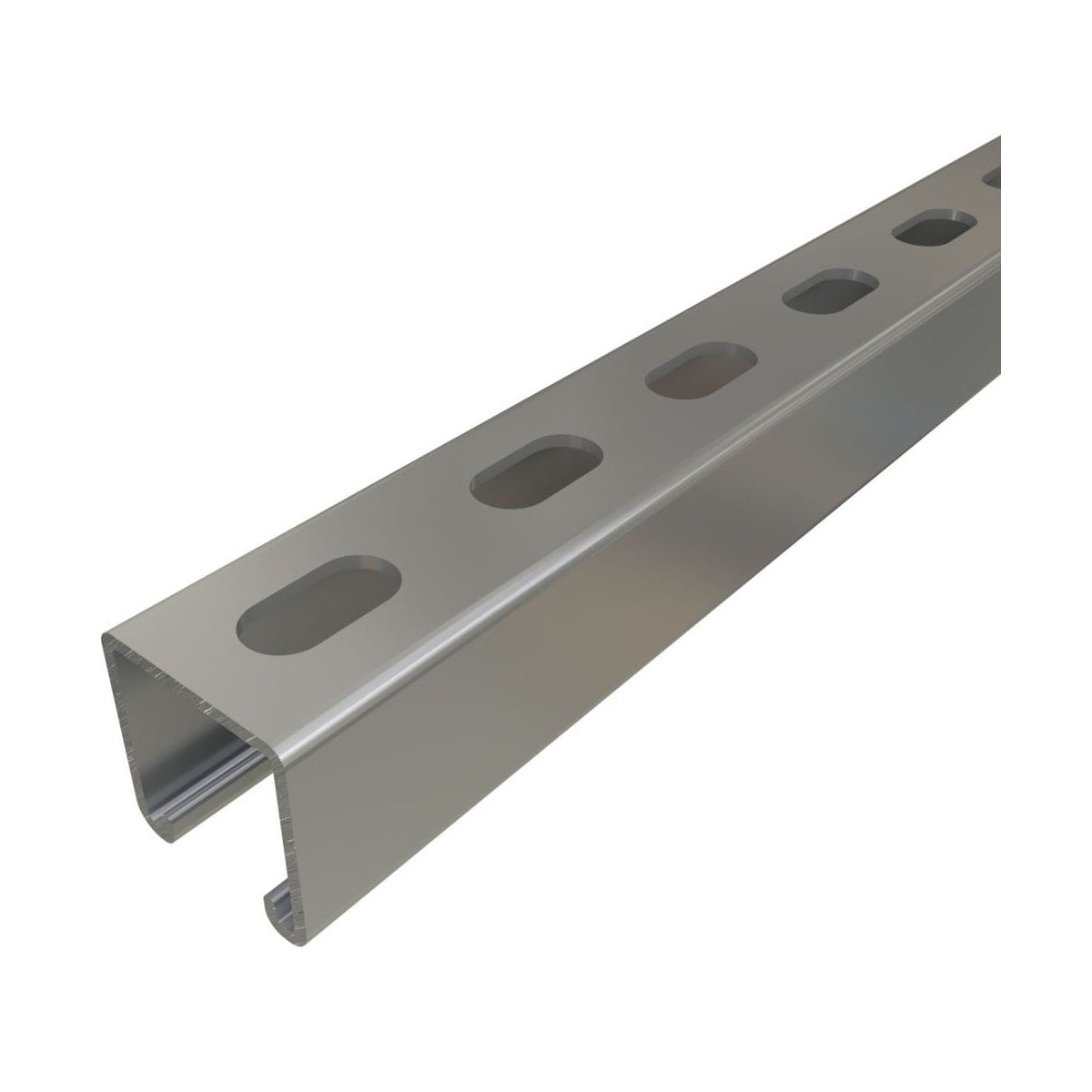

The PS-200-EH-10-PG is a steel channel designed for structural and support applications in electrical distribution and lighting solutions. Manufactured by Allied Building Products, this channel features elongated holes measuring 1 1/8 inches by 9/16 inches spaced on 2-inch centers, facilitating versatile mounting options. It is pre-galvanized (PG) to provide corrosion resistance suitable for indoor and outdoor environments, making it a reliable component for wire and cable management and support systems supplied by electrical distributors and switchgear suppliers.
Specifications
- Dimensions: 1 5/8 in. x 1 5/8 in.
- Gauge: 12 GA
- Hole Type: Elongated holes (1 1/8 in. x 9/16 in.) on 2 in. centers
- Weight: 185 lbs. per 100 ft.
- Finish: Pregalvanized (PG) zinc coating conforming to ASTM A653, Grade 90
- Manufacturer Part #: PS200EH10
- UPC: 702316501027
Features
- Pre-galvanized steel for corrosion protection via hot-dip zinc coating before roll forming
- Elongated holes enable flexible mounting and attachment options
- 12 gauge steel provides structural strength for support applications
- Standard PS 200 channel profile with uniform 1 5/8 inch dimensions
