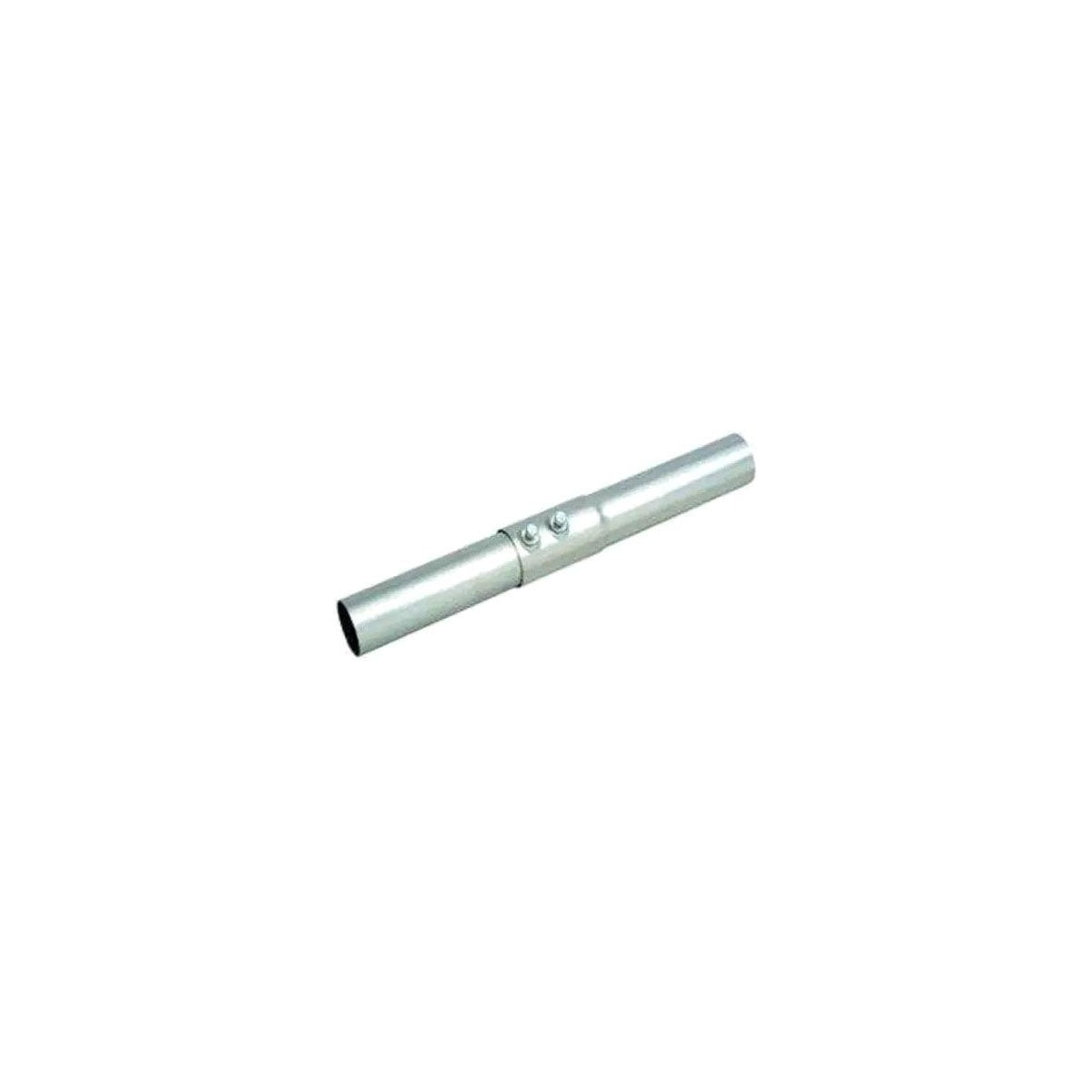

ALLIED TUBE AND CONDUIT 807940 EMT KWIK COMPRESSION 3IN 10 FT - Compression Electrical Metallic Tubing

The Allied Tube and Conduit 807940 Kwik Compression EMT is a 3-inch diameter, 10-foot length electrical metallic tubing designed for efficient conduit installations. This product features an integral steel compression coupling on one end, enabling fast two-step installation that reduces material and labor costs by up to 50%. It is manufactured from hot galvanized steel with a patented in-line Flo-Coat® process for durable exterior protection and includes an E-Z Pull® interior coating to facilitate smooth and easy wire pulling. The tubing offers excellent mechanical protection for conductors, ductility for easier bending, and optimal EMI shielding characteristics, making it suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear supply applications.

Specifications

• Trade Size: 3 inch (78 mm)
• Length: 10 ft (3.05 m)
• Outside Diameter: 3.500 in (88.90 mm)
• Nominal Wall Thickness: 0.072 in (1.83 mm)
• Material: Hot galvanized steel with patented in-line Flo-Coat¬Æ
• Weight: Approximately 2.63 lb
• UL Safety Standards: Listed to UL 797 and 514B
• Manufactured in accordance with ANSI C80.3
• UL Listed as Concrete-Tight
• Compatible with Kwik-Fit¬Æ Compression Couplings

Features

• Integral steel compression coupling on one end for fast two-step installation
• Eliminates the need to purchase, inventory, or install separate couplings
• Couplings seal tight, eliminating hours of taping seams
• E-Z Pull¬Æ interior coating provides a smooth raceway for easier wire pulling
• Hot galvanized steel exterior protection for long-lasting durability
• Excellent mechanical protection for conductors
• Ductility for faster and easier bending on-site
• Optimal EMI shielding characteristics
• Meets requirements for plenum use and complies with NEC and Chicago Electrical Code

Downloads & Links

• Spec Sheet
