ALLIED TUBE AND CONDUIT 363275 EMT/K 3IN 10 FT KWIK-FIT EMT - Electrical Metallic Tubing

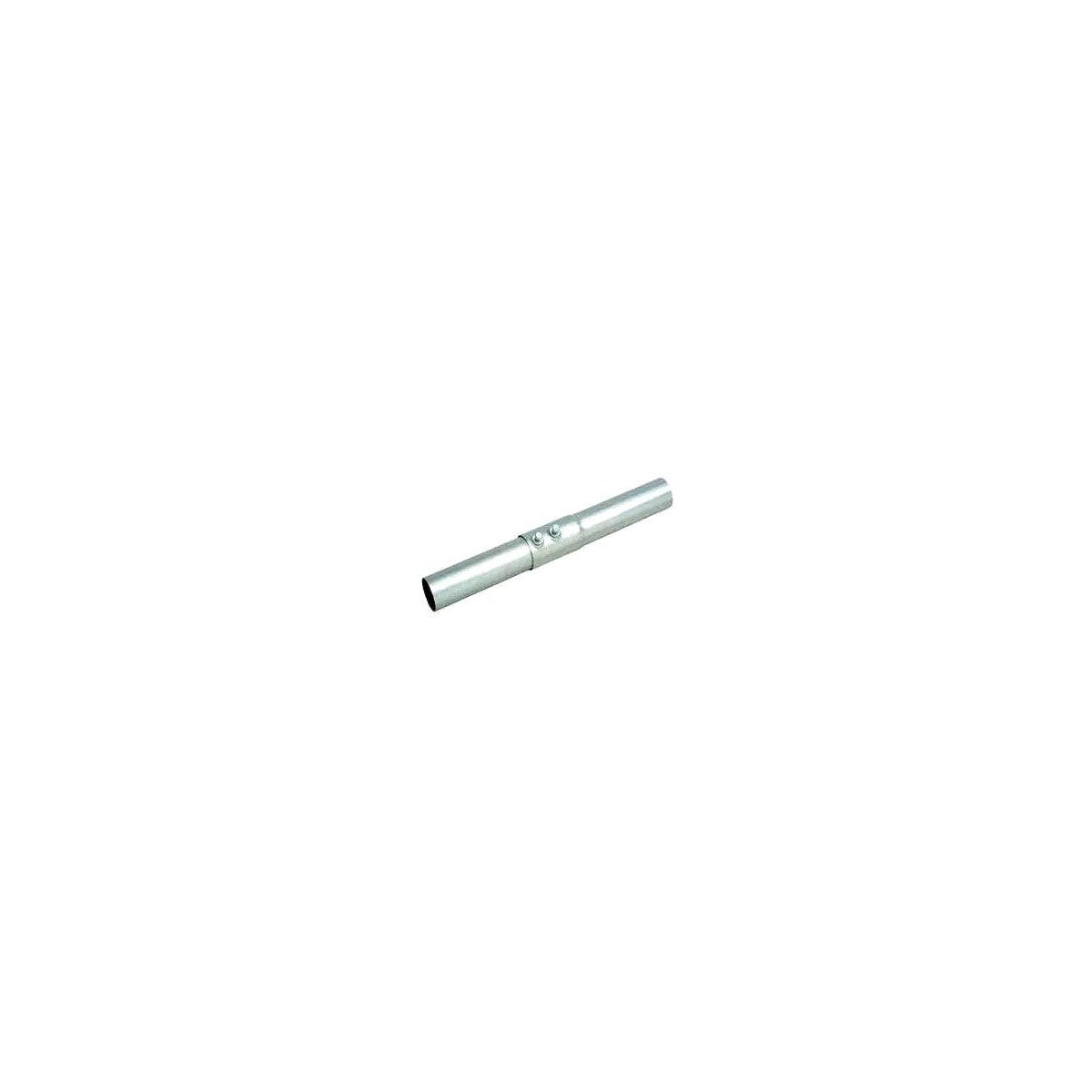

The Allied Tube and Conduit 363275 Kwik-Fit EMT is a 3-inch diameter, 10-foot length electrical metallic tubing designed for efficient and fast electrical conduit installations. This product integrates an integral steel set screw coupling on one end of each EMT length, enabling a quick two-step installation process that reduces material and labor costs by up to 50%. It is suitable for electrical distributors and lighting solutions providers requiring reliable wire and cable protection with optimal EMI shielding and mechanical durability.

Specifications

• Manufacturer: Allied Building Products
• Manufacturer Part #: 363275
• Trade Size: 3 inch (78 mm)
• Length: 10 ft (3.05 m)
• Outside Diameter: 3.500 in (88.90 mm)
• Nominal Wall Thickness: 0.072 in (1.83 mm)
• Approximate Weight: 2.63 lb (1.19 kg)
• Material: Hot galvanized steel with patented in-line Flo-Coat¬Æ exterior protection
• Interior Coating: E-Z Pull¬Æ for smooth wire pulling
• Compliance: UL Safety Standards 797 and 514B; ANSI C80.3; NEC¬Æ section 300.22 for Plenum Use
• UPC: 091111030284

Features

• Integral steel set screw coupling formed on one end for fast, two-step installation
• No need to purchase, inventory, or install separate couplings
• Material and labor savings up to 50%
• Hot-dip galvanized coating using patented Flo-Coat¬Æ process for long-lasting exterior protection
• E-Z Pull¬Æ interior coating provides a smooth raceway for easier wire pulling
• Excellent mechanical protection for conductors with ductility for faster, easier bending
• Optimal electromagnetic interference (EMI) shielding characteristics
• Listed for Plenum Use and meets applicable National Electrical Code (NEC¬Æ) requirements

Downloads & Links

• Spec Sheet
