ALLIED TUBE AND CONDUIT 363267 EMT/K 3 1/2IN 10 FT KWIK-FIT EMT
SKU: #90385
Part: #363267
UPC: 091111030291
ALLIED TUBE AND CONDUIT 363267 EMT/K 3 1/2IN 10 FT KWIK-FIT EMT
SKU: #90385
Part: #363267
UPC: 091111030291
Description

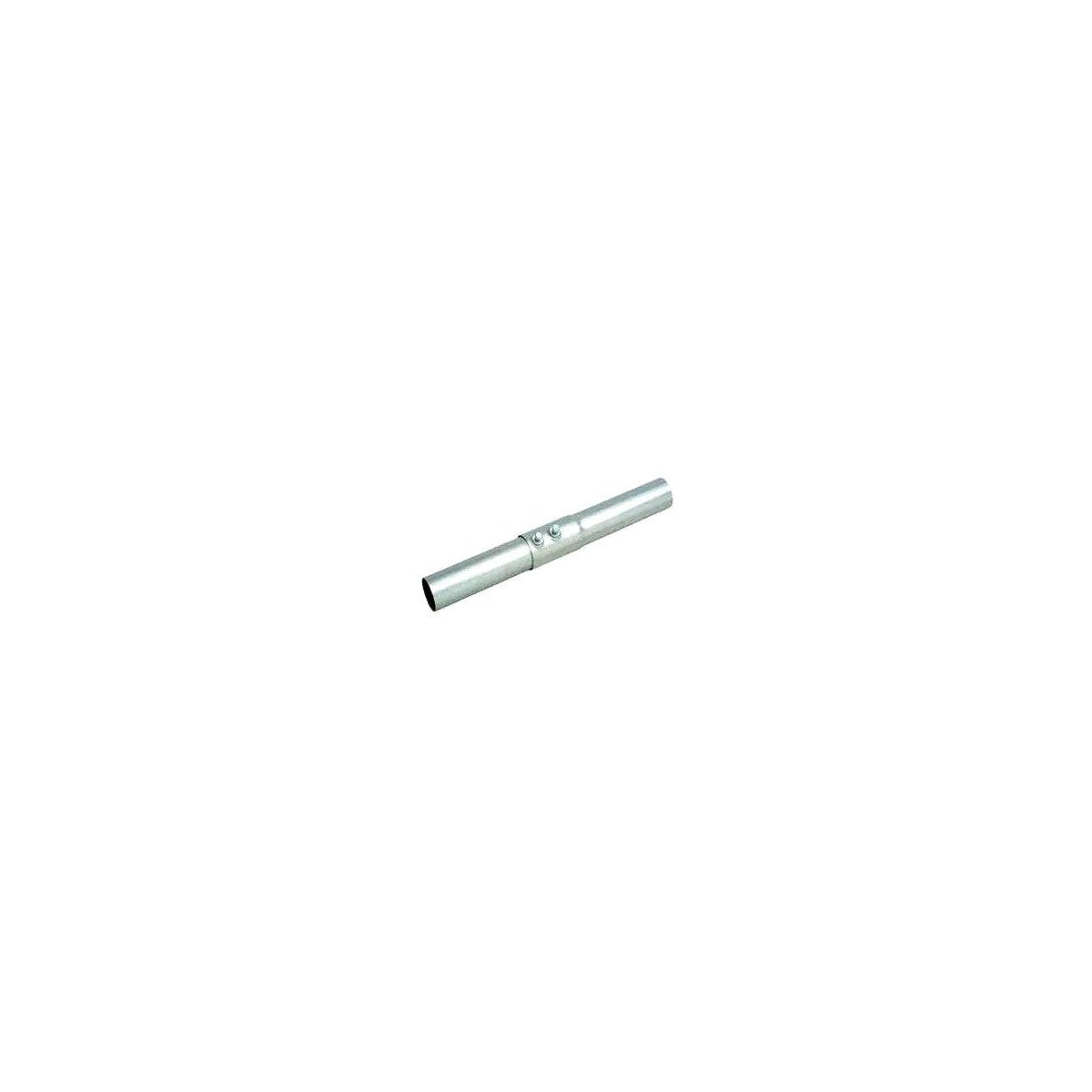

ALLIED TUBE AND CONDUIT 363267 EMT/K 3 1/2IN 10 FT KWIK-FIT EMT - Electrical Metallic Tubing
The ALLIED TUBE AND CONDUIT 363267 Kwik-Fit® EMT is a 3 1/2 inch, 10-foot length electrical metallic tubing designed for efficient electrical conduit installations. It features an integral steel set screw coupling formed on one end, enabling fast two-step installation that reduces material and labor costs by up to 50%. This product is suitable for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers looking for reliable conduit with excellent mechanical protection and ease of use.
Specifications
- Manufacturer: Allied Building Products
- Manufacturer Part #: 363267
- Trade Size: 3 1/2 inch (91 mm)
- Outside Diameter: 4.000 in (101.60 mm)
- Nominal Wall Thickness: 0.083 in (2.11 mm)
- Approximate Weight: 3.490 lb (1.58 kg) per 10 ft length
- Length: 10 ft (3.05 m)
- Coating: Hot galvanized steel with patented in-line Flo-Coat® process
- Interior Coating: E-Z Pull® for smooth wire pulling
- UL Listings: UL Safety Standards 797 and 514B
- Manufactured in accordance with ANSI C80.3
- UPC: 091111030291
Features
- Integral steel set screw coupling on one end for quick installation
- Eliminates the need to purchase, inventory, or install separate couplings
- Fast two-step installation process reduces labor time and costs
- Hot galvanized steel with Flo-Coat® for durable exterior protection
- E-Z Pull® interior coating provides a smooth raceway for easier wire pulling
- Excellent mechanical protection for conductors
- Ductility allows for faster and easier bending
- Optimal EMI shielding characteristics
- Listed for plenum use and compliant with National Electrical Code (NEC) requirements
