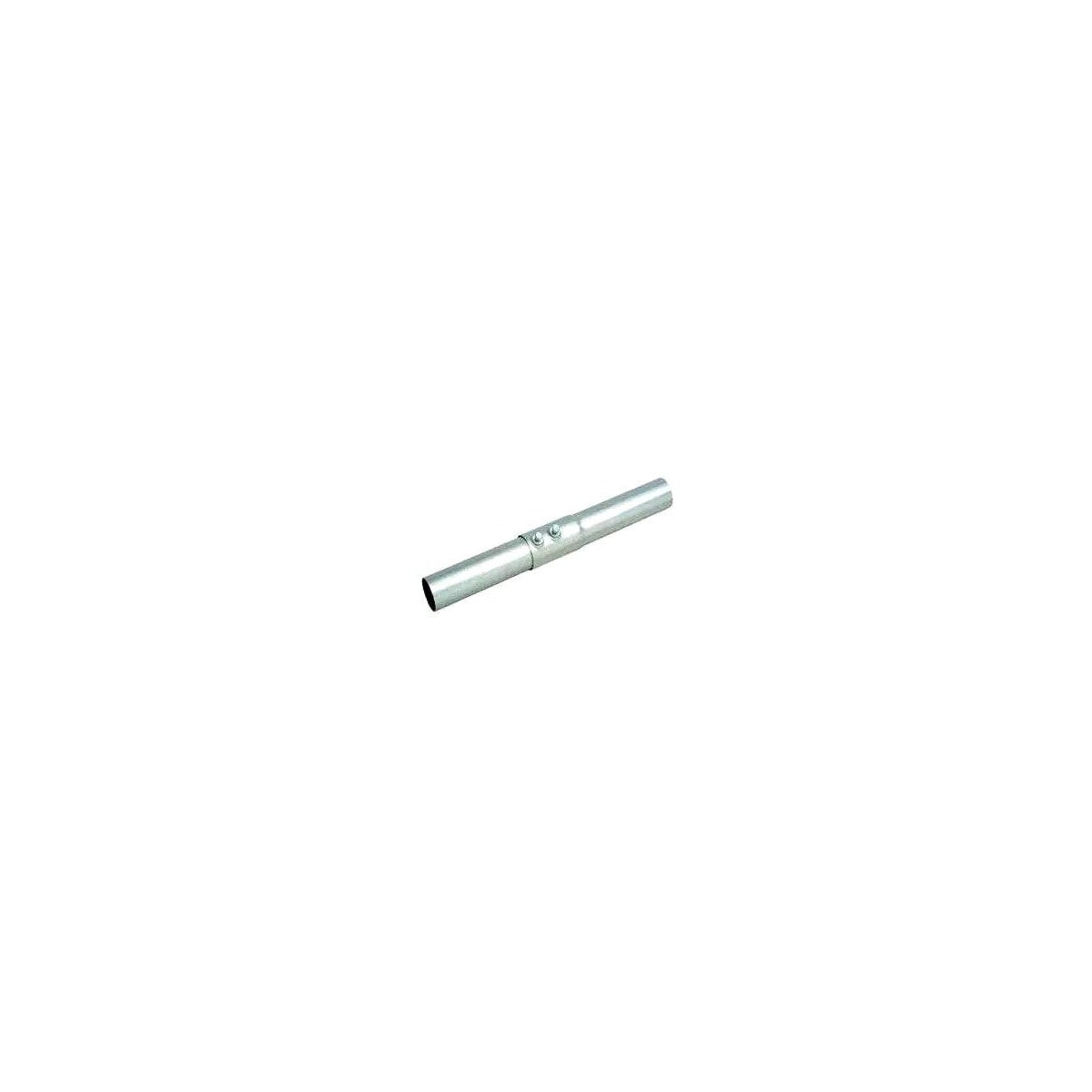

ALLIED TUBE AND CONDUIT 363242 EMT/K 2 1/2IN 10 FT KWIK-FIT EMT - Electrical Metallic Tubing

The ALLIED TUBE AND CONDUIT 363242 Kwik-Fit EMT is a type of Electrical Metallic Tubing designed for fast and efficient installation in electrical distribution and lighting solutions. It features an integral steel set screw coupling formed on one end of each 10 ft length, enabling a two-step installation process that reduces labor and material costs by up to 50%. This product is suitable for wire and cable protection in commercial and industrial applications, offering excellent mechanical protection, ductility for easier bending, and optimal EMI shielding characteristics. It is manufactured with hot galvanized steel using the patented in-line Flo-Coat® process for durable exterior protection and includes an E-Z Pull® interior coating for smoother wire pulling.

Specifications

• Manufacturer: Allied Building Products
• Manufacturer Part #: 363242
• Trade Size: 2 1/2 inch (63 mm)
• Length: 10 ft (3.05 m)
• Outside Diameter: 2.875 in (73.03 mm)
• Nominal Wall Thickness: 0.072 in (1.83 mm)
• Approximate Weight: 216 lb per 100 ft (98.0 kg per 30.5 m)
• Product Weight: 2.16 lb
• UPC: 091111030277
• Listed to UL Safety Standards 797 and 514B
• Manufactured in accordance with ANSI C80.3

Features

• Integral steel set screw coupling formed on one end of each EMT length
• Fast two-step installation process reduces labor and material costs by up to 50%
• No additional couplings required to purchase, inventory, or install
• Hot galvanized steel with patented in-line Flo-Coat® for long-lasting exterior protection
• E-Z Pull® interior coating provides a smooth raceway for easier wire pulling
• Excellent mechanical protection for conductors
• Ductility allows for faster and easier bending
• Optimal EMI shielding characteristics
• Allowed for plenum use and meets NEC and Chicago Electrical Code requirements

Downloads & Links

• Spec Sheet
