All-Thread Rod PVC Coated Steel Rod for Electrical Distributor

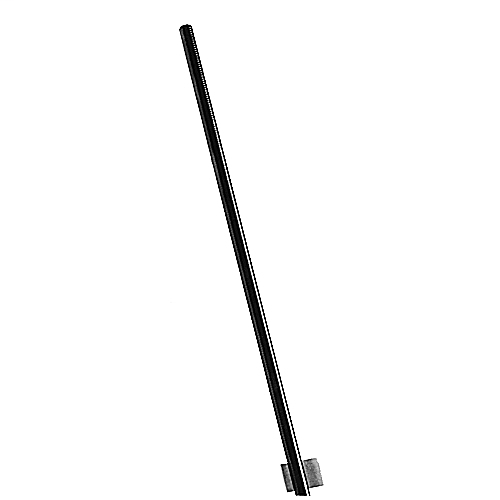

This Ocal All-Thread Rod is a PVC-coated steel rod designed for use with conduit hangers and strut to suspend overhead conduit runs. It is suitable for electrical distributors and lighting solutions requiring durable wire and cable support components. The rod provides corrosion-resistant protection with a nominal 0.015 in. PVC coating and is engineered for structural applications in switchgear supplier environments.

Specifications

• Material: Steel
• Finish: PVC Coated
• Diameter: 3/8 in (9.53 mm)
• Length: 3 ft (0.91 m)
• Application: For use with conduit hangers and strut to suspend overhead conduit runs
• Box Quantity: 1
• Manufacturer: Ocal
• Manufacturer Part #: THR3/8X3-G
• Product Weight: 0.9 lb
• UPC: 704508412067

Features

• Nominal 0.015 in. (15 mils) PVC coating for corrosion resistance
• Gray color standard with custom colors available on request
• Continuously threaded rod for secure attachment with conduit hangers and strut
• Designed for structural support in electrical and lighting installations
• Compatible with standard conduit hanger and strut systems
